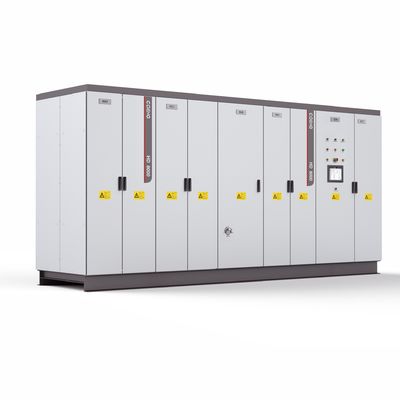

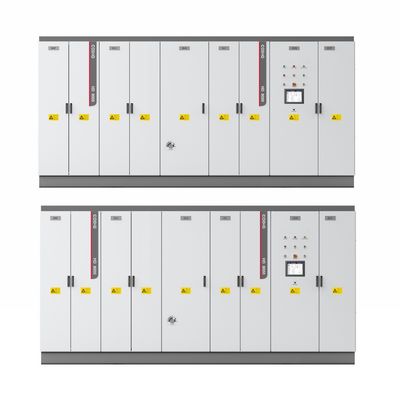

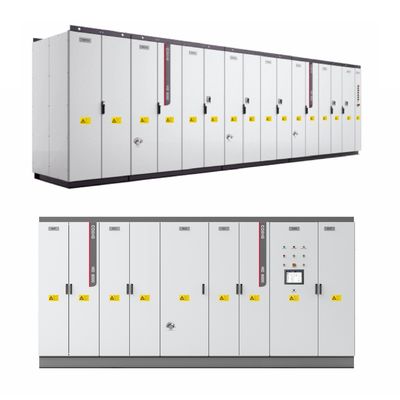

Medium-Voltage Engineering Inverter VFD 45 Hz ~ 66 Hz IP54 Liquid Cooling
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE |
| Model Number | HD8000 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden Case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage Of Grid Side | 2: 1900V 3: 3300V 6: 6600V A: 10kV | Rated Voltage Of Motor Side | 3: 3300V 6: 6600V A: 10kV |
|---|---|---|---|
| Power | 10: 10MVA | Rectification Method | P: PWM D: Diode Basic Rectification |
| Common Bus Rectification Method | Blank: Single Rectification 2: Double Rectification | Common Bus Inverter Method | Blank: Single D: Double Inverter T: Triple Inverter |
| Highlight | Medium-Voltage Engineering Inverter VFD,Liquid Cooling Engineering Inverter VFD,IP54 Engineering Inverter VFD |
||
Product Description
PERFORMANCE CHARACTERISTICS
Reliable Engineering Design
• IGCT fault pre-judgment and bridge arm shoot-through protection technologies
• Redundancy and error tolerance design for key components
• Use of double-sided pressure-contact power devices
• IP54 protection design and C4-M corrosion resistance design
Modular Design for Easy Maintenance
• Modular design for key components
• Intelligent fault diagnosis system for fast fault locating
• With only 15 minutes required for phase module assembly/disassembly
Excellent Control Performance
• Four-quadrant operation capability
• Supporting various types of motors
• Fast dynamic torque response and torsional vibration suppression
• Segmented synchronous modulation of motors
• Selective harmonic elimination pulse width modulation (SHEPWM)

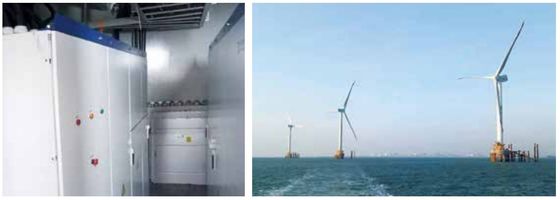

High Adaptability
• Single-motor/Multi-motor drive configuration
• High-altitude design: No need for derating within the altitude of 2,000 m
• Grid adaptability design, enabling the system to adapt to grid unbalance, grid harmonics, grid frequency flickering, transient grid voltage drops, and high/low voltage ride through
Communication Protocols & Commissioning Software
• Supporting customizable communication protocols through optional modules

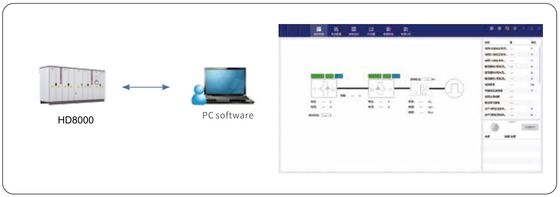

• Robust monitoring system for real-time monitoring of internal data, waveforms, and other information
• hopeInsight Background Rapid Commissioning Software
Internationally Leading Technologies
• A High-Power IGCT AC-DC-AC Variable Frequency Speed Regulating Device" and "Key Technologies and Applications of Variable Frequency Speed Regulating System" passed the scientific and technological achievement appraisal and the result is internationally advanced, with some technologies appraised as internationally leading
MAIN PARAMETERS

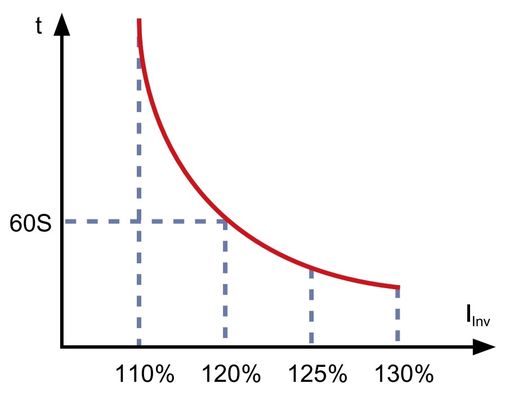

| Model | HD8000 Series Medium-Voltage Engineering Inverter | |
| Basic rectifier | Input frequency | 45 Hz ~ 66 Hz |
| Fundamental power factor | ≥ 95% (based on 12-pulse and above, rated current, | |
| and 2% current input reactor) | ||
| PWM rectifier | Input frequency | 45 Hz ~ 66 Hz |
| Power factor | 1 (can be set continuously) | |
| Protection functions | Overload protection, overheating protection, short circuit protection, | |
| fault prediction | ||
| Inverter | Output voltage | 1: 1.65 kV; 2: 2.4 kV; 3: 3.3 kV; 4: 4.16 kV; 6: 6.6 kV; |
| A: 10 kV; B: 13.8 kV; C: 19.8 kV | ||
| Output frequency | 0 ~ 110 Hz (higher output frequencies can be customized as required) | |
| Speed stability | OLVC: 0.2% CLVC: 0.01% | |
| Speed fluctuation | OLVC: 0.4% CLVC: 0.2% | |
| Starting torque | OLVC: 150% CLVC: 200% | |
| Torque control | V/F: Supported OLVC: Supported CLVC: Supported | |
| Torque accuracy | OLVC: 5% CLVC: 2% (customizable) | |
| Torque response time | ≤ 5 ms | |
| Speed response time | OLVC: 100 ms CLVC: 100 ms | |
| Dynamic speed drop equivalent | OLVC: 0.5%*s CLVC: 0.25%*s | |
| System | Efficiency | Two-quadrant: ≥ 99% (excluding the rectifier transformer) |
| Four-quadrant: ≥98.5% (excluding the rectifier transformer) | ||
| Temperature | Water inlet temperature ≤ 35°C (external water) | |
| Altitude | ≤ 2000m (derating required for 2000m ~ 4000m) | |
| IP rating | IP54 | |
| Cooling mode | Liquid cooling | |
| Corrosion resistance class | C4-M | |
