Modular Design Variable Frequency Drives 45Hz-66Hz IP54 30MWA(single), 60MVA(parallel)

VFD Motor Inverter Variable Frequency Converter for Single and Multiple phase High Power Drive System

VFD Motor Inverter Variable Frequency Converter Product Description:

The HD8000 series VFD is a high-power drive system that consists of an AC-DC-AC converter and a DC-AC common DC bus multi-axis motor drive unit. It is capable of delivering a maximum power of 30MVA for a single machine and 60MVA during parallel operation. The system is designed with modular hardware and engineering software, allowing it to operate effectively in various complex conditions.

The HD8000 series VFD utilizes presspack IGCT (Insulated Gate Bipolar Transistor) and diode technology, along with a liquid cooling method. The entire system complies with the IP54 protection level, providing excellent environmental adaptability, high reliability, efficient heat dissipation, and a compact form factor. It offers both two-quadrant and four-quadrant rectification solutions, enabling precise control over motor speed and torque.

The AC-DC-AC converter structure of the HD8000 series VFD converts the incoming AC power into DC power and then converts it back to AC  power for the motor. The AC-DC converter converts the AC grid power into DC power, while the DC-AC converter supplies the motor with the  required AC power. This configuration allows for precise control of motor parameters.

The modular design of the HD8000 series VFD provides flexibility and scalability, allowing users to select different modules based on their specific requirements. The engineering software offers extensive parameter settings and debugging functions, simplifying system setup and operation.

In summary, the HD8000 series VFD is a powerful high-power drive system suitable for a wide range of applications. Whether in industrial production or other fields, it provides reliable drive and control capabilities to meet the demands of complex operating conditions. With its advanced features and modular design, it offers efficient performance, environmental adaptability, and high reliability.

VFD Motor Inverter Variable Frequency Converter Features:

• Characteristics: The HD8000 series VFD possesses the following characteristics: It can drive single or multiple axes, has IP54 protection, and offers both two-quadrant and four-quadrant operation.
• Design: The VFD incorporates a modular design, allowing for flexibility and scalability in system configuration.
• Rectification: It employs various rectification methods, including multi-pulse basic rectification, smart rectification, and PWM (Pulse Width Modulation) rectification.
• Voltage rate: The VFD supports different voltage ratings, including 1900V/3000V (3300V), 6000V (6600V), and 10000V.
• Maximum power: The VFD can deliver a maximum power output of 30MVA for a single machine and 60MVA when operated in parallel.
• Compatible motors: The VFD is compatible with various types of motors, including asynchronous induction motors, permanent magnet synchronous motors, and electrically excited synchronous motors.
• Control method: It offers multiple control methods, such as V/F (Voltage-to-Frequency) control, closed-loop vector control with sensor feedback, and open-loop vector control without sensor feedback.
• Cooling: The VFD utilizes a water cooling system to maintain optimal operating temperatures and ensure efficient heat dissipation.

VFD Motor Inverter Variable Frequency Converter Technical Parameters:

VFD Motor Inverter Variable Frequency Converter Applications:

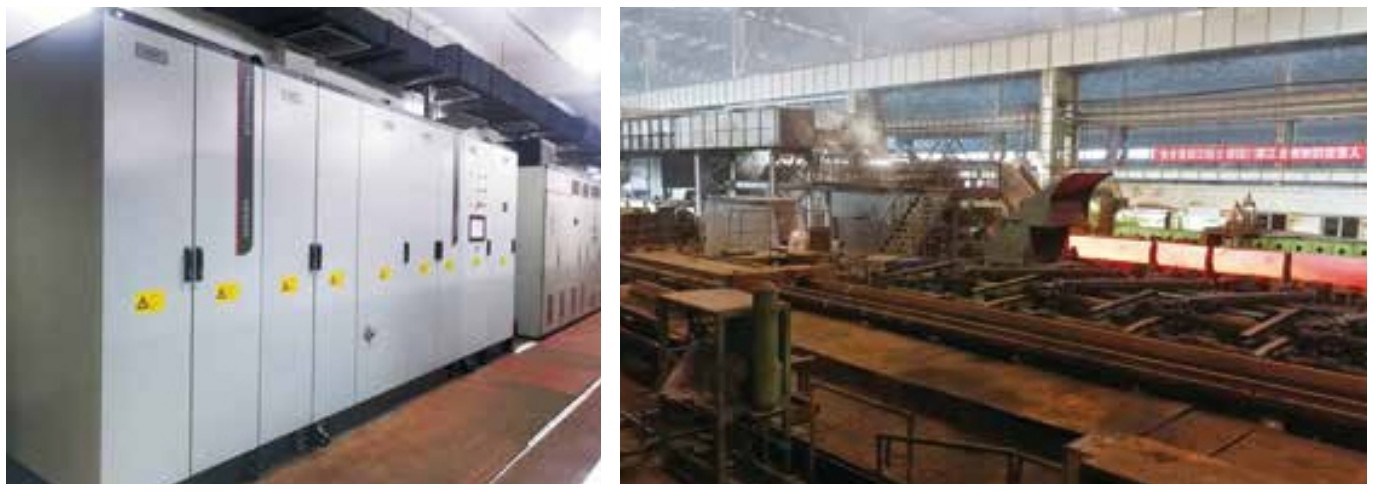

• Metallurgical engineering: The HD8000 series VFD finds applications in metallurgical engineering processes, providing efficient control and drive solutions for various equipment used in the metallurgical industry.

Oil and gas transportation: The VFD is utilized in the oil and gas industry for controlling and driving pumps, compressors, and other equipment involved in the transportation of oil and gas.

• Testing platform: The VFD is employed in testing platforms where precise control and drive capabilities are required for testing and analysis equipment.

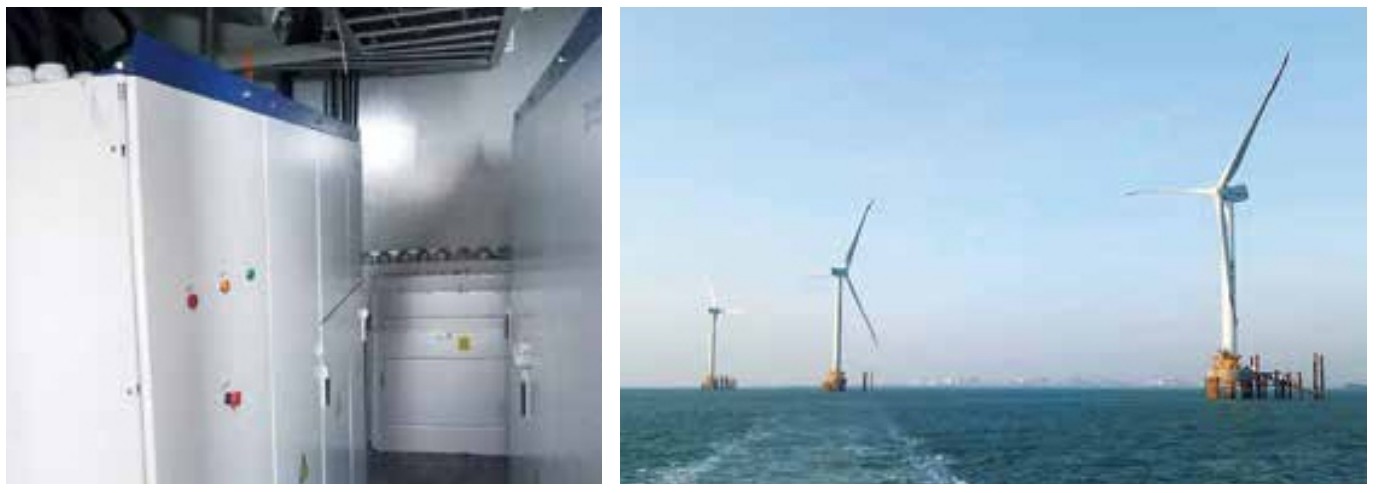

• Renewable energy: The VFD plays a crucial role in renewable energy systems, enabling efficient control and conversion of power from renewable sources such as wind turbines and solar panels.
• Rail transportation: The VFD is used in rail transportation systems for controlling and driving electric locomotives and other rail vehicles, ensuring reliable and efficient operation.
• Mining & lifting: The VFD finds applications in mining and lifting operations, providing precise control and drive solutions for equipment such as hoists, conveyors, and mining machinery.
• Marine equipment: The VFD is utilized in marine applications for controlling and driving various equipment onboard ships and vessels, ensuring optimal performance and energy efficiency.
• LNG (Liquefied Natural Gas): The VFD is employed in LNG processing and transportation, providing reliable control and drive solutions for pumps, compressors, and other equipment involved in the LNG supply chain.
• Power source: The VFD serves as a critical component in power generation systems, providing control and drive capabilities for generators and other power generation equipment.

VFD Motor Inverter Variable Frequency Converter Support and Services:

The Variable Frequency Converter product technical support and services include:

• Installation, Configuration, and Startup Assistance: We provide comprehensive support in installing, configuring, and starting up our products, ensuring a smooth and efficient setup process.
• Troubleshooting and Issue Diagnosis: Our team is equipped to handle troubleshooting and diagnose any issues that may arise, ensuring prompt resolution and minimizing downtime.
• Repair and Maintenance Services: We offer reliable repair and maintenance services to keep your equipment in optimal condition, maximizing its lifespan and performance.
• Software Updates and Upgrades: We provide regular software updates and upgrades to enhance the functionality and performance of our products, ensuring you have access to the latest features and improvements.
• Technical Training and Support: We offer technical training programs to equip your team with the necessary skills and knowledge to effectively operate and maintain our products. Our support team is also available to provide ongoing assistance and guidance.​
• 24/7 Customer Service: Our dedicated customer service team is available 24/7 to address any inquiries, provide assistance, and ensure that your needs are promptly met, offering peace of mind and uninterrupted support.
