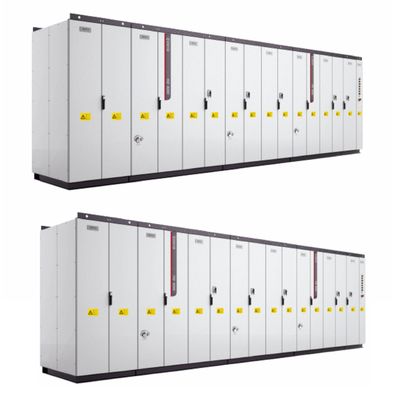

Water Cooling Variable Frequency Converter VFD For 3300V Medium Voltage Engineering System
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HD8000-3310 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mechanical Anti Corrosion | C4-M | Applicantion | Metallurgical Engineering, Oil And Gas Transportation, Testing Platform, Renewable Energy, Rail Transportation, Mining&lifting, Marine Equipment, LNG, Power Source, Energy Storage |
|---|---|---|---|
| Product Design | Modular Design | Rectification Method | PWM, Diode Basic Rectification |
| Mechanical Cooling | Water Cooling | Maximum Power | 30MWA(single), 60MVA(parallel) |
| Product Name | Medium Voltage Engineering VFD System | HMI | 15.6 Inch Industrial-grade Touch LCD Screen |
| Highlight | Water Cooling Variable Frequency Converter,Variable Frequency Converter VFD,3300V VFDConverter |
||
Product Description
Water Cooling Variable Frequency Converter VFD for 3300V Medium Voltage Engineering System
Water Cooling Variable Frequency Converter VFD Product Description:
With a mechanical IP protection rating of IP54, this system is designed to withstand harsh environmental conditions and protect against dust and water ingress. Its water cooling system ensures that it remains cool even during extended periods of use, making it an ideal solution for applications where high temperatures are a concern.
The Medium Voltage Engineering VFD System comes equipped with a 15.6 Inch Industrial-grade Touch LCD Screen, making it easy to monitor and control. This high-quality HMI provides users with an intuitive interface that allows for quick and easy adjustments to the system's settings.
This variable frequency converter system is capable of handling a range of motor voltages, including 3300V, 660V, and 10kV. This makes it suitable for use in a wide range of applications, from small-scale projects to large-scale industrial applications.
Overall, the Medium Voltage Engineering VFD System is a highly reliable and efficient solution for a variety of applications. Whether you're working in the metallurgical industry, the oil and gas transportation industry, or any other industry that requires reliable and efficient power, this system is the perfect choice. With its mechanical IP protection, water cooling system, and industrial-grade HMI, this system is designed to withstand even the toughest conditions and provide reliable performance for years to come.
Water Cooling Variable Frequency Converter VFD Engineering Design Concept Features:
- IP54 protection so that the system has super strong environmental adaptability
- Redundant design of key components to reduce the probability of system downtime
- Advanced IGCT and thyristor which makes the power system ultra-high reliability
- Adopting double presspack , excellent heat dissipation performance which makes the system with ultra-high power density
· First-class protection fault system
· Powerful monitoring system to provide complete data for customers
· Plentiful optional accessories
Water Cooling Variable Frequency Converter VFD Technical Parameters:
|
Technical Parameter |
Value |
|---|---|
|
HMI |
15.6 Inch Industrial-grade Touch LCD Screen |
|
Common Bus Rectification Method |
Single, Double Inverter, Triple Inverter |
|
Rate Voltage of Grid Side |
1900V, 3000V(3300V), 6000V(6600V),1000V |
|
Environment Altitude |
≤4000mm(2000m~4000m De-rating) |
|
Maximum Power |
30MWA(single), 60MVA(parallel) |
|
Supports Field-bus |
Profibus, Profinet, CANopen, DeviceNet, ControlNet, Modbus RTU, Industry Ethercat, Profinet IO, EtherNet/IP, Modbus TCP |
|
Product Name |
Medium Voltage Engineering VFD System |
|
Rate Voltage of Motor Side |
3300V, 660V,10kV |
|
Rectification Method |
PWM, Diode Basic Rectification |
|
Overload Curve |
110%@ Rated Current, 120%@ Rated Current 60s |
|
Control Method |
V/F, close-loop vector control with sensor, open-loop vector control without sensor |
|
Basical Rectification Power Factor |
≥0.95 (Rated current, equipped with 2% AC input reactor) |
|
Mechanical IP Protection |
IP54 |
Water Cooling Variable Frequency Converter VFD Applications:
- Metallurgical Engineering: In metallurgical processes, the converter plays a crucial role in controlling and adjusting the speed of motors used in various stages of production, such as rolling mills, smelting furnaces, and metal cutting machines.
- Oil and Gas Transportation: The converter is employed in oil and gas pipelines and pumping stations to regulate the speed and ensure the efficient transportation of petroleum products over long distances.
- Testing Platforms: Testing platforms, such as those used in research laboratories or quality control facilities, utilize the converter to control the speed and performance of test equipment, ensuring accurate and reliable results.
- Renewable Energy: The converter is integral to renewable energy systems, including wind turbines and solar power installations, where it converts and regulates the generated energy to match grid requirements, maximizing the efficiency and stability of renewable power generation.
- Rail Transportation: In railway applications, the converter is utilized in locomotives and trains to control the speed and torque of traction motors, allowing for smooth acceleration, deceleration, and efficient energy usage.
- Mining and Lifting: The converter plays a vital role in mining operations by controlling the motors used in heavy machinery, such as excavators, haul trucks, and conveyor belts, ensuring safe and efficient material extraction and transportation.
- Marine Equipment: The converter is employed in various marine applications, including propulsion systems, thrusters, and auxiliary equipment, enabling precise control of motor speed and power consumption in ships and offshore platforms.
- LNG (Liquefied Natural Gas): The converter is utilized in LNG plants and terminals to regulate the speed and power of compressors, pumps, and other equipment involved in the liquefaction, storage, and transportation of natural gas.
- Power Sources and Energy Storage: The converter is used in power generation plants, including conventional and renewable energy sources, to control the output of generators and synchronize them with the electrical grid. Additionally, it plays a crucial role in energy storage systems, such as batteries and capacitors, allowing efficient charging and discharging of stored energy.
Water Cooling Variable Frequency Converter VFD Support and Services:
Our Variable Frequency Converter product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our technical support team is available to answer any questions you may have regarding installation, configuration, and troubleshooting. In addition, we offer maintenance and repair services to keep your product running smoothly and efficiently. Our team of experts can also provide customized training to ensure proper usage and handling of the product. Contact us for more information on our available support and services.
