60MVA Variable Frequency Converter With IP54 Protection Synchronous Asynchronous Motor
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HD8000-6640 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Maximum Power | 60MVA(parallel) | Mechanical IP Protection | IP54 |
|---|---|---|---|
| Environment Temperature | Inlet Temperature≤40 | Environment Altiude | ≤4000mm(2000m~4000m De-rating) |
| HMI | 15.6 Inch Industrial-grade Touch LCD Screen | Overload Curve | 110%@ Rated Current, 120%@ Rated Current 60s |
| Supports Field-bus | Profibus, Profinet, CANopen, DeviceNet, ControlNet, Modbus RTU, Industry Ethercat, Profinet IO, EtherNet/IP, Modbus TCP | Rate Voltage Of Grid Side | 6000V(6600V) |
| Highlight | 60MVA Variable Frequency Converter,Variable Frequency Converter Motor,frequency variable |
||
Product Description

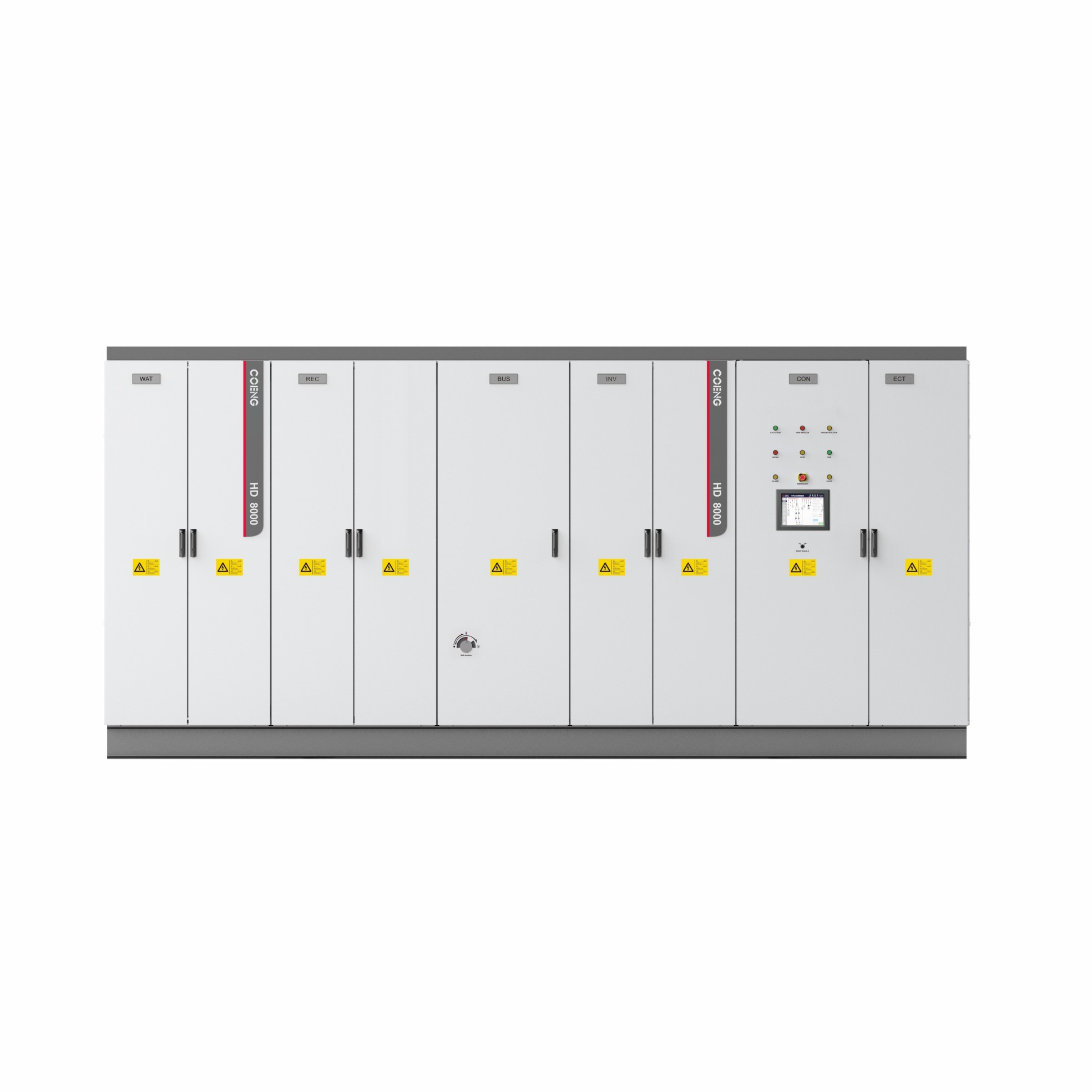

60MVA Variable Frequency Converter with IP54 Protection for Synchronous and Asynchronous Motor
60MVA Variable Frequency Converter Product Description:
The HD8000 series VFD is a high-power drive system that incorporates an AC-DC-AC converter and a DC-AC common DC bus multi-axis motor drive unit. With a maximum power output of 30MVA for a single machine and 60MVA for parallel operation, it delivers exceptional performance.
One of the key strengths of the HD8000 series VFD lies in its modular hardware and engineering software design, which allows it to operate effectively in a wide range of complex conditions. This versatility makes it suitable for diverse applications.
In terms of components, the HD8000 series VFD utilizes presspack IGCT (Integrated Gate-Commutated Thyristor) and Diode technology, ensuring efficient and reliable power conversion. Additionally, the liquid cooling method employed by the system enhances its heat dissipation capabilities. The entire machine is designed to meet the IP54 protection level, guaranteeing its durability and environmental adaptability.
Furthermore, the HD8000 series VFD offers compact dimensions, making it a space-saving solution. Its two-quadrant and four-quadrant rectification solutions enable flexible and precise control of the power flow.
Overall, the HD8000 series VFD is a cutting-edge, high-power drive system that excels in performance and adaptability. Its modular design, advanced components, and efficient cooling contribute to its reliability, excellent heat dissipation, and compact size, making it an ideal choice for a variety of demanding applications.
60MVA Variable Frequency Converter Features:
- High-Quality HMI: The Variable Frequency Converter features a large 15.6-inch industrial-grade touch LCD screen, providing a user-friendly interface for seamless operation and control.
- Robust Mechanical Protection: With an IP54 rating, the product offers excellent protection against dust and water ingress, ensuring reliable performance even in harsh environments.
- Modular Design: The Variable Frequency Converter is designed with a modular approach, allowing for easy customization and scalability to meet specific customer requirements. This design concept enhances flexibility and adaptability.
- Efficient Cooling System: The product employs a water cooling mechanism, which efficiently dissipates heat generated during operation, ensuring optimal performance and extending the lifespan of the equipment.
- Strong Anti-Corrosion Capability: The Variable Frequency Converter is built to withstand corrosive environments with a C4-M anti-corrosion rating, making it suitable for applications in industries such as marine, petrochemical, and offshore operations.
- Enhanced Power Factor: The product boasts a basical rectification power factor of ≥0.95 when equipped with a 2% AC input reactor. This feature helps improve energy efficiency and reduces power consumption, making it an environmentally friendly choice.
60MVA Variable Frequency Converter Technical Parameters:
|
Attribute |
Value |
|---|---|
|
Mechanical IP protection |
IP54 |
|
Environment temperature |
Inlet Temperature≤40 |
|
Environment Altitude |
≤4000mm(2000m~4000m De-rating) |
|
Overload curve |
110%@ Rated Current, 120%@ Rated Current 60s |
|
Rate voltage of motor side |
3300V, 660V,10kV |
|
HMI |
15.6 Inch Industrial-grade Touch LCD Screen |
|
Rate voltage of grid side |
1900V, 3000V(3300V), 6000V(6600V),1000V |
|
Supports field-bus |
Profibus, Profinet, CANopen, DeviceNet, ControlNet, Modbus RTU, Industry Ethercat, Profinet IO, EtherNet/IP, Modbus TCP |
|
Rectification method |
PWM, Diode Basic Rectification |
|
Common bus rectification method |
Single, Double Inverter, Triple Inverter |
|
Basical rectification Input Voltage |
3300V, 1900V, 10kV, 6600V, 10kV |
|
Mechanical Cooling |
Water cooling |
|
Control method |
V/F, close-loop vector control with sensor, open-loop vector control without sensor |
60MVA Variable Frequency Converter Applications:
Our product finds wide applications in various industries such as metallurgical engineering, oil and gas transportation, testing platforms, renewable energy, rail transportation, mining and lifting operations, marine equipment, LNG (liquefied natural gas) industry, power sources, and energy storage systems.
60MVA Variable Frequency Converter Support and Services:
The Variable Frequency Converter product technical support and services include:
- Installation and Commissioning Support: We provide assistance with product installation and commissioning to ensure a seamless setup process.
- Technical Support and Fault Diagnosis: Our team of experts offers technical assistance and accurate fault diagnosis to quickly resolve any issues that may arise.
- Repair and Maintenance Services: We offer professional repair and maintenance services to keep your product functioning at its best.
- Training and Education: We provide comprehensive training programs to equip users with the knowledge and skills needed to effectively operate and maintain the product.
- Documentation and Software Access: Access our product documentation and conveniently download software updates to stay up-to-date with the latest resources.
- Upgrade and Replacement Services: We offer options for product upgrades to enhance performance, as well as replacement services to ensure continued functionality and compatibility.
Our customer service representatives are available to assist you with any questions or concerns you may have regarding your Variable Frequency Converter product. Contact us for more information.
