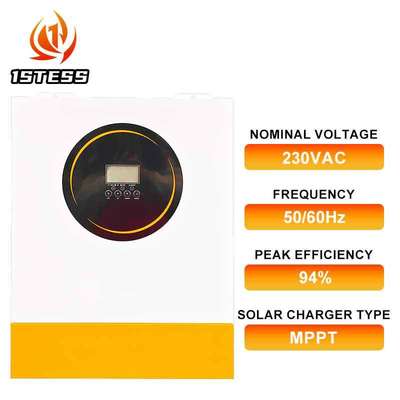

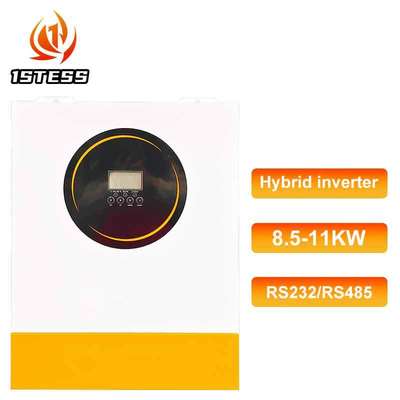

Hybrid Solar Inverter 8.5kw 11kw 48V Single Phase Pure Sine Wave Off Grid Solar Inverter MPPT with Lithium Battery Optimization Feature
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | EM (PV60-500VDC) 11000-48L |
| Document | EM8500-48L 11000-48L.pdf |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton, pallet |
| Delivery Time | 10-30working days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 20000piece/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 540*415*122mm | Battery Voltage | 48V |
|---|---|---|---|
| Input Voltage | 230vac | OEM | Accept OEM |
| Inverter Type | Hybrid Solar Inverter | Output Type | Single, Pure Sine Wave |
| Gross Weight | 15kg | ||
| Highlight | 8.5kw hybrid solar inverter with MPPT,11kw off grid solar inverter lithium optimized,48V pure sine wave solar inverter |
||
Product Description
| MODEL | EM8500-48L | EM11000-48L |
|---|---|---|
| Capacity | 8.5KVA/8.5KW | 11KVA/11KW |
| Maximum PV input power | 10000W | 11000W |
| Lithium Battery Activation | YES ( By PV or Utility) | YES ( By PV or Utility) |
| Lithium Battery Communication | YES(RS485) | YES(RS485) |

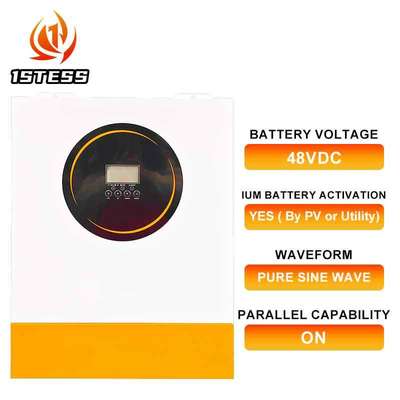

| Battery Voltage | 48VDC | 48VDC |
| Solar Charger TYPE | MPPT | MPPT |
| Communication Interface | RS232/RS485/DRY CONTACT | RS232/RS485/DRY CONTACT |

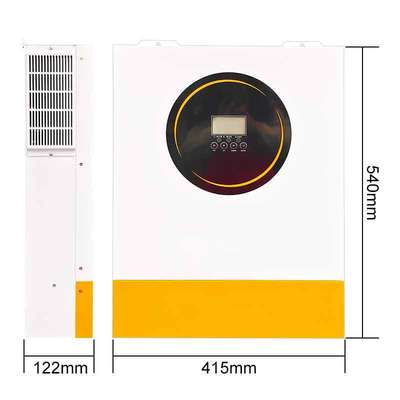

| Dimension, D xW x H(mm) | 540*415*122 | 540*415*122 |
Product Features
- Built-in 2 MPPT
- Lithium battery activation function by PV or Utility
- Compatible work with LiFePO4 battery via RS485
- Pure Sine Wave
- Powerfactor 1.0
- PV Input 500Vdc Max
- Built-in MPPT140A/160A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional

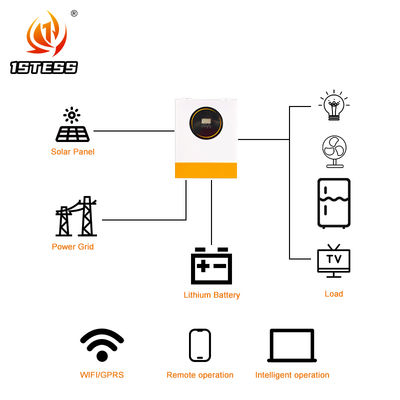

- Support multiple output priority: UTL, SOL, SBU, SUB
- EQ function to optimize battery performance and extend lifecycle
