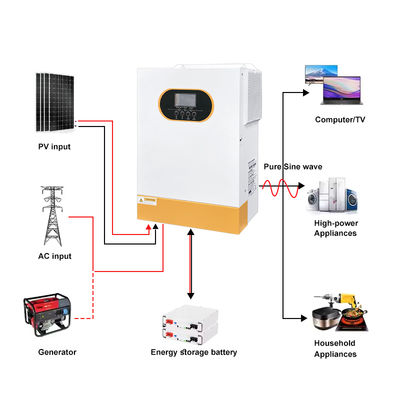

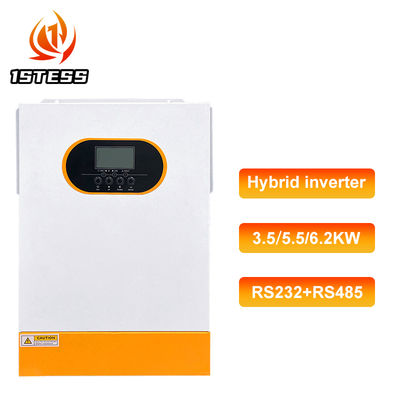

5.5kw 6.2kw 48V Hybrid Solar Inverter Single Phase MPPT Pure Sine Wave Off Grid Solar Inverter Fast 10ms Transfer Time
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | EM (PV60-500VDC) 6200 48L |
| Document | EM1.5-6.2.pdf |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton, pallet |
| Delivery Time | 10-30working days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 20000piece/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 438*295*105mm | Battery Voltage | 24V/48V |
|---|---|---|---|
| Input Voltage | 230vac | OEM | Accept OEM |
| Inverter Type | Hybrid Solar Inverter | Output Type | Single, Pure Sine Wave |
| Gross Weight | 9kg | ||
| Highlight | 48V hybrid solar inverter,MPPT pure sine wave inverter,off grid solar inverter with fast transfer |
||
Product Description
| EM3500-24L | EM5500-48L | EM6200-48L | |
|---|---|---|---|
| Model Number | EM3500-24L | EM5500-48L | EM6200-48L |
| Place of Origin | China | China | China |
| Mounting Method | Wall Bracket | Wall Bracket | Wall Bracket |

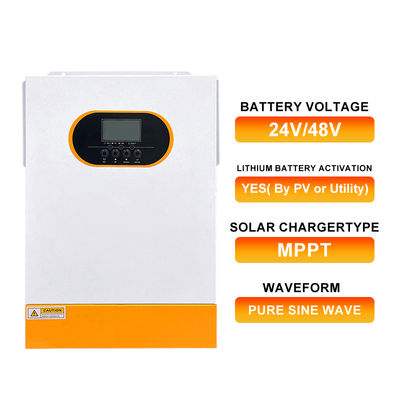

| Nominal Battery Voltage (V) | 24VDC | 48VDC | 48VDC |
| Lithium Battery activation | YES( By PV or Utility) | YES( By PV or Utility) | YES( By PV or Utility) |

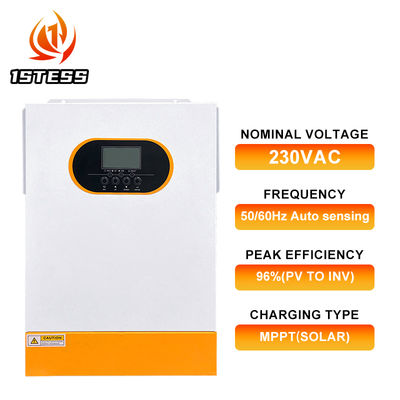

| Nominal Voltage | 230VAC | 230VAC | 230VAC |
| Lithium Battery communication | YES(RS485) | YES(RS485) | YES(RS485) |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Waveform | Pure Sine wave | Pure Sine wave | Pure Sine wave |
| Solar Charger Type | MPPT | MPPT | MPPT |
| Communication Interface | RS232+RS485 | RS232+RS485 | RS232+RS485 |
| PV Array MPPT Voltage Range | 60VDC~500VDC | 60VDC~500VDC | 60VDC~500VDC |
| Surge Power | 7000VA | 11000VA | 1240VA |

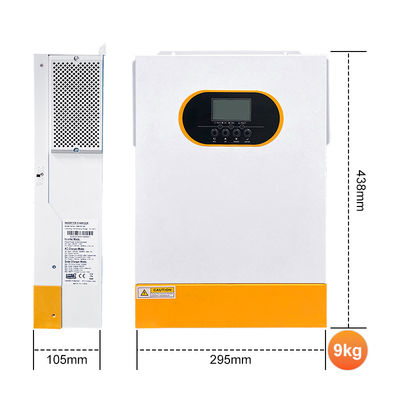

| Size | 358*295*100mm | 438*295*105mm | 438*295*105mm |
| Weight | 7kg | 9kg | 9kg |
| Operating Temperature Range | (-10'℃ to 50℃) | (-10'℃ to 50℃) | (-10'℃ to 50℃) |
Product Features
- Lithium battery activation function by PV or Utility
- Compatible work with lifepo4 battery via Rs485
- PVInput 500Vdc Max
- Built-in MPPT60A/100A/120A
- Detachable dust coverforharsh environment
- Wifi remote monitoring optional
- Support multiple output priority:UTL,SOL,SBU,SUB
- EQ function to optimize battery performance and extend lifecycle
