48V 8.5KVA 11KVA Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid Solar Inverter 8.5kw 11kw MPPT Solar Inverter Work Without Battery

Place of Origin	Guangdong, China
Brand Name	COENG
Certification	CE, IEC
Model Number	EM (PV60-500VDC) 11000-48L
Document	EM8500-48L 11000-48L.pdf
Minimum Order Quantity	1
Packaging Details	Carton, pallet
Delivery Time	10-30working days
Payment Terms	L/C,T/T,Western Union
Supply Ability	20000piece/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Size	540415122mm	Battery Voltage	48V
Input Voltage	230vac	OEM	Accept OEM
Inverter Type	Hybrid Solar Inverter	Output Type	Single, Pure Sine Wave
Gross Weight	15kg
Highlight	48V hybrid solar inverter with MPPT , single phase pure sine wave inverter , off grid solar inverter without battery

Leave a Message

Product Description

Technical Specifications

Model	EM8500-48L	EM11000-48L
Capacity	8.5KVA/8.5KW	11KVA/11KW
Maximum PV Input Power	10000W	11000W
Lithium Battery Activation	YES (By PV or Utility)	YES (By PV or Utility)
Battery Voltage	48VDC	48VDC
Solar Charger Type	MPPT	MPPT
Communication Interface	RS232/RS485/DRY CONTACT	RS232/RS485/DRY CONTACT

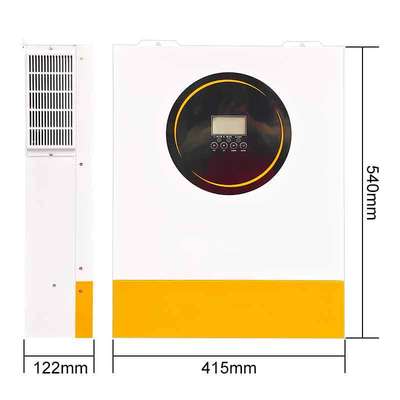

Dimensions (D x W x H)	540×415×122mm	540×415×122mm

Key Features

Built-in dual MPPT solar charge controllers
Lithium battery activation via PV or utility power
RS485 communication for LiFePO4 battery compatibility
Pure sine wave output for sensitive electronics
1.0 power factor for efficient operation
High 500Vdc maximum PV input
Built-in MPPT 140A/160A charge controller
Battery-less operation capability
Detachable dust cover for harsh environments
Optional WiFi remote monitoring
Multiple output priority modes: UTL, SOL, SBU, SUB
EQ function for battery optimization and extended lifecycle

Manufacturer Information

Shenzhen First Tech Co., Ltd, established in 2017, is a comprehensive solution provider for solar and battery energy storage systems. Specializing in research, development, production, sales and service of commercial/industrial energy storage systems, home energy storage systems, lithium-ion battery packs, solar hybrid inverters, and solar optimizers.

Located in Shenzhen, China, our factory holds ISO9001, ISO14001, and ISO45001 certifications. Our products are certified with TUV-CB, CEIEC, EMC MSDS, and UN38.3 standards, exported worldwide to Europe, Africa, Middle East, North America, South America, and Southeast Asia.

We welcome OEM & ODM orders, offering professional service, quality products, and competitive pricing. Committed to becoming a global leader in solar & ESS solutions, we strive to provide green energy for a cleaner world.

Product Images
