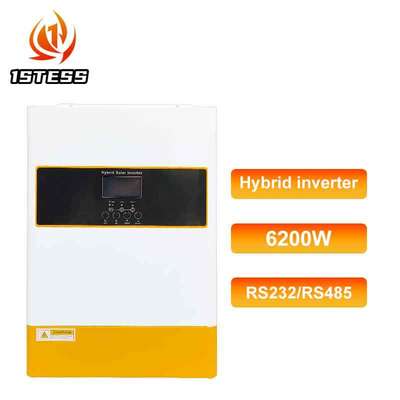

6.2kw 48V Hybrid Solar Inverter Pure Sine Wave Off Grid Single Phase MPPT Battery Backup Support

Place of Origin	Guangdong, China
Brand Name	COENG
Certification	CE, IEC
Model Number	M (PV60-500VDC)6200-48PL
Document	M6200-48L.pdf
Minimum Order Quantity	1
Packaging Details	Carton, pallet
Delivery Time	10-30working days
Payment Terms	L/C,T/T,Western Union
Supply Ability	20000piece/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

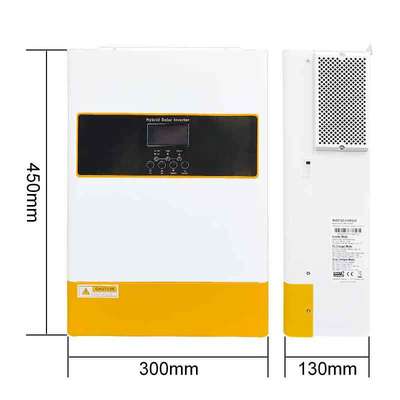

Size	450300130mm	Battery Voltage	48V
Input Voltage	230vac	OEM	Accept OEM
Inverter Type	Hybrid Solar Inverter	Output Type	Single, Pure Sine Wave
Gross Weight	9.6kg
Highlight	6.2kw hybrid solar inverter , 48V off grid inverter with MPPT , single phase solar inverter battery backup

Leave a Message

Product Description

MODEL	M6200-48PL
Capacity	6.2KVA/6.2KW
Parallel Capability	YES,12 Units

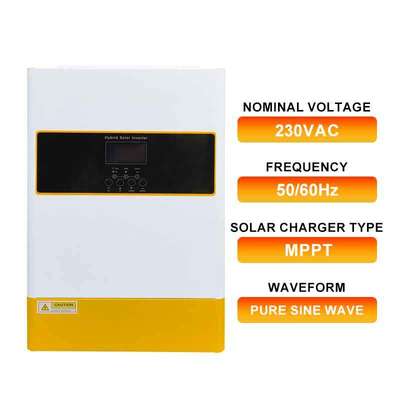

Nominal Voltage	230VAC
Waveform	Pure Sine wave

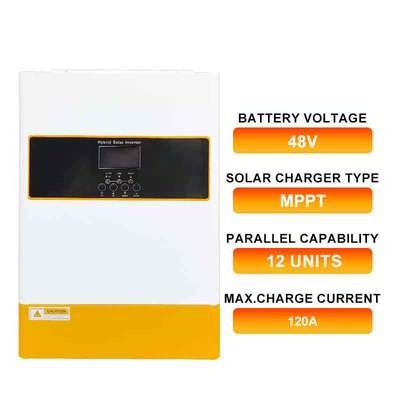

Battery Voltage	48VDC
Solar Charger Type	MPPT
Max.PV Array Power	6500W
Max.Solar Charge Current	120A
Communication Interface	RS232/RS485

Product Features.

Compatible work with lifepo4 battery
Paralleloperationupto 12 unitsin 1phase or 3phase
Direct Plug WlFlDongle Supported
Pure sine wave
Power factor 1.0
PVinput 500Vdc Max
Built-in MPPT 120A
Capable to work without battery
Detachabledustcoverforharshenvironment
WiFiremote monitoring optional
Support multiple output priority:UTL,SOL,SBU,SUB
EQ function to optimize battery performance and extend lifecycle
