6.2KW Single Phase Inverter 48VDC High Voltage MPPT Pure Sine Wave Self Consumption Feed in Function

  • 6.2KW Single Phase Inverter 48VDC High Voltage MPPT Pure Sine Wave Self Consumption Feed in Function
  • 6.2KW Single Phase Inverter 48VDC High Voltage MPPT Pure Sine Wave Self Consumption Feed in Function
  • 6.2KW Single Phase Inverter 48VDC High Voltage MPPT Pure Sine Wave Self Consumption Feed in Function
  • 6.2KW Single Phase Inverter 48VDC High Voltage MPPT Pure Sine Wave Self Consumption Feed in Function
  • 6.2KW Single Phase Inverter 48VDC High Voltage MPPT Pure Sine Wave Self Consumption Feed in Function
  • 6.2KW Single Phase Inverter 48VDC High Voltage MPPT Pure Sine Wave Self Consumption Feed in Function
Place of Origin Guangdong, China
Brand Name COENG
Certification CE, IEC
Model Number GM (PV60-500VDC) 6200-48PL
Minimum Order Quantity 1
Packaging Details Carton, pallet
Delivery Time 10-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000piece/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 450*300*130mm Battery Voltage 48V
Input Voltage 230vac OEM Accept OEM
Inverter Type Hybrid Solar Inverter Output Type Single, Pure Sine Wave
Gross Weight 10kg
Highlight

6.2KW single phase solar inverter

,

48VDC MPPT hybrid inverter

,

pure sine wave self consumption inverter
Leave a Message
Product Description

Product Features.

1. Self-consumption and Feed-in to the grid


2. Programmable multiple operation modes:Grid-tie ,off-grid and grid-tie with backup


3. Backflow prevention viaexternalCTsensor and grid connection function


4. Paralleloperation up to12 unitsin1phaseor 3phase


5. Direct Plug WlFl Dongle Supported


6. Output power factor 1.0


7.High PVinput voltagerange 500Vdc Max

8.Built-in MPPTsolar controller100/120A

9.WiFiremote monitoring optiona

10.Detachable dustcoverforharshenvironment

11.User-adjustable charging current and voltage

12.Programmable supply priority for PV, Battery or Grid

13.Support multiple output priority:SBU/SUB/SUF/ZEC

14.EQ function to optimize battery performance and extend lifecycle

MODEL
GM5500-48PL
GM6200-48PL
Phase
1-Phase In/1-Phase Out
1-Phase In /1-Phase Out
Maximum PV input power
5500W
6500W
Parallel Function
YES,12 Units
YES,12 Units
Communication Port
RS232+RS485+ External CT Port
RS232+RS485+ External CT Port
Battery Voltage
48VDC
48VDC
Nominal Output Voltage
RS232+RS485+External CT Port
RS232+RS485+External CT Port
Max.Solar Charge Current
220/230/240VAC
220/230/240VAC

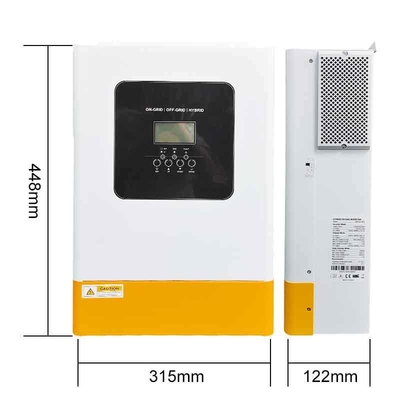

Dimension, D xW x H(mm)
448*315*122
450x300x130




6.2KW Single Phase Inverter 48VDC High Voltage MPPT Pure Sine Wave Self Consumption Feed in Function 0

6.2KW Single Phase Inverter 48VDC High Voltage MPPT Pure Sine Wave Self Consumption Feed in Function 16.2KW Single Phase Inverter 48VDC High Voltage MPPT Pure Sine Wave Self Consumption Feed in Function 26.2KW Single Phase Inverter 48VDC High Voltage MPPT Pure Sine Wave Self Consumption Feed in Function 36.2KW Single Phase Inverter 48VDC High Voltage MPPT Pure Sine Wave Self Consumption Feed in Function 4

6.2KW Single Phase Inverter 48VDC High Voltage MPPT Pure Sine Wave Self Consumption Feed in Function 5
