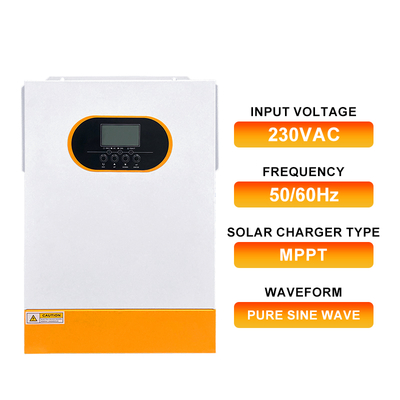

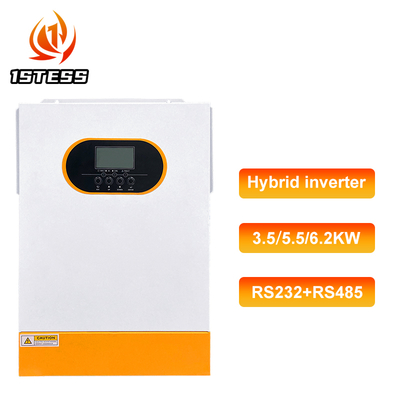

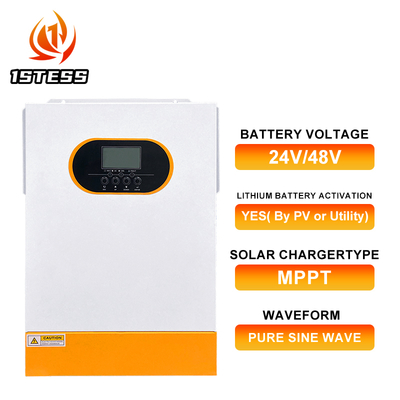

3.5kW Pure Sine Wave Hybrid Inverter 4000W PV Input Power Lithium Activation Function

  • 3.5kW Pure Sine Wave Hybrid Inverter 4000W PV Input Power Lithium Activation Function
  • 3.5kW Pure Sine Wave Hybrid Inverter 4000W PV Input Power Lithium Activation Function
  • 3.5kW Pure Sine Wave Hybrid Inverter 4000W PV Input Power Lithium Activation Function
  • 3.5kW Pure Sine Wave Hybrid Inverter 4000W PV Input Power Lithium Activation Function
  • 3.5kW Pure Sine Wave Hybrid Inverter 4000W PV Input Power Lithium Activation Function
Place of Origin Guangdong, China
Brand Name COENG
Certification CE, IEC
Model Number EM (PV60-500VDC) 6200 48L
Minimum Order Quantity 1
Packaging Details Carton, pallet
Delivery Time 10-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000piece/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 438*295*105mm Battery Voltage 24V/48V
Input Voltage 230vac OEM Accept OEM
Inverter Type Hybrid Solar Inverter Output Type Single, Pure Sine Wave
Gross Weight 9kg
Highlight

3.5kW hybrid solar inverter

,

24V pure sine wave inverter

,

48V MPPT solar inverter
Leave a Message
Product Description

Product Features.



1. BLithium battery activation function by PV or Utility


2. Compatible work with lifepo4 battery via Rs485


3. PVInput 500Vdc Max


4. Built-in MPPT60A/100A/120A


5. Detachable dust coverforharsh environment


6. Wifi remote monitoring optional


7.Support multiple output priority:UTL,SOL,SBU,SUB

8.EQ function to optimize battery performance and extend lifecycle

Model Number
EM3500-24L
EM5500-48L
EM6200-48L
Place of Origin
China
China
China
Mounting Method
Wall Bracket
Wall Bracket
Wall Bracket
Nominal Battery Voltage (V)
24VDC
48VDC
48VDC
Lithium Battery activation
YES( By PV or Utility)
YES( By PV or Utility)
YES( By PV or Utility)
Nominal Voltage
230VAC
230VAC
230VAC
Lithium Battery communication
YES(RS485)
YES(RS485)
YES(RS485)
Frequency
50/60Hz
50/60Hz
50/60Hz
Waveform
Pure Sine wave
Pure Sine wave
Pure Sine wave
Solar Charger Type
MPPT
MPPT
MPPT
Communication Interface
RS232+RS485
RS232+RS485
RS232+RS485
PV Array MPPT Voltage Range
60VDC~500VDC
60VDC~500VDC
60VDC~500VDC
Surge Power
7000VA
11000VA
1240VA

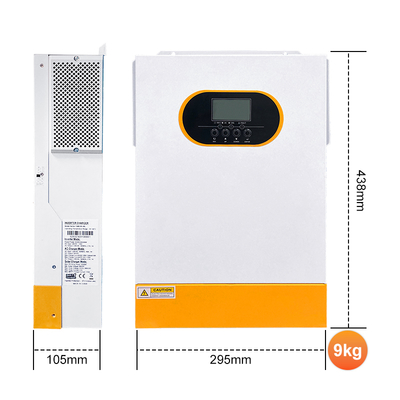

Size
358*295*100mm
438*295*105mm
438*295*105mm
Weight
7kg
9kg
9kg
Operating Temperature Range
(-10'℃ to 50℃)
(-10'℃ to 50℃)
(-10'℃ to 50℃)


3.5kW Pure Sine Wave Hybrid Inverter 4000W PV Input Power Lithium Activation Function 03.5kW Pure Sine Wave Hybrid Inverter 4000W PV Input Power Lithium Activation Function 13.5kW Pure Sine Wave Hybrid Inverter 4000W PV Input Power Lithium Activation Function 23.5kW Pure Sine Wave Hybrid Inverter 4000W PV Input Power Lithium Activation Function 33.5kW Pure Sine Wave Hybrid Inverter 4000W PV Input Power Lithium Activation Function 4

3.5kW Pure Sine Wave Hybrid Inverter 4000W PV Input Power Lithium Activation Function 5

3.5kW Pure Sine Wave Hybrid Inverter 4000W PV Input Power Lithium Activation Function 6
