5kW Pure Sine Wave Hybrid Inverter Three Phase 120-600V Battery IP65 High Voltage MPPT
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | TP5KH |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton, pallet |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20000piece/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details

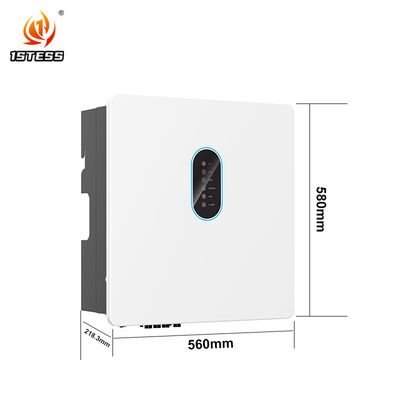

| Size | 560mm*580mm*218.3mm | Battery Voltage | 250V-600V |
|---|---|---|---|
| Input Voltage | 1000V | OEM | Accept OEM |
| Inverter Type | Hybrid Solar Inverter | Protection Degree | IP65 |
| Gross Weight | 32kg | ||
| Highlight | 5kW Pure Sine Wave Hybrid Inverter,IP65 Pure Sine Wave Hybrid Inverter |
||
Product Description
Product Features.
1.Maximum efficiency of 97.8% and battery efficiency of 97.0%
2.Maximum 15kW PVinput power, supporting continuous overload
3.Key components from international renowned brands
4.IP65 protection rating, ensuring adaptability to complex outdoor environment
5.Multiple built-in protections, with optional AFCl
6.Large MPPT current, compatible with high-power solar panels
|
|
Key Product Selling Points
-
Grid Chaos Master
-
Ultra-wide voltage range (260–520V adjustable) – survives extreme grid fluctuations.
-
<10ms transfer time – seamless backup during outages (critical for unstable grids).
-
-
Extreme Environment Resilience
-
IP65 rating – dust/waterproof for deserts, tropics, and coastal areas.
-
-25°C to 60°C operation – works in Sahara heat or Andean cold.
-
4000m altitude support – ideal for mountainous regions.
-
-
High Power + Battery Flexibility
-
15kW PV input / 11.3kW battery discharge – supports large solar arrays & backup needs.
-
120–600V battery voltage – works with lithium/lead-acid and future-proofs for high-voltage systems.
-
-
Certification Dominance
-
Africa: NRS 097-2-1 (South Africa), VDE 4105.
-
LatAm: RD 1699 (Chile/Colombia), UNE 217002 (Mexico).
-
Asia: AS 4777.2 (SEA/Aus), G98/G99 (UK-influenced markets).
-
-
No-Fuss Maintenance
-
Natural cooling – no fans to fail in dusty/sandy environments.
-
10-year optional warranty – reduces long-term risk.
-
Regional Competitive Edge
| Region | Why It Wins | Top Markets |
|---|---|---|
| Africa | ▶️ Handles 50% voltage drops (e.g., Nigeria’s 100V swings). ▶️ IP65 resists Sahel dust & monsoons. ▶️ NRS certification for South Africa. |
South Africa, Nigeria, Kenya |
| Southeast Asia | ▶️ Typhoon-proof surge protection (Type II/III). ▶️ 50Hz/60Hz flexibility for rural grids. ▶️ High humidity tolerance (0–100% RH). |
Philippines, Indonesia, Vietnam |
| Middle East | ▶️ 60°C desert operation. ▶️ Sand/dust immunity (IP65). ▶️ 15kVA surge starts AC units during outages. |
Saudi Arabia, UAE, Jordan |
| Latin America | ▶️ RD 1699 compliance for Chile/Colombia. ▶️ 4000m altitude rating (Andes). ▶️ Handles voltage swings in favelas/rural areas. |
Chile, Colombia, Brazil |
Why Beats Competitors
| Feature | TP Series Advantage | Regional Impact |
|---|---|---|
| Voltage Range | 260–520V (vs. standard 180–300V) | Powers through brownouts (Africa/LatAm). |
| Battery Voltage | 120–600V (vs. 40–60V low-voltage systems) | Future-proof for high-voltage batteries. |
| Cooling | Fanless natural cooling | Zero maintenance in deserts/dust belts. |
| Certifications | 10+ global grid codes (AS4777.2, RD1699, VDE4105) | Faster market entry & trust. |
