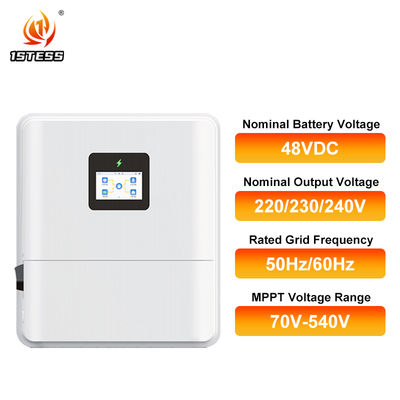

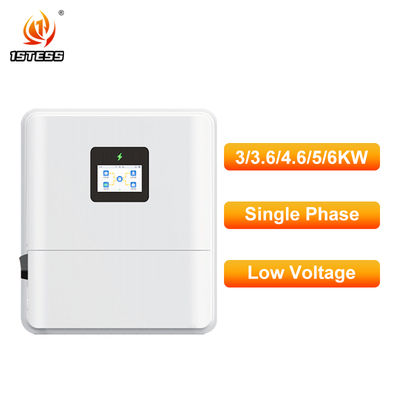

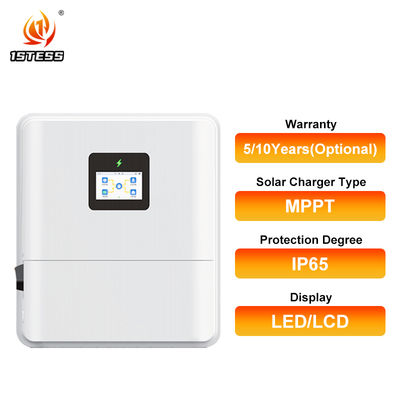

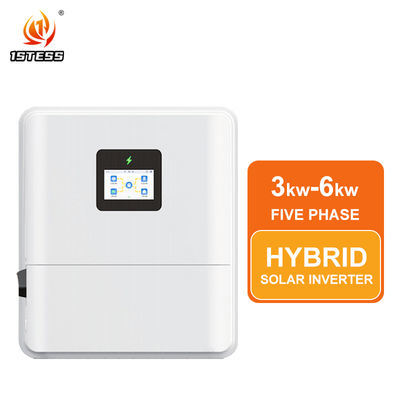

5kW Single Phase MPPT Inverter 48V Battery IP65 Low Voltage Pure Sine Wave Emergency Power

  • 5kW Single Phase MPPT Inverter 48V Battery IP65 Low Voltage Pure Sine Wave Emergency Power
  • 5kW Single Phase MPPT Inverter 48V Battery IP65 Low Voltage Pure Sine Wave Emergency Power
  • 5kW Single Phase MPPT Inverter 48V Battery IP65 Low Voltage Pure Sine Wave Emergency Power
  • 5kW Single Phase MPPT Inverter 48V Battery IP65 Low Voltage Pure Sine Wave Emergency Power
  • 5kW Single Phase MPPT Inverter 48V Battery IP65 Low Voltage Pure Sine Wave Emergency Power
  • 5kW Single Phase MPPT Inverter 48V Battery IP65 Low Voltage Pure Sine Wave Emergency Power
Place of Origin Guangdong, China
Brand Name COENG
Certification CE, IEC
Model Number SP5KL
Minimum Order Quantity 1
Packaging Details Carton, pallet
Delivery Time 10-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000piece/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 367mm*421mm*215mm Battery Voltage 48V
Input Voltage 550VAC OEM Accept OEM
Inverter Type Hybrid Solar Inverter Protection Degree IP65
Gross Weight 16kg
Highlight

IP65 Pure Sine Wave Inverter

,

Low Voltage Pure Sine Wave Inverter

,

5kW Pure Sine Wave Inverter
Leave a Message
Product Description

Product Features.

1.LCD touch color screen, easy to operate


2.Support high power PV panel with 18A PVinput current

3.Max battery charge/discharge current of 135A

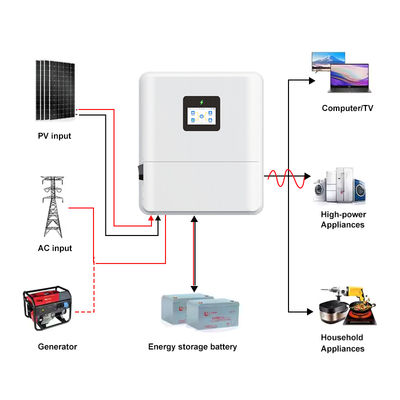

4.Support generator/smart load/AC coupling

5.Support up to 9pcs in parallel

6.Compact and lightweight,easy to transport and space-saving

MODEL
SP3KL
SP3K6L
SP3K68L
SP4KL
SP5KL
SP6KL
Nominal Battery Voltage
48VDC
Mounting Method
Wall Bracket
Battery Type
Lithium-ion/Lead-acid
Nos.of MPPT
2
2
2
2
2
2
Rated Grid Voltage
220V/230V/240V,L+N+PE
Battery Voltage Range
40V-65V
40V-65V
40V-65V
40V-65V
40V-65V
40V-65V
Rated Grid Frequency
50Hz/60Hz
Transfer Time
10ms (typical)
Max.AC Apparent Power
3,300VA
3,960VA
3,680VA
4,600VA
5,500VA
6,600VA
Protection Degree
IP65
IP65
IP65
IP65
IP65
IP65
Nominal AC Output Power
3000W
3600W
3680W
4000W
5000W
6000W
Weight
16Kg
16Kg
16Kg
16Kg
16Kg
16Kg
Dimensions (W*H*D)
367mm*421mm*215mm
Warranty
5 Years/10 Years (Optional)
Display
LED,LCD


5kW Single Phase MPPT Inverter 48V Battery IP65 Low Voltage Pure Sine Wave Emergency Power 05kW Single Phase MPPT Inverter 48V Battery IP65 Low Voltage Pure Sine Wave Emergency Power 15kW Single Phase MPPT Inverter 48V Battery IP65 Low Voltage Pure Sine Wave Emergency Power 25kW Single Phase MPPT Inverter 48V Battery IP65 Low Voltage Pure Sine Wave Emergency Power 3

5kW Single Phase MPPT Inverter 48V Battery IP65 Low Voltage Pure Sine Wave Emergency Power 4

5kW Single Phase MPPT Inverter 48V Battery IP65 Low Voltage Pure Sine Wave Emergency Power 5

Key Product Selling Points

  1. Grid Resilience for Unstable Regions

    • Ultra-wide voltage range (150V–300V adjustable) – handles severe grid fluctuations.

    • Flexible frequency (45–65Hz adjustable) – compatible with erratic grids.

    • 10ms transfer time – seamless backup during outages.

  2. Tropical/Desert Durability

    • IP65 rating – dust/water resistance for humid or sandy environments.

    • Wide operating temps (-25°C to 60°C) – survives desert heat and mountain cold.

    • Surge protection (DC Type III + AC Type III) – critical for storm-prone areas.

  3. Battery Flexibility

    • 48V system support – works with affordable lead-acid or modern lithium.

    • High current (up to 135A charge/discharge) – fast battery cycling.

  4. Certification Coverage

    • Africa: NRS 097-2-1 (South Africa), VDE4105.

    • Southeast Asia: AS4777.2 (Australia/NZ influence).

    • LatAm: RD1699 (Spain certification used in Chile/Colombia).

  5. Cost-Effective Power

    • 6.6kW max PV input – leverages abundant sunlight.

    • 10,000VA peak power (10s) – starts motors/pumps in agricultural/industrial use.

Regional Advantages & Market Fit

Region Why It’s Ideal Key Certifications
Africa - Handles severe voltage drops (e.g., South Africa’s load-shedding).
- NRS 097-2-1 compliance for legal market access.
IP65 resists dust/humidity.		 NRS 097-2-1, VDE4105
Southeast Asia - Typhoon/humidity resilience (IP65).
- 48V battery support suits budget-conscious markets.
- 4000m altitude rating for mountainous areas (e.g., Philippines).		 AS4777.2
Middle East - Desert heat survival (60°C operation).
- Sand/dust protection (IP65).
- Wide voltage range for remote grids.		 IEC 62109, IEC 61727
Latin America - RD1699 compliance (Chile/Colombia grid codes).
- Handles voltage swings in rural grids.
- 48V batteries common in off-grid communities.		 RD1699, EN50549

Competitive Edge in Target Markets

Feature SPSK Advantage Regional Impact
Voltage Range 150V–300V (vs. standard 180V–265V) Powers through brownouts (Africa/LatAm).
Battery Current 135A max (vs. typical 100A in class) Faster charging in sun-rich regions.
Weight 16kg (lightweight for remote installs) Reduces shipping/installation costs.
Cooling Natural/smart fan – fewer failure points Low maintenance in dusty areas (Middle East).
