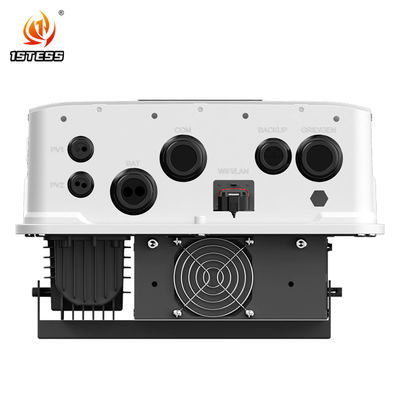

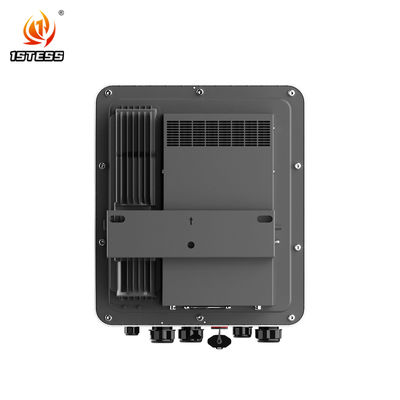

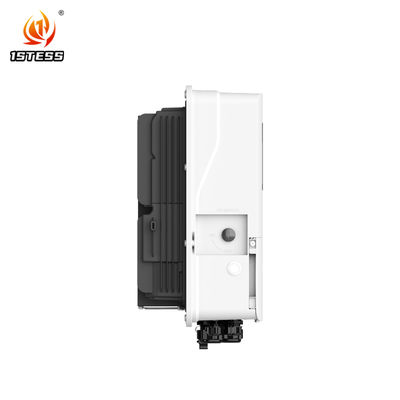

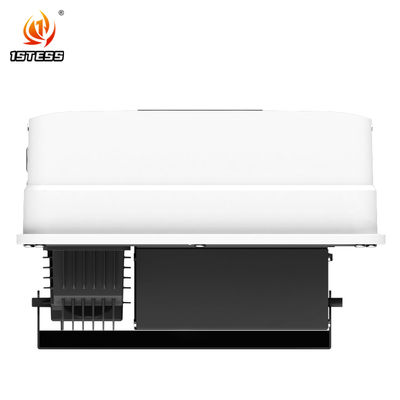

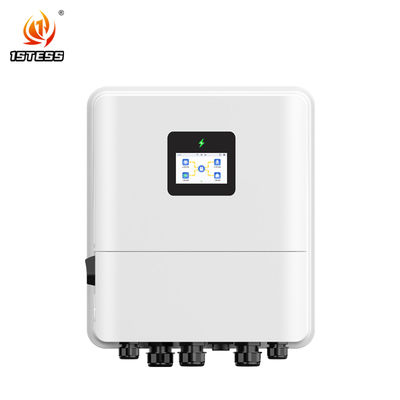

48V 3kw 3.6kw 4.6kw 5kw 6kw Hybrid Solar Inverter IP65 Single Phase Pure Sine Wave 48V 4.6kw Hybrid Solar Inverter with MPPT

  • 48V 3kw 3.6kw 4.6kw 5kw 6kw Hybrid Solar Inverter IP65 Single Phase Pure Sine Wave 48V 4.6kw Hybrid Solar Inverter with MPPT
  • 48V 3kw 3.6kw 4.6kw 5kw 6kw Hybrid Solar Inverter IP65 Single Phase Pure Sine Wave 48V 4.6kw Hybrid Solar Inverter with MPPT
  • 48V 3kw 3.6kw 4.6kw 5kw 6kw Hybrid Solar Inverter IP65 Single Phase Pure Sine Wave 48V 4.6kw Hybrid Solar Inverter with MPPT
  • 48V 3kw 3.6kw 4.6kw 5kw 6kw Hybrid Solar Inverter IP65 Single Phase Pure Sine Wave 48V 4.6kw Hybrid Solar Inverter with MPPT
  • 48V 3kw 3.6kw 4.6kw 5kw 6kw Hybrid Solar Inverter IP65 Single Phase Pure Sine Wave 48V 4.6kw Hybrid Solar Inverter with MPPT
  • 48V 3kw 3.6kw 4.6kw 5kw 6kw Hybrid Solar Inverter IP65 Single Phase Pure Sine Wave 48V 4.6kw Hybrid Solar Inverter with MPPT
Place of Origin Guangdong, China
Brand Name COENG
Certification CE, IEC
Model Number SP4K6L
Minimum Order Quantity 1
Packaging Details Carton, pallet
Delivery Time 10-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000piece/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 367mm*421mm*215mm Battery Voltage 48V
Input Voltage 550VAC OEM Accept OEM
Inverter Type Hybrid Solar Inverter Protection Degree IP65
Gross Weight 16kg
Highlight

IP65 Hybrid Solar Inverter

,

Pure Sine Wave Hybrid Solar Inverter

,

6kw Hybrid Solar Inverter
Leave a Message
Product Description

Product Features.

1.LCD touch color screen, easy to operate


2.Support high power PV panel with 18A PVinput current

3.Max battery charge/discharge current of 135A

4.Support generator/smart load/AC coupling

5.Support up to 9pcs in parallel

6.Compact and lightweight,easy to transport and space-saving

MODEL
SP3KL
SP3K6L
SP3K68L
SP4KL
SP5KL
SP6KL
Nominal Battery Voltage
48VDC
Mounting Method
Wall Bracket
Battery Type
Lithium-ion/Lead-acid
Nos.of MPPT
2
2
2
2
2
2
Rated Grid Voltage
220V/230V/240V,L+N+PE
Battery Voltage Range
40V-65V
40V-65V
40V-65V
40V-65V
40V-65V
40V-65V
Rated Grid Frequency
50Hz/60Hz
Transfer Time
10ms (typical)
Max.AC Apparent Power
3,300VA
3,960VA
3,680VA
4,600VA
5,500VA
6,600VA
Protection Degree
IP65
IP65
IP65
IP65
IP65
IP65
Nominal AC Output Power
3000W
3600W
3680W
4000W
5000W
6000W
Weight
16Kg
16Kg
16Kg
16Kg
16Kg
16Kg
Dimensions (W*H*D)
367mm*421mm*215mm
Warranty
5 Years/10 Years (Optional)
Display
LED,LCD


48V 3kw 3.6kw 4.6kw 5kw 6kw Hybrid Solar Inverter IP65 Single Phase Pure Sine Wave 48V 4.6kw Hybrid Solar Inverter with MPPT 048V 3kw 3.6kw 4.6kw 5kw 6kw Hybrid Solar Inverter IP65 Single Phase Pure Sine Wave 48V 4.6kw Hybrid Solar Inverter with MPPT 148V 3kw 3.6kw 4.6kw 5kw 6kw Hybrid Solar Inverter IP65 Single Phase Pure Sine Wave 48V 4.6kw Hybrid Solar Inverter with MPPT 248V 3kw 3.6kw 4.6kw 5kw 6kw Hybrid Solar Inverter IP65 Single Phase Pure Sine Wave 48V 4.6kw Hybrid Solar Inverter with MPPT 348V 3kw 3.6kw 4.6kw 5kw 6kw Hybrid Solar Inverter IP65 Single Phase Pure Sine Wave 48V 4.6kw Hybrid Solar Inverter with MPPT 4

48V 3kw 3.6kw 4.6kw 5kw 6kw Hybrid Solar Inverter IP65 Single Phase Pure Sine Wave 48V 4.6kw Hybrid Solar Inverter with MPPT 5
