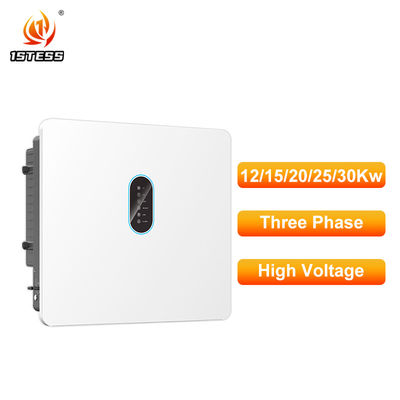

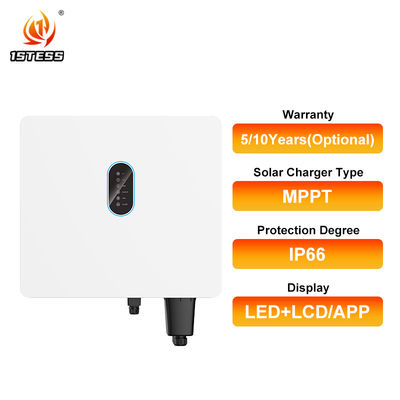

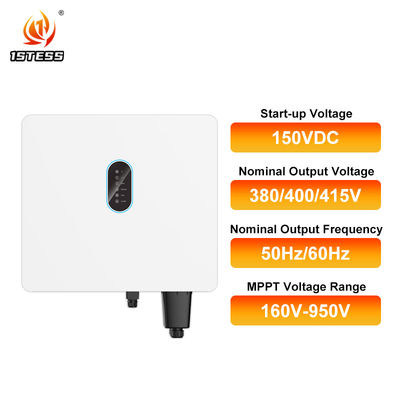

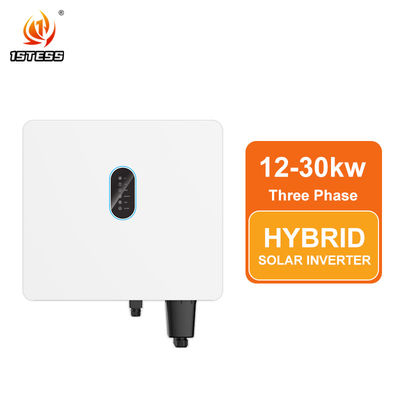

IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw MPPT On/Off Grid 3 Phase 12kw Solar Inverter

  • IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw MPPT On/Off Grid 3 Phase 12kw Solar Inverter
  • IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw MPPT On/Off Grid 3 Phase 12kw Solar Inverter
  • IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw MPPT On/Off Grid 3 Phase 12kw Solar Inverter
  • IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw MPPT On/Off Grid 3 Phase 12kw Solar Inverter
  • IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw MPPT On/Off Grid 3 Phase 12kw Solar Inverter
  • IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw MPPT On/Off Grid 3 Phase 12kw Solar Inverter
  • IP66 Three Phase Hybrid Inverter 120V-800V 15kw 20kw 25kw 30kw MPPT On/Off Grid 3 Phase 12kw Solar Inverter
Place of Origin Guangdong, China
Brand Name COENG
Certification CE, IEC
Model Number TP12KH
Minimum Order Quantity 1
Packaging Details Carton, pallet
Delivery Time 10-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000piece/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 660mm*596mm*235mm Battery Voltage 120V-800V
Input Voltage 1000V OEM Accept OEM
Inverter Type Hybrid Solar Inverter Protection Degree IP66
Gross Weight 45kg/55kg
Highlight

25kw Three Phase Hybrid Inverter

,

30kw Three Phase Hybrid Inverter

,

IP66 Three Phase Hybrid Inverter
Leave a Message
Product Description

Product Features.



1.Maximum efficiency of 98.4% and battery efficiency of 98.0%


2.Maximum battery charge/discharge current of 2*75A

3.Advanced parallel function

4.IP66 protection rating,ensuring adaptability to complex outdoor environment

5.Multiple built-in protections, with optional AFCl

6.Large MPPT current, compatible with high-power solar panels

MODEL
TP12KH
TP15KH
TP20KH
TP25KH
TP30KH
Battery Voltage Range
120VDC-800VDC
Mounting Method
Wall Bracket
Battery Type
Lithium-ion/Lead-acid
Nos.of MPPT
2
3
Rated Grid Voltage
380V/400V/415V,3W+N+PE
Battery Voltage Range at Rated Power
230V-800V
285V-800V
380V-800V
190V-800V
230V-800V
Rated Grid Frequency
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
Transfer Time
<10ms (typical)
Nominal AC Output Power
12000W
15000W
20000W
25000W
30000W
Protection Degree
IP66
Max.AC Output Apparent Power
13200VA
16500VA
22000VA
27500VA
33000VA
Weight
45Kg
55Kg
Dimensions (W*H*D)
660mm*596mm*235mm
Warranty
5 Years/10 Years (Optional)
Display
Bluetooth & APP + LED, LCD (optional)
