Single Phase 360V Hybrid Solar Inverter 3kw 3.6kw 4.6kw 5kw 6kw IP66 Pure Sine Wave On/off Grid Solar Inverter with Mppt

  • Single Phase 360V Hybrid Solar Inverter 3kw 3.6kw 4.6kw 5kw 6kw IP66 Pure Sine Wave On/off Grid Solar Inverter with Mppt
  • Single Phase 360V Hybrid Solar Inverter 3kw 3.6kw 4.6kw 5kw 6kw IP66 Pure Sine Wave On/off Grid Solar Inverter with Mppt
  • Single Phase 360V Hybrid Solar Inverter 3kw 3.6kw 4.6kw 5kw 6kw IP66 Pure Sine Wave On/off Grid Solar Inverter with Mppt
  • Single Phase 360V Hybrid Solar Inverter 3kw 3.6kw 4.6kw 5kw 6kw IP66 Pure Sine Wave On/off Grid Solar Inverter with Mppt
  • Single Phase 360V Hybrid Solar Inverter 3kw 3.6kw 4.6kw 5kw 6kw IP66 Pure Sine Wave On/off Grid Solar Inverter with Mppt
  • Single Phase 360V Hybrid Solar Inverter 3kw 3.6kw 4.6kw 5kw 6kw IP66 Pure Sine Wave On/off Grid Solar Inverter with Mppt
  • Single Phase 360V Hybrid Solar Inverter 3kw 3.6kw 4.6kw 5kw 6kw IP66 Pure Sine Wave On/off Grid Solar Inverter with Mppt
Place of Origin Guangdong, China
Brand Name COENG
Certification CE, IEC
Model Number SP3KH
Minimum Order Quantity 1
Packaging Details Carton, pallet
Delivery Time 10-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000piece/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 420mm*800mm*240mm Battery Voltage 360V
Input Voltage 550VAC OEM Accept OEM
Inverter Type Hybrid Solar Inverter Protection Degree IP65
Gross Weight 14.1kg/14.6kg
Highlight

Mppt Hybrid Solar Inverter

,

Single Phase Hybrid Solar Inverter

,

3.6kw Hybrid Solar Inverter
Leave a Message
Product Description

Product Features.



1.Maximum efficiency of 97.8% and battery efficiency of 97.0%


2.Maximum 12kW PVinput power

3.Key components from international renowned brands

4.IP66 protection rating,ensuring adaptability to complex

5.Multiple built-in protections, with optional AFCl

6.Large MPPT current, compatible with high-power solar panels

MODEL
SP3KH
SP3K6H
SP4K6H
SP5KH
SP6KH
Nominal Battery Voltage
360VDC
Mounting Method
Wall Bracket
Battery Type
Lithium-ion/Lead-acid
Nos.of MPPT
2
2
2
2
2
Rated Grid Voltage
220V/230V/240V,L+N+PE
Battery Voltage Range
80V-480V
80V-480V
80V-480V
80V-480V
80V-480V
Rated Grid Frequency
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
Transfer Time
10ms (typical)
Nominal AC Output Power
3000W
3600W
4600W
5000W
6000W
Protection Degree
IP66
Max.AC Output Apparent Power
3300VA
3960VA
4600VA
5500VA
6600VA
Weight
14.1Kg
14.6Kg

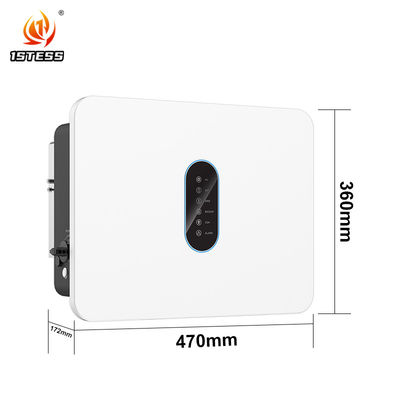

Dimensions (W*H*D)
470mm*360mm*172mm
Warranty
5 Years/10 Years (Optional)
Display
LED,LCD
