Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter

  • Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter
  • Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter
  • Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter
  • Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter
  • Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter
  • Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter
  • Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter
Place of Origin Guangdong, China
Brand Name COENG
Certification CE, IEC
Model Number SP8KL
Minimum Order Quantity 1
Packaging Details Carton, pallet
Delivery Time 10-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000piece/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 420mm*800mm*240mm Battery Voltage 48V
Input Voltage 600VAC OEM Accept OEM
Inverter Type Hybrid Solar Inverter Protection Degree IP66
Gross Weight 39kg
Highlight

IP66 Solar Hybrid Inverter

,

10kw Solar Hybrid Inverter

,

Single Phase Solar Hybrid Inverter
Leave a Message
Product Description

Product Features.

1.Up to 200% oversizing allowed with 3 MPPTS


2.Support high power module with 30A PVinput current

3.Support AC coupled solarinput

4.Stackable up to 9 units

5.Four application modes

6.Remote configuration and upgrade

MODEL
SP8KL
SP10KL
Nominal Battery Voltage
48VDC
48VDC
Mounting Method
Wall Bracket
Wall Bracket
Battery Type
Lithium-ion/Lead-acid
Lithium-ion/Lead-acid
Nos.of MPPT
3
3
Nominal Output Voltage
220V/230/240V,L+N+PE
220V/230/240V,L+N+PE
Battery Voltage Range
40V-64V
40V-64V
Rated Grid Frequency
50Hz/60Hz
50Hz/60Hz
Transfer Time
10ms (typical)
10ms (typical)
Nominal AC Output Power
8000W
10000W
Protection Degree
IP66
IP66
Max.AC Output Apparent Power
8800VA
110000VA
Weight
39Kg
39Kg

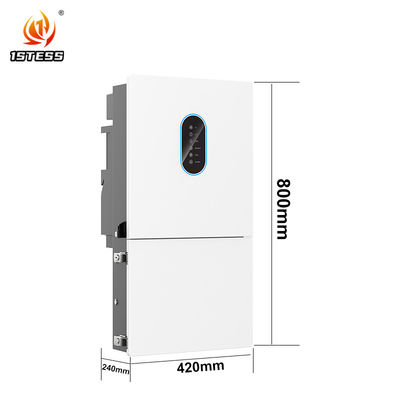

Dimensions (W*H*D)
420mm*800mm*240mm
420mm*800mm*240mm
Warranty
5 Years/10 Years (Optional)
5 Years/10 Years (Optional)
Display
LED,LCD
LED,LCD


Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter 0Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter 1Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter 2Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter 3

Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter 4

Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter 5
