Wholesale Pure Sine Wave 11000W Solar Inverter on Off Grid 48V Hybrid Solar Inverter 11kw Hybrid Solar Inverter with MPPT

Place of Origin Guangdong, China
Brand Name COENG
Certification CE, IEC
Model Number M11000T-48PL
Minimum Order Quantity 1
Packaging Details Carton, pallet
Delivery Time 10-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000piece/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details

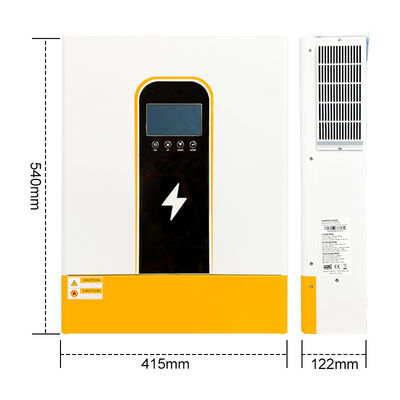

Size 540*415*122mm Battery Voltage 48V
Input Voltage 230vac OEM Accept OEM
Inverter Type Hybrid Solar Inverter Output Type Single, Pure Sine Wave
Gross Weight 15.5kg
Highlight

Pure Sine Wave 11000W Solar Inverter

,

11kw Hybrid Solar Inverter

,

Solar Inverter with MPPT

Leave a Message
Product Description

Product Features.

1. Dual AC output


2. Built-in 2 MPPT


3. Parallel max up to 6 units


4. Lithium battery activation function by PV or Utility


5. Compatible work with LiFePO4 battery via RS485


6. Pure Sine Wave


7. Power factor 1.0


8. PV Input 500Vdc Max


9. Built-in MPPT 140A/160A


10. Capable to work without battery


11. Detachable dust cover for harsh environment


12. Wifi remote monitoring optional


13. Support multiple output priority: SuB, SBU, SUF


14. EQ function to optimize battery performance and extend lifecycle



Model Number
M8500T-48PL
M11000T-48PL
Place of Origin
China
China
Mounting Method
Wall Bracket
Wall Bracket
Nominal Battery Voltage (V)
48VDC
48VDC
Parallel Capacity·
YES, 6units
YES, 6units
Lithium Battery activation
YES( By PV or Utility)
YES( By PV or Utility)
Nominal Voltage
230VAC
230VAC
Lithium Battery communication
YES(RS485)
YES(RS485)
Frequency
50/60Hz
50/60Hz
Waveform
Pure Sine wave
Pure Sine wave
Solar Charger Type
MPPT
MPPT
Communication Interface
RS232+RS485+Dry-contact
RS232+RS485+Dry-contact
PV Array MPPT Voltage Range
60VDC~500VDC
60VDC~500VDC
Surge Power
17000VA
22000VA
Size
540*415*122mm
540*415*122mm
Weight
14.5kg
15.5kg
Operating Temperature Range
(-10'℃ to 50℃)
(-10'℃ to 50℃)
