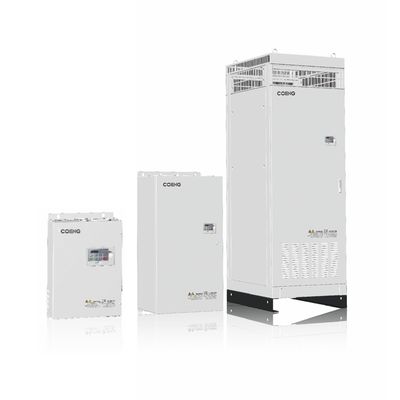

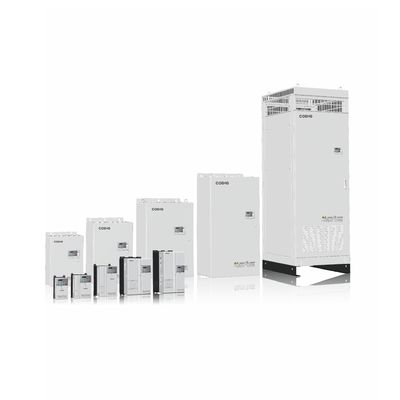

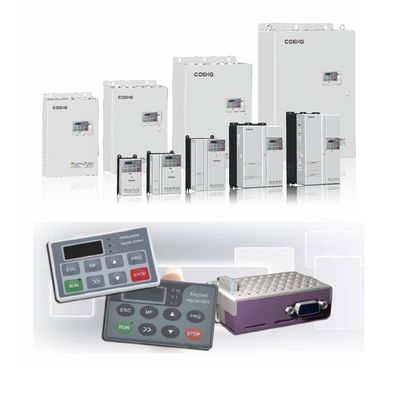

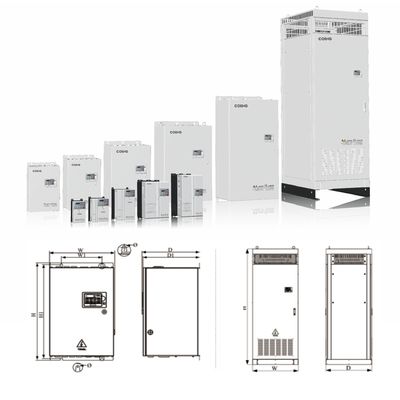

HV300 Series Open Loop Vector Control VFD for Machine Tools and Conveyor Systems
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV300-4 |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton, pallet |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Frequency | 50Hz/60Hz±5% | Vibration | <5.9m/s2 (0.6g) |
|---|---|---|---|
| Torque Accuracy | ≤5% (OLVC) | Adjust Speed | 1:100 (OLVC), 1:50 (V/F) |
| V/F | 4 Types: V/F (user Can Program) And Ramp (2.0 Power, 1.7 Power, 1.2 Power) | Torque Pulsation | ≤2% (OLVC) |
| Input Voltage Uin | 200V (-15%) ~ 240V (+10%) 1PH/3PH, 380V (-15%) ~ 480V (+10%) 3PH 500V, 500V (-15%) ~ 690V (+10%) 3PH | Voltage Control | V/F, OLVC (Open Loop Vector Control) |
| Highlight | Open Loop Vector Control VFD,Machine Tools Vector Control VFD,Conveyor Systems Vector Control VFD |
||
Product Description
Vector Power Converter VFD Frequency Drive Technical Parameters
|
Product Attribute |
Technical Parameter |
|
Product Name |
Vector Variable Speed Drive |
|
Power Range |
0.4kW ~ 500kW |
|
Input Frequency |
50Hz/60Hz±5% |
|
Output Frequency |
0Hz ~ 300Hz |
|
V/F |
4 Types: V/F (user Can Program) And Ramp (2.0 Power, 1.7 Power, 1.2 Power) |
|
Starting Torque |
0.5Hz: 150% (OLVC), 1Hz: 150% (OLVC) |
|
Adjust Speed |
1:100 (OLVC), 1:50 (V/F) |
|
Vibration |
<5.9m/s2 (0.6g) |
|
Humidity |
<90% RH, No-condensing |
|
Communication Protocol |
Modbus RTU |
|
Communication Interface |
RS485, RJ45 |
|
Product Type |
Vector Power Converter, Vector Electric Motor Controller |
HV300 General-Purpose Variable Frequency Inverter: Versatile Solutions for Modern Applications
The HV300 General-Purpose Variable Frequency Inverter is a cutting-edge solution designed to enhance the efficiency and performance of various motor-driven systems. With a power range from 0.4 kW to 500 kW, this inverter is engineered for flexibility and adaptability, making it suitable for a wide array of applications across different industries.
Applications
1. Industrial Automation
In the realm of industrial automation, the HV300 excels at controlling motors for conveyors, assembly lines, and robotic systems. Its precise speed regulation and torque control capabilities ensure smooth operation and improved production efficiency.
2. Pumping Systems
This inverter is ideal for various pumping applications, including water treatment plants, irrigation systems, and HVAC units. Its ability to maintain consistent flow rates while adjusting motor speed based on demand leads to significant energy savings and optimized performance.
3. Fans and Blowers
In ventilation and cooling systems, the HV300 regulates fan and blower speeds effectively. By matching the motor speed to the required airflow, it reduces energy consumption and enhances system efficiency.
4. Material Handling
The HV300 is well-suited for material handling equipment such as hoists, lifts, and palletizers. Its quick torque response and dynamic performance ensure reliable operation, even under varying load conditions.
5. Mining and Heavy-Duty Applications
Designed to withstand harsh environments, the HV300 is perfect for heavy-duty applications in mining and construction. Its robust construction and advanced protection features ensure reliable operation in challenging conditions.
Key Features
Advanced Control Technology
The HV300 utilizes both open-loop and closed-loop vector control technology, allowing it to manage asynchronous motor drives with exceptional precision. This versatility enables it to adapt to various operational demands and provides users with optimal control.
Intelligent Design for Safety
Equipped with intelligent IGBT module heat protection and a built-in dynamic junction temperature model, the inverter monitors its operating conditions in real-time. This feature enhances safety and prolongs the lifespan of the system.
User-Friendly Interface
With powerful PC tools like HVManager, users can easily program, set, and monitor the inverter’s performance. The comprehensive parameter setting function simplifies the debugging process, ensuring a seamless experience.
Robust Communication Protocols
The inverter supports various communication interfaces, including RS485 and Modbus RTU, facilitating easy integration into existing systems. This flexibility allows for effective communication and control within automation environments.
High Efficiency and Low Distortion
The HV300 features a built-in DC reactor that significantly reduces current distortion rates, enhances input power factor, and improves overall energy efficiency. This results in lower operational costs and a reduced environmental footprint.
Versatile Environmental Adaptability
Designed to operate in a wide range of conditions, the HV300 can function effectively in temperatures from -20°C to 40°C, making it ideal for diverse industrial settings. Its robust construction ensures reliability even in harsh environments.
The HV300 General-Purpose Variable Frequency Inverter stands out as a premier choice for industries seeking enhanced motor control and efficiency. With its broad application range, advanced features, and intelligent design, this inverter is well-equipped to meet the demands of modern industrial operations. Whether in automation, pumping, or heavy-duty applications, the HV300 delivers unparalleled performance and reliability, making it an essential component for any forward-thinking enterprise.
