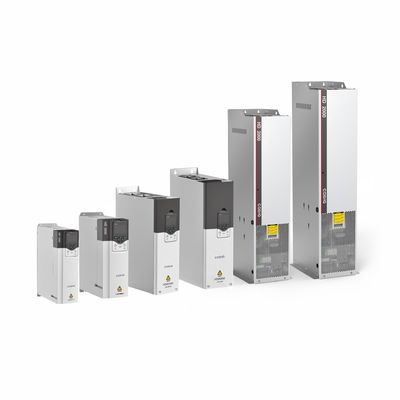

IP20/IP40 Rated VFD with OLVC/CLVC Torque Control 1:1000 Speed Range LED/LCD Keyboard

Place of Origin	China
Brand Name	COENG
Certification	CE
Model Number	HD2000-C-10-12
Minimum Order Quantity	1
Packaging Details	Carton, plywood case
Delivery Time	10-30working days
Payment Terms	L/C, T/T, Western Union
Supply Ability	20000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Model	HD2000-C-10-12	Special Function	Multi Step Speed
Oem	Acceptable	Outtype	Triple
Product	Variable Frequency Inverters	Analog Input	Within 0.2% Of Maximum Output Frequency
Working Efficiency	Very Good	Keyboard	LED/LCD
Highlight	VFD with Keyboard , IP20/IP40 Rated VFD , CLVC Torque Control VFD

Leave a Message

Product Description

Reliable Engineering Design

• Highly redundant control and power systems
• Extended lifespan of quick-wear heat dissipation parts
• Innovative high thermal capacity radiator to withstand strong impact loads
• Optical fiber cables used for control system and power units for resistance to interference

• Isolation of heat dissipation channels from internal components to protect components and better adapt to environment

Modular Design for Easy Maintenance

• Easy maintenance as no special tools needed
• Enabling all modules to be maintained from the front
• Intelligent fault diagnosis system to locate faults quickly

High Adaptability

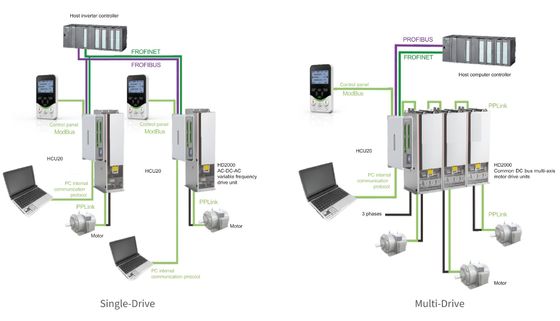

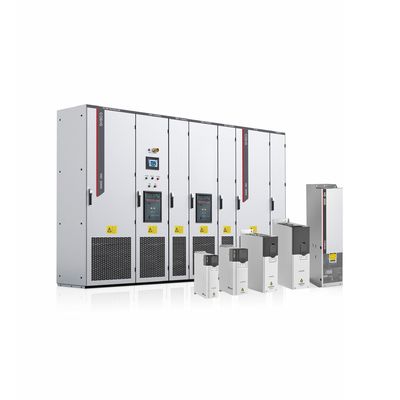

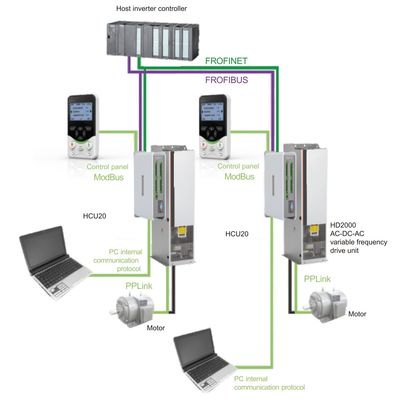

• Single-/multi-drive system in the form of units/cabinets with two/four quadrants
• Comprehensive rectifier units: Basic/Smart/PWM rectifier unit
• Strong grid adaptability, support grid wide range of input
• Normal operation under IEC 60721 class 3M5 mechanical conditions
• Precise mechanical design for stronger anti-seismic capability

Customizable Communication Protocols

• Including profibus-DP, CANopen, profinet IO, modbus RTU, modbus TCP, etherCAT, etherNet/ IP, controlNet and deviceNet,etc
• hopeInsight background quick debugging software,including batch parameter settings, fault data downloading and waveform analysis, high-speed oscilloscope and editing

Rich Tools for Human-Machine Interaction

• Configurable LCD keypad panel supporting setting parameters and displaying system information
• Supporting connection to hopeInsight via PC for intelligent fault recording and diagnosis

IP20/IP40 Rated VFD with OLVC/CLVC Torque Control 1:1000 Speed Range LED/LCD Keyboard 0

MAIN PARAMETERS

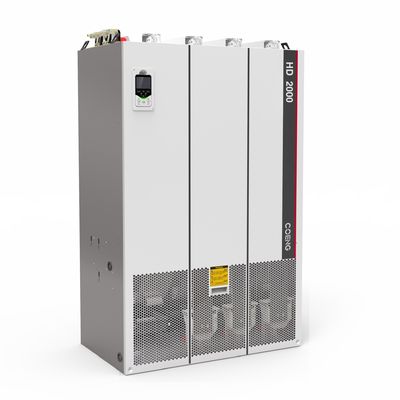

Model	HD2000 Series Low Voltage Engineering Inverter(Liquid-cooled)
Basic Rectifier	Input voltage	4:380V～480V,6:500V～690V
	Input frequency	(50Hz/60Hz)±6%
	Output voltage	Input voltage * 1.32 (Under full-load condition)
	Overload capacity	Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
	Overload capacity
	Operating efficiency	≥99% Efficiency
	Protection eunctions	Protection functions: Overheating protection, soft-start protection, Interlock
	Protection eunctions	protection, and more.
Intelligent rectifier	Input voltage	4:380V ~ 480V,6: 500V ~ 690V
	Input frequency	47 ~ 63Hz
	Output voltage	Input voltage * 1.3 (Under full-load condition)
	Overload capacity	Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
	Overload capacity
	Operating efficiency	≥98.5% Efficiency
	Protection functions	Protection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more
PWM rectifier	Input voltage	4:380V~480V,6:500V~690V,9:1140V,A:1380V
	Input voltage	4:380V~480V,6:500V~690V,9:1140V,A:1380V
	Input frequency	47 ~ 63Hz
	Output voltage	Input voltage * 1.5 (Under rated conditions)
	Overload capacity	Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
	Overload capacity
	Operating efficiency	≥98% Efficiency (Including LCL filter unit)
	Power factor	Adjustable (Factory setting at 1)
	Protection functions	Protection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more.
Inversion	Rated Input voltage	4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc,
	Rated Input voltage	A:1488Vdc~2200Vdc
	Output voltage	0 ~ Rectifier AC input voltage
	Output frequency	0 ~ 500Hz
	Speed range	V/F:1:50 OLVC:1:200 CLVC:1:1000
	Speed stability	OLVC:0.2% CLVC:0.01%
	Speed fluctuation	OLVC:0.2% CLVC:0.1%
	Starting torque	OLVC:150%(0.5Hz) CLVC:200%(0Hz)
	Torque control	V/F: Unsupported OLVC:Supported CLVC: supported
	Torque accuracy	OLVC:5% CLVC:5%
	Torque response time	OLVC:5ms CLVC:5ms
	Speed response time	OLVC:100ms CLVC:100ms
	Dynamic speed drop equivalent	OLVC:0.5%s CLVC:0.3%s
Environmental conditions	Temperature	-15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies
	Humidity	5% ~ 95% Mon-condensing
	Altitude	≤4000m, Derating applies from 2000m to 4000m
Mechanical data	Anti-vibration performance	Complies with IEC 60721-3-3:2002
	Protection level	IP00 / IP20 / IP40
	Safety level	Complies with UL 508C-2004
	Cooling method	Liquid-cooled

IP20/IP40 Rated VFD with OLVC/CLVC Torque Control 1:1000 Speed Range LED/LCD Keyboard 2

IP20/IP40 Rated VFD with OLVC/CLVC Torque Control 1:1000 Speed Range LED/LCD Keyboard 3
