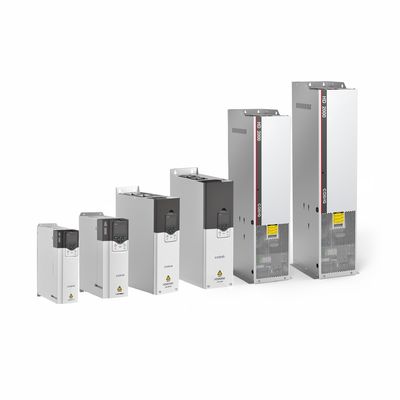

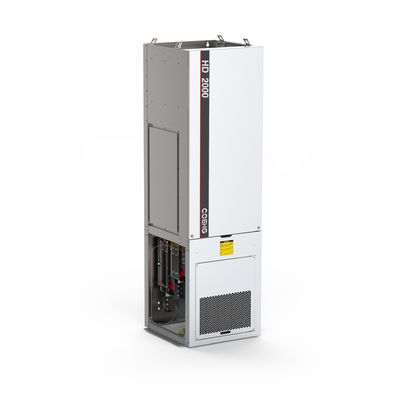

HD2000 Series Air-Cooled Inverter for Industrial Applications Max. Single Unit Power 1400kW and 1140V Voltage Levels

  • HD2000 Series Air-Cooled Inverter for Industrial Applications Max. Single Unit Power 1400kW and 1140V Voltage Levels
  • HD2000 Series Air-Cooled Inverter for Industrial Applications Max. Single Unit Power 1400kW and 1140V Voltage Levels
Place of Origin China
Brand Name COENG
Certification CE
Model Number HD2000-C-10-2
Minimum Order Quantity 1
Packaging Details Wooden box
Delivery Time 7-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Single/Multi-Drive Flexible System With Units/cabinets Supporting Two/four Quadrants Modular Design Enables Application Flexibility And Comprehensive System Integration
Rectifier Units Basic/Smart/PWM Rectifier Units For Versatile Power Conversion Max. Single Unit Power 1400kW (Air-cooled), 2800kW (Liquid-cooled)
Voltage Levels 400V, 690V, 1140V, 1380V Max. Parallel Operation Power 11200kW (Air-cooled), 22400kW (Liquid-cooled)
Highlight

1400kW Air-Cooled Inverter

,

Industrial Applications Air-Cooled Inverter

,

1140V Air-Cooled Inverter
Leave a Message
Product Description
   PERFORMANCE CHARACTERISTICS

Reliable Engineering Design


.Highly redundant control and power systems

.Extended lifespan of quick-wear heat dissipationparts
.Innovative high thermal capacity radiator to withstand strong impact loads.

.Optical fiber cables used for control system and power units for resistance to interference

.lsolation of heat dissipation channels from internalcomponents to protect components and better adaptto environment



Modular Design for EasyMaintenance



.Easy maintenance as no special tools needed

.Enabling all modules to be maintained from thefront

.Intelligent fault diagnosis system to locate faultsquickly



High Adaptability



.Single-/multi-drive system in the form of units/cabinets with two/four quadrants

.Comprehensive rectifier units: Basic/Smart/PWM rectifier unit

.Strong grid adaptability, support grid wide range of input

.Normal operation under lEC 60721 class 3M5 mechanical conditions

.Precise mechanical desig



Customizable CommunicationProtocols



.Including profibus-DP, CANopen, profinet lO,modbus RTU, modbus TCP etherCAT, etherNet/ lPcontrolNet and deviceNet,etc.

.hopelnsight background quick debugging software,including batch parameter settings, fault data downloading and waveform analysis, high-speed oscilloscope and editing



Rich Tools for Human-Machine Interaction



.Configurable LCD keypad panel supporting setting parameters and displaying system information

.Supporting connection to hopelnsight via PC forintelligent fault recording and diagnosis



Model HD2000 Series Low Voltage Engineering Inverter(Liquid-cooled)
Basic Rectifier Input voltage 4:380V～480V,6:500V～690V
Input frequency (50Hz/60Hz)±6%
Output voltage Input voltage * 1.32 (Under full-load condition)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥99% Efficiency
Protection eunctions Protection functions: Overheating protection, soft-start protection, Interlock
protection, and more.
Intelligent rectifier Input voltage 4:380V ~ 480V,6: 500V ~ 690V
Input frequency 47 ~ 63Hz
Output voltage Input voltage * 1.3 (Under full-load condition)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥98.5% Efficiency
Protection functions Protection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more
PWM rectifier Input voltage 4:380V~480V,6:500V~690V,9:1140V,A:1380V
Input frequency 47 ~ 63Hz
Output voltage Input voltage * 1.5 (Under rated conditions)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥98% Efficiency (Including LCL filter unit)
Power factor Adjustable (Factory setting at 1)
Protection functions Protection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more.
Inversion Rated Input voltage 4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc,
A:1488Vdc~2200Vdc
Output voltage 0 ~ Rectifier AC input voltage
Output frequency 0 ~ 500Hz
Speed range V/F:1:50 OLVC:1:200 CLVC:1:1000
Speed stability OLVC:0.2% CLVC:0.01%
Speed fluctuation OLVC:0.2% CLVC:0.1%
Starting torque OLVC:150%(0.5Hz) CLVC:200%(0Hz)
Torque control V/F: Unsupported OLVC:Supported CLVC: supported
Torque accuracy OLVC:5% CLVC:5%
Torque response time OLVC:5ms CLVC:5ms
Speed response time OLVC:100ms CLVC:100ms
Dynamic speed drop equivalent OLVC:0.5%*s CLVC:0.3%*s
Environmental conditions Temperature -15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies
Humidity 5% ~ 95% Mon-condensing
Altitude ≤4000m, Derating applies from 2000m to 4000m
Mechanical data Anti-vibration performance Complies with IEC 60721-3-3:2002
Protection level IP00 / IP20 / IP40
Safety level Complies with UL 508C-2004
Cooling method Liquid-cooled




HD2000 Series Air-Cooled Inverter for Industrial Applications Max. Single Unit Power 1400kW and 1140V Voltage Levels 0

HD2000 Series Air-Cooled Inverter for Industrial Applications Max. Single Unit Power 1400kW and 1140V Voltage Levels 1

HD2000 Series Air-Cooled Inverter for Industrial Applications Max. Single Unit Power 1400kW and 1140V Voltage Levels 2
