HV510 IP20 VFD Built-in C3 Filter Supports Both Asynchronous And Synchronous Motors

  • HV510 IP20 VFD Built-in C3 Filter Supports Both Asynchronous And Synchronous Motors
  • HV510 IP20 VFD Built-in C3 Filter Supports Both Asynchronous And Synchronous Motors
  • HV510 IP20 VFD Built-in C3 Filter Supports Both Asynchronous And Synchronous Motors
  • HV510 IP20 VFD Built-in C3 Filter Supports Both Asynchronous And Synchronous Motors
Place of Origin China
Brand Name COENG
Certification EC
Model Number HV510
Minimum Order Quantity 1
Packaging Details Carton, plywood case
Delivery Time 10-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000/sets

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 380V (-15%) - 480V (+10%), Three-phase Input Power Frequency (50Hz/60Hz)±5%
Input Voltage Imbalance ≤3% Output Voltage 0V-input Voltage
Output Frequency 0Hz-1500Hz Protection Rating IP20
Cooling Method Air Cooling Humidity 15%-95%, No Condensation
Highlight

Built-in C3 Filter VFD

,

Synchronous Motors VFD

,

Asynchronous Motors VFD
Leave a Message
Product Description

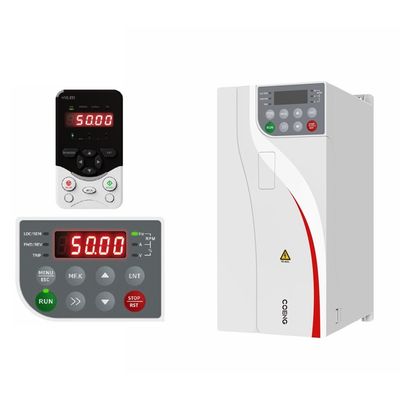

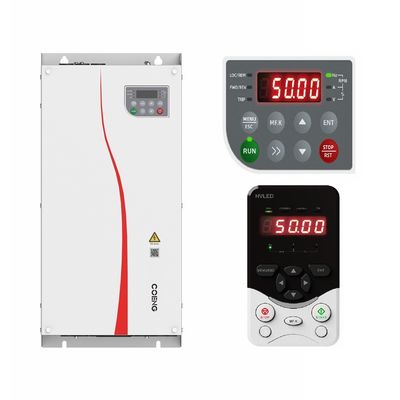

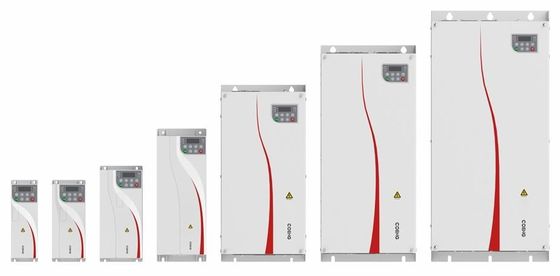

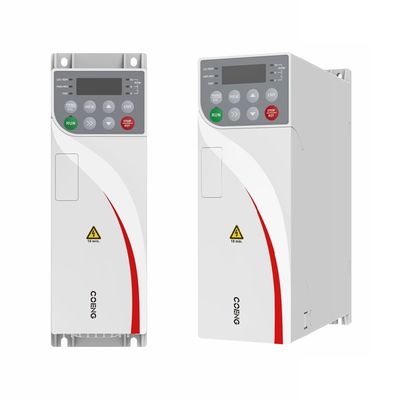

   HV510 Series High-Performance Inverter



The HV510 series inverters (the "HV510") are Hopewind's new generation of high performance vector inverters. They adopt new high-performance open and closed-loop vector control technology and support asynchronous motor and permanent magnet synchronous motor drive control. Their excellent quality, powerful performance, and high power density design enhance the products' ease of use, reliability, environmental adaptability, functional diversity and application flexibility in industrial scenarios. Their design criteria have been improved and their space minimized, comprehensively upgrading the user experience.



   High Safety and Reliability

• Innovative independent air duct design
• Efficient and precise thermal simulation design
• Rigorous temperature rise testing and pre-shipment load aging testing
• Automatic spraying process using conformal coating
• Comprehensive protection functions



   High Adaptability

• Wide grid adaptation design
• Built-in C3 filter
• EMC ground disconnection design
• Configured with a built-in brake unit
• Compact type design



   Advanced Control Technology

• V/F, OLVC (open-loop vector control), CLVC (closed-loop vector control)
• Supports both asynchronous and synchronous motors
• Supports speed and torque mode control of motors
• Supports switchover between two groups of motor parameters



   Excellent Performance

• Accurate auto-tuning ability of motor parameters
• Supports DC braking and dynamic braking
• Heavy load application: 150% for 60s,Light load application: 110% for 60s
• Supports major communication protocols, including Profibus-DP, Profinet IO,etc
• Diversified expansion functions , Supports I/O terminal card, Communication card,etc



   Special application functions

• Output frequency up to 1,500 Hz
• Master-slave control function
• Restart upon power failure function
• Position lock function
• Wobble function function
• Encoder running in redundancy function



   Autonomous quick debugging

• Background quick debugging software
• Support inverters event recording and 12-channel oscilloscope waveform recording
• Support Parameter editing, status monitoring, fault data and waveform download



HV510 IP20 VFD Built-in C3 Filter Supports Both Asynchronous And Synchronous Motors 0

HV510 IP20 VFD Built-in C3 Filter Supports Both Asynchronous And Synchronous Motors 1

HV510 IP20 VFD Built-in C3 Filter Supports Both Asynchronous And Synchronous Motors 2

   Main parameter



Item Description and Technical Data
Input voltage 380V (-15%) – 480V (+10%)/three phases
Input power supply frequency (50Hz/60Hz) ±5%
Input voltage imbalance ≤ 3%
Output voltage 0 V to input voltage
Output frequency 0 Hz–1,500Hz
Motor type Asynchronous motor, permanent magnet synchronous motor
Control mode V/F, OLVC (open-loop vector control), CLVC (closed-loop vector control)
Speed range 1:100 for V/F; 1:200 for OLVC; 1:1000 for CLVC
Startup torque VF: 100% (0.5Hz); OLVC: 150% (0.25Hz); CLVC: 200% (0Hz)
Torque precision ±5% (OLVC, above 5Hz), ±3% (CLVC)
Torque ripple ≤ ±5% under vector control
Speed stabilizing precision OLVC: 0.2%; CLVC: 0.01%
Torque response ≤ 5 ms under vector control
Acceleration and deceleration time 0.0s–3200.0s; 0.0min–3200.0 min
Torque boost 0.0%–30.0%
Overload capacity Heavy load application: 150% for 1min/5min, 200% for 3 s/5min
Light load application: 110% for 1min/5min, 150% for 10 s/5min
V/F curves Straight-line type, multi-point type, V/F half separation mode,V/F complete separation mode
Input frequency resolution Digital setting : 0.01Hz ; analog setting : maximum frequency ×0.025%
Acceleration and deceleration curves Straight-line and S-curve acceleration and deceleration modes with four types of acceleration and deceleration time and one type of emergency stop deceleration time
Jog control In some applications, the inverter can run briefly at low speed to test the condition of the equipment
Torque control Torque control supported during vector control
Simple PLC and multi-segment speed 16-segment speed operation via control terminals
Built-in PID Easy implementation of closed-loop process control systems
Virtual IO 8 groups of virtual VDI/VDO, 3 groups of AI as DI, enabling simple logic control
Overvoltage and overcurrent stall control Automatic limitation of current and voltage during operation to prevent frequent tripping due to overcurrent or overvoltage
DC braking Startup DC braking and shutdown DC braking
Pre-excitation When the inverter starts up, pre-excitation of the motor establishes a magnetic field inside the motor that can effectively improve the torque characteristics of the motor during startup
Overexcitation This can effectively inhibit the rise of bus voltage during deceleration to avoid frequent overvoltage alerts, and enable quick stop upon power failure
Speed tracking Speed tracking is supported for both asynchronous and synchronous motors and for both vector control and V/F control
Protection functions Overvoltage suppression, undervoltage suppression, V/F overcurrent suppression, short to ground, phase loss, detection of excessive speed deviation, overvoltage, overcurrent, undervoltage, overload, over-heating, startup, bus undervoltage, bus overvoltage, etc
