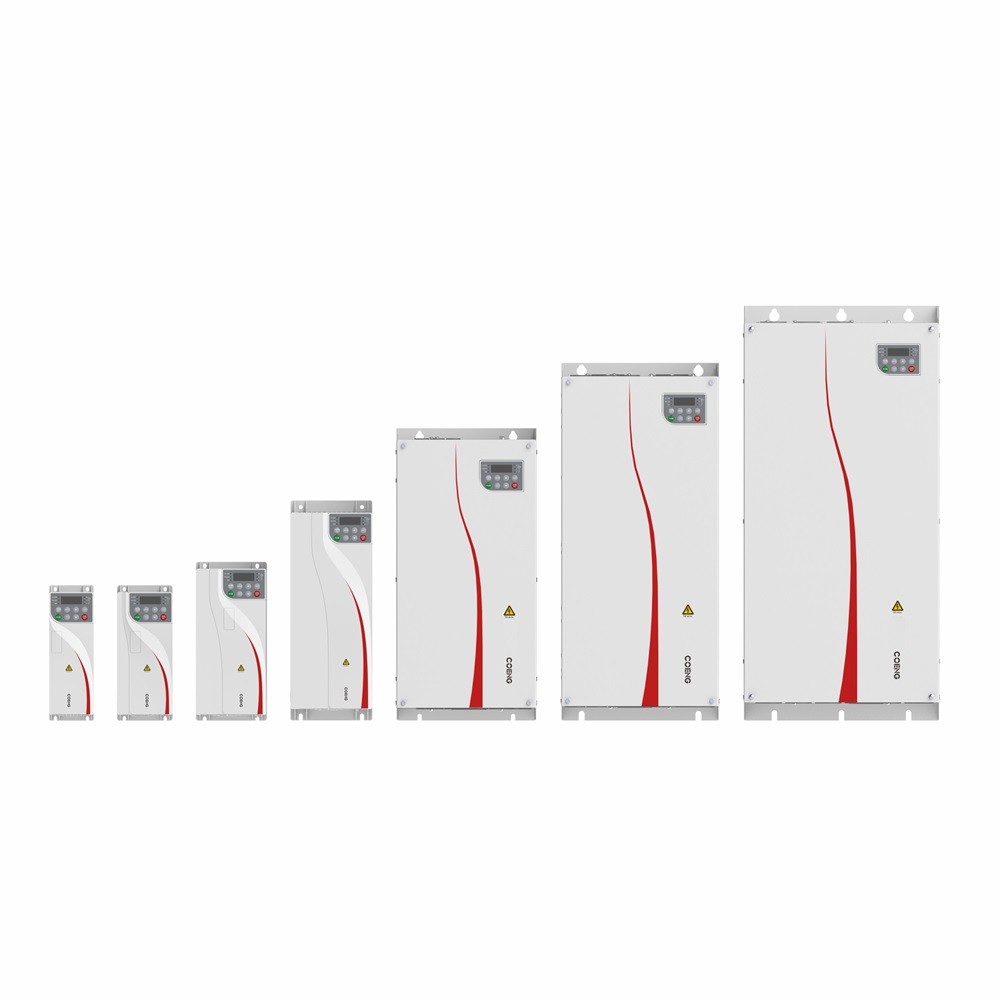

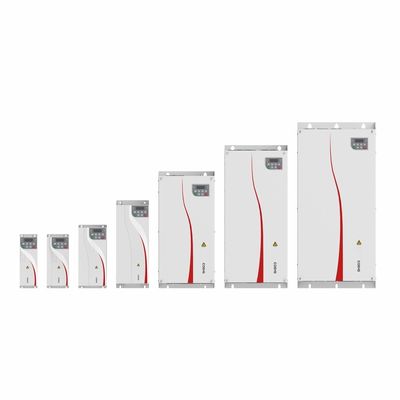

Efficiency Air Cooling Frequency Drive Inverter Cabinet With Modbus RTU Communication Protocol
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV510-1 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling Mode | Air Cooling | Installation Method | Installed In A Cabinet |
|---|---|---|---|
| Communication Protocol | Modbus RTU (standard Configuration); Profibus-DP, CANopen, Profinet IO, Modbus TCP/IP, EtherCAT, EtherNet/IP (optional Configuration) | Torque Boost | 0.0%-30.0% |
| Topology | Two Quadrants | Number Of Phases | Three Phase |
| Fixed Length Control | Fixed Length Control | Simple PLC, Multi-speed Reference | 16 Speed Segments Supported Through Control Terminals |
| Highlight | Air Cooling Frequency Drive Inverter,Frequency Drive Inverter Cabinet,modbus frequency inverter |
||
Product Description
Efficiency Air Cooling Frequency Drive Inverter Installed In A Cabinet with Modbus RTU Communication Protocol
Efficiency Air Cooling Frequency Drive Inverter Product Description:
The Frequency Drive Inverter is a three-phase Variable Frequency Inverter that can operate at altitudes of up to 1000m without any need for derating. For altitudes between 1000-3000m, the inverter is designed to operate with current derating of 1% per 100m increased altitude. This makes it an excellent choice for use in a wide range of challenging environments and demanding applications.
One of the key features of the Frequency Drive Inverter is its torque boost capability, which can be adjusted from 0.0%-30.0% to provideadditional torque when needed. This feature is particularly useful for heavy load applications where additional torque is necessary to maintain precise motor speed and performance.
The Frequency Drive Inverter also features an output voltage of 0V-input voltage, which provides exceptional control and precision for a wide range of motor applications. Whether you need to maintain precise motor speed and torque for heavy or light loads, the Frequency Drive Inverter is the ideal choice for your needs.
Efficiency Air Cooling Frequency Drive Inverter Features:
- Product Name: Frequency Drive Inverter
- Torque boost: 0.0%-30.0%
- Altitude:≤1000m: No Need For Derating
- 1000-3000m: With Current Derating By 1% Per 100m Increased
- Vibration: 3M3, IEC60721-3-3
- Starting torque:VF: 100% (0.5Hz), OLVC: 150% (0.5Hz), CLVC: 200% (0Hz)
- Multi-motor switchover: With 2 Sets Of Motor Parameters, The Switchover Between 2 Motors Can Be Realized
- Keywords: VFD Vector Inverter, Closed-loop vector VFD inverter, VFD
Efficiency Air Cooling Frequency Drive Inverter Technical Parameters:
|
Product Attribute |
Technical Parameter |
|
Product Name |
Frequency Drive Inverter |
|
Power Class |
7.5kW (heavy Load), 11kW (light Load)/15kW (heavy Load), 18.5kW (light Load) |
|
Cooling Method |
Air Cooling |
|
Speed Stability |
OLVC: 0.2%; CLVC: 0.1% |
|
Installation Method |
Installed In A Cabinet |
|
Motor Type |
Asynchronous Motor/Permanent Magnet Synchronous Motor |
|
Torque Response |
≤ 5ms, In Vector Control Mode |
|
Input Voltage Imbalance |
≤3% |
|
Topology |
Two Quadrants |
|
Operating Place |
Indoors Without Direct Sunlight, Flammable And Corrosive Gases, Liquids And Conductive Particles, Etc. |
|
Automatic Voltage Regulation (AVR) |
Automatically Keeps The Output Voltage Constant When Grid Voltage Varies Within A Certain Range |
|
Product Type |
Open-loop Vector VFD Inverter, VFD Vector Inverter |
Efficiency Air Cooling Frequency Drive Inverter Features:
COENG HV510 VFD Vector Inverter has a torque precision of ≤±5% in Vector Control Mode, which makes it ideal for applications that require high-precision torque control. The output voltage of this product ranges from 0V to input voltage, and the output frequency ranges from 0Hz to 1500Hz. This allows the inverter to be used in a wide range of applications, including motor speed control, energy-saving, and automatic control systems.
COENG HV510 VFD Vector Inverter is an open-loop vector VFD inverter that is designed to provide high performance and reliability in industrial control applications. It is suitable for use in a variety of scenarios, including fan pumps, compressors, and conveyors. The product is easy to install and operate, making it an ideal choice for those who are new to using inverters.
Efficiency Air Cooling Frequency Drive Inverter Support and Services:
The Frequency Drive Inverter product technical support and services include:
- Installation and commissioning support
- Product troubleshooting and diagnosis
- Repair and maintenance services
- Product software upgrades
- Technical documentation and training
- 24/7 customer support via phone or email
Our team of experienced engineers and technicians are dedicated to providing high-quality technical support and services to ensure optimal performance and efficiency of your Frequency Drive Inverter product.
