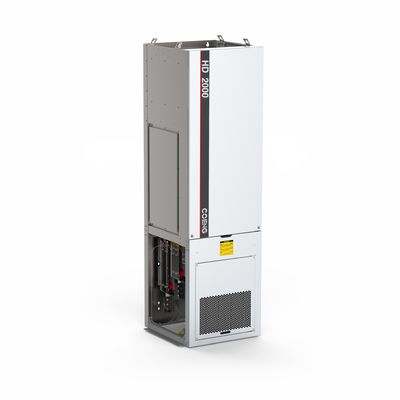

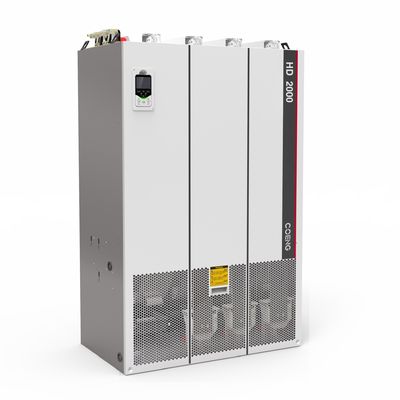

Reliable and Robust VFD Variable Frequency Drive HD2000 Inverter with Modular Hardware and Software Design

  • Reliable and Robust VFD Variable Frequency Drive HD2000 Inverter with Modular Hardware and Software Design
  • Reliable and Robust VFD Variable Frequency Drive HD2000 Inverter with Modular Hardware and Software Design
  • Reliable and Robust VFD Variable Frequency Drive HD2000 Inverter with Modular Hardware and Software Design
  • Reliable and Robust VFD Variable Frequency Drive HD2000 Inverter with Modular Hardware and Software Design
  • Reliable and Robust VFD Variable Frequency Drive HD2000 Inverter with Modular Hardware and Software Design
Place of Origin China
Brand Name COENG
Certification CE
Model Number HD2000-C-10-19
Minimum Order Quantity 1
Packaging Details Wooden case
Delivery Time 10-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keyboard LED/LCD Rated Power 0.4-750KW
Outtype Triple Special Function Multi Step Speed
Cooling Method Air Or Liquid Cooling Output Voltage 3-phase 0-1000 V
Analogue Inputs 2 Relay 2 Relays
Highlight

Modular Hardware VFD Variable Frequency Drive

,

Robust VFD Variable Frequency Drive

,

Reliable VFD Variable Frequency Drive
Leave a Message
Product Description

Reliable Engineering Design

• Highly redundant control and power systems
• Extended lifespan of quick-wear heat dissipation parts
• Innovative high thermal capacity radiator to withstand strong impact loads
• Optical fiber cables used for control system and power units for resistance to interference

• Isolation of heat dissipation channels from internal components to protect components and better adapt to environment



Modular Design for Easy Maintenance

• Easy maintenance as no special tools needed
• Enabling all modules to be maintained from the front
• Intelligent fault diagnosis system to locate faults quickly



High Adaptability

• Single-/multi-drive system in the form of units/cabinets with two/four quadrants
• Comprehensive rectifier units: Basic/Smart/PWM rectifier unit
• Strong grid adaptability, support grid wide range of input
• Normal operation under IEC 60721 class 3M5 mechanical conditions
• Precise mechanical design for stronger anti-seismic capability



Customizable Communication Protocols

• Including profibus-DP, CANopen, profinet IO, modbus RTU, modbus TCP, etherCAT, etherNet/ IP, controlNet and deviceNet,etc
• hopeInsight background quick debugging software,including batch parameter settings, fault data downloading and waveform analysis, high-speed oscilloscope and editing



Rich Tools for Human-Machine Interaction

• Configurable LCD keypad panel supporting setting parameters and displaying system information
• Supporting connection to hopeInsight via PC for intelligent fault recording and diagnosis

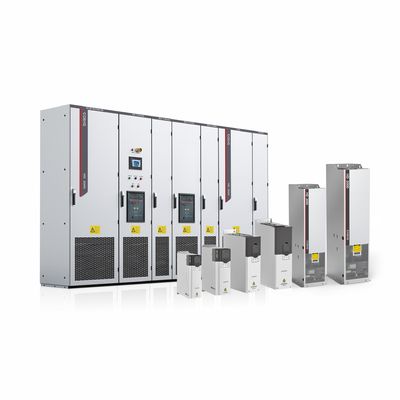

Reliable and Robust VFD Variable Frequency Drive HD2000 Inverter with Modular Hardware and Software Design 0Reliable and Robust VFD Variable Frequency Drive HD2000 Inverter with Modular Hardware and Software Design 1

MAIN PARAMETERS



Model HD2000 Series Low Voltage Engineering Inverter(Liquid-cooled)
Basic Rectifier Input voltage 4:380V～480V,6:500V～690V
Input frequency (50Hz/60Hz)±6%
Output voltage Input voltage * 1.32 (Under full-load condition)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥99% Efficiency
Protection eunctions Protection functions: Overheating protection, soft-start protection, Interlock
protection, and more.
Intelligent rectifier Input voltage 4:380V ~ 480V,6: 500V ~ 690V
Input frequency 47 ~ 63Hz
Output voltage Input voltage * 1.3 (Under full-load condition)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥98.5% Efficiency
Protection functions Protection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more
PWM rectifier Input voltage 4:380V~480V,6:500V~690V,9:1140V,A:1380V
Input frequency 47 ~ 63Hz
Output voltage Input voltage * 1.5 (Under rated conditions)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥98% Efficiency (Including LCL filter unit)
Power factor Adjustable (Factory setting at 1)
Protection functions Protection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more.
Inversion Rated Input voltage 4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc,
A:1488Vdc~2200Vdc
Output voltage 0 ~ Rectifier AC input voltage
Output frequency 0 ~ 500Hz
Speed range V/F:1:50 OLVC:1:200 CLVC:1:1000
Speed stability OLVC:0.2% CLVC:0.01%
Speed fluctuation OLVC:0.2% CLVC:0.1%
Starting torque OLVC:150%(0.5Hz) CLVC:200%(0Hz)
Torque control V/F: Unsupported OLVC:Supported CLVC: supported
Torque accuracy OLVC:5% CLVC:5%
Torque response time OLVC:5ms CLVC:5ms
Speed response time OLVC:100ms CLVC:100ms
Dynamic speed drop equivalent OLVC:0.5%*s CLVC:0.3%*s
Environmental conditions Temperature -15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies
Humidity 5% ~ 95% Mon-condensing
Altitude ≤4000m, Derating applies from 2000m to 4000m
Mechanical data Anti-vibration performance Complies with IEC 60721-3-3:2002
Protection level IP00 / IP20 / IP40
Safety level Complies with UL 508C-2004
Cooling method Liquid-cooled

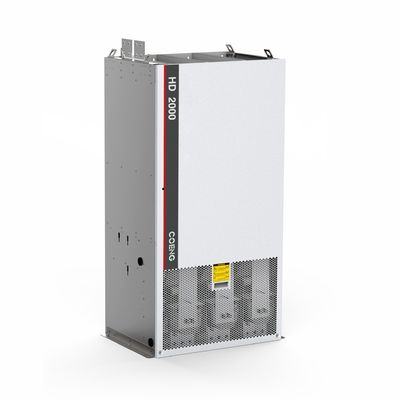

Reliable and Robust VFD Variable Frequency Drive HD2000 Inverter with Modular Hardware and Software Design 2

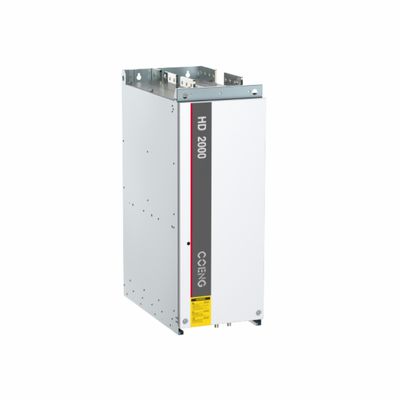

Reliable and Robust VFD Variable Frequency Drive HD2000 Inverter with Modular Hardware and Software Design 3
