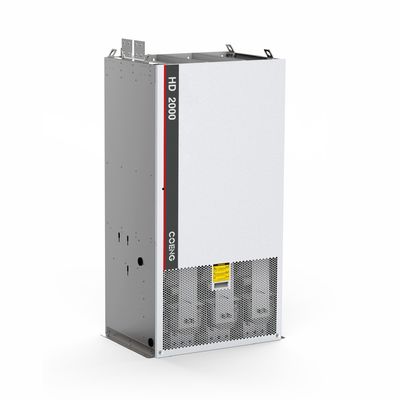

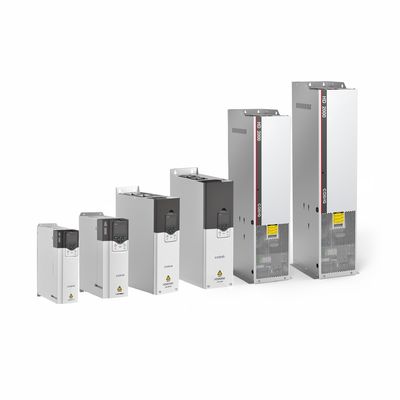

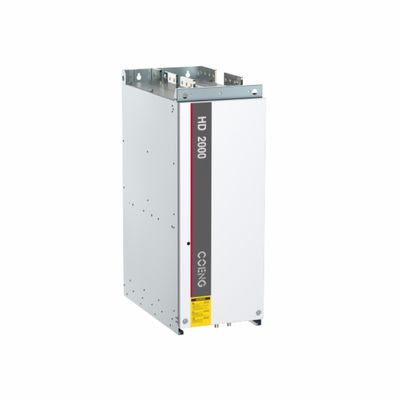

1400kw 11200kw HD2000 Series Low Voltage Engineering Inverter Air-cooled 400V 600V VDF

  • 1400kw 11200kw HD2000 Series Low Voltage Engineering Inverter Air-cooled 400V 600V VDF
  • 1400kw 11200kw HD2000 Series Low Voltage Engineering Inverter Air-cooled 400V 600V VDF
  • 1400kw 11200kw HD2000 Series Low Voltage Engineering Inverter Air-cooled 400V 600V VDF
  • 1400kw 11200kw HD2000 Series Low Voltage Engineering Inverter Air-cooled 400V 600V VDF
Place of Origin China
Brand Name COENG
Certification CE
Model Number HD2000-C-10-12
Minimum Order Quantity 1
Packaging Details Carton, plywood case
Delivery Time 10-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model HD2000-C-10-12 Special Function Multi Step Speed
Oem Acceptable Outtype Triple
Product Variable Frequency Inverters Analog Input Within 0.2% Of Maximum Output Frequency
Working Efficiency Very Good Keyboard LED/LCD
Highlight

Air-cooled VDF

,

Low Voltage Engineering Inverter

,

1400kw VDF
Leave a Message
Product Description

   Reliable Engineering Design

• Highly redundant control and power systems
• Extended lifespan of quick-wear heat dissipation parts
• Innovative high thermal capacity radiator to withstand strong impact loads
• Optical fiber cables used for control system and power units for resistance to interference

• Isolation of heat dissipation channels from internal components to protect components and better adapt to environment



   Modular Design for Easy Maintenance

• Easy maintenance as no special tools needed
• Enabling all modules to be maintained from the front
• Intelligent fault diagnosis system to locate faults quickly



   High Adaptability

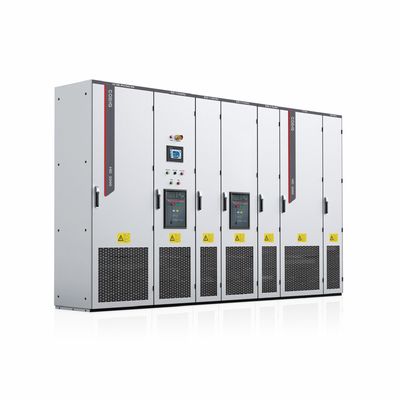

• Single-/multi-drive system in the form of units/cabinets with two/four quadrants
• Comprehensive rectifier units: Basic/Smart/PWM rectifier unit
• Strong grid adaptability, support grid wide range of input
• Normal operation under IEC 60721 class 3M5 mechanical conditions
• Precise mechanical design for stronger anti-seismic capability



   Customizable Communication Protocols

• Including profibus-DP, CANopen, profinet IO, modbus RTU, modbus TCP, etherCAT, etherNet/ IP, controlNet and deviceNet,etc
• hopeInsight background quick debugging software,including batch parameter settings, fault data downloading and waveform               analysis, high-speed oscilloscope and editing



   Rich Tools for Human-Machine Interaction

• Configurable LCD keypad panel supporting setting parameters and displaying system information
• Supporting connection to hopeInsight via PC for intelligent fault recording and diagnosis

1400kw 11200kw HD2000 Series Low Voltage Engineering Inverter Air-cooled 400V 600V VDF 01400kw 11200kw HD2000 Series Low Voltage Engineering Inverter Air-cooled 400V 600V VDF 1

   MAIN PARAMETERS



Model HD2000 Series Low Voltage Engineering Inverter(Liquid-cooled)
Basic Rectifier Input voltage 4:380V～480V,6:500V～690V
Input frequency (50Hz/60Hz)±6%
Output voltage Input voltage * 1.32 (Under full-load condition)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥99% Efficiency
Protection eunctions Protection functions: Overheating protection, soft-start protection, Interlock
protection, and more.
Intelligent rectifier Input voltage 4:380V ~ 480V,6: 500V ~ 690V
Input frequency 47 ~ 63Hz
Output voltage Input voltage * 1.3 (Under full-load condition)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥98.5% Efficiency
Protection functions Protection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more
PWM rectifier Input voltage 4:380V~480V,6:500V~690V,9:1140V,A:1380V
Input frequency 47 ~ 63Hz
Output voltage Input voltage * 1.5 (Under rated conditions)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥98% Efficiency (Including LCL filter unit)
Power factor Adjustable (Factory setting at 1)
Protection functions Protection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more.
Inversion Rated Input voltage 4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc,
A:1488Vdc~2200Vdc
Output voltage 0 ~ Rectifier AC input voltage
Output frequency 0 ~ 500Hz
Speed range V/F:1:50 OLVC:1:200 CLVC:1:1000
Speed stability OLVC:0.2% CLVC:0.01%
Speed fluctuation OLVC:0.2% CLVC:0.1%
Starting torque OLVC:150%(0.5Hz) CLVC:200%(0Hz)
Torque control V/F: Unsupported OLVC:Supported CLVC: supported
Torque accuracy OLVC:5% CLVC:5%
Torque response time OLVC:5ms CLVC:5ms
Speed response time OLVC:100ms CLVC:100ms
Dynamic speed drop equivalent OLVC:0.5%*s CLVC:0.3%*s
Environmental conditions Temperature -15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies
Humidity 5% ~ 95% Mon-condensing
Altitude ≤4000m, Derating applies from 2000m to 4000m
Mechanical data Anti-vibration performance Complies with IEC 60721-3-3:2002
Protection level IP00 / IP20 / IP40
Safety level Complies with UL 508C-2004
Cooling method Liquid-cooled




1400kw 11200kw HD2000 Series Low Voltage Engineering Inverter Air-cooled 400V 600V VDF 2



1400kw 11200kw HD2000 Series Low Voltage Engineering Inverter Air-cooled 400V 600V VDF 31400kw 11200kw HD2000 Series Low Voltage Engineering Inverter Air-cooled 400V 600V VDF 4
