HV350 Series General-Purpose Inverter 380V-480V Input 0-600Hz Output Frequency

Place of Origin	China
Brand Name	COENG
Certification	CE
Model Number	HV350
Minimum Order Quantity	1
Packaging Details	Carton, plywood case
Delivery Time	10-30 working day
Payment Terms	L/C, T/T, Western Union
Supply Ability	20000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Input Voltage	Input Voltage: 380V (-15%) To 480V (+10%) Phase: Three-phase	Input Power Frequency	50Hz/60Hz ±5%
Output Voltage	0V~Input Voltage	Output Frequency	0～600Hz
Master Control Motor Type	Asynchronous Motor	Master Control Speed Range	1:10 V/F；1:100 OLVC；1:1000 CLVC
Master Control Mode	V/F, OLVC(Open-loop Vector Control), CLVC(Closed-loop Vector Control)
Highlight	HV350 Series General-Purpose Inverter , 0-600Hz General-Purpose Inverter , 380V-480V General-Purpose Inverter

Leave a Message

Product Description

The HV350 Series inverter is a newly developed general-purpose vector inverter by Hopewind Electric. It adopts advanced open-loop control technology, supporting asynchronous motor drive control. On the design principles of abundant software functions, better performance and higher reliability, this inverter features smaller volume with improved expandability, more communication functions and easier operation.

PERFORMANCE CHARACTERISTICS

High Reliability

• Innovative Independent Air Duct,protect the inverter from dusts and sundries
• Applying efficient and precise thermal simulation software
• Adopting advanced thermal testing, validation technology and equipment
• Rigorous full-load and overload testing procedure
• All products passing high-temperature load aging test before ex-work
• Three-proof Paint Automatic Spraying Process

High Adaptability

• Wide Voltage Range,Three-phase 380V ~ 480V
• Built-in C3 filter
• Simple and user-friendly EMC grounding design
• Book-shaped design with the volume 40% less than traditional models
• Supporting side-by-side installation of multiple inverters

Outstanding Performance

• Supporting the drive control of three-phase asynchronous motors
• Supporting V/F control, open-loop vector control
• Comprehensive motor auto-tuning functions, including dynamic, static and static+dynamic auto-tuning

Various Expansion Functions

• Optional I/O terminal expansion cards
• Support Profibus-DP, Profinet IO, CANopen, Modbus TCP/IP, Ethercat, EtherNet/IP, and other bus communications

Industry-specific Ease of Use

• Models of 22kw and below are equipped with a standard built-in braking unit while models of 30kw to 560kw with an optional one
• Supporting process PID control which can be applied in constant temperature control, constant pressure control and tension control
• Supporting wobble function which can be applied in fiber and textile industries
• Supporting random PWM depth to reduce motor noise
• Supporting V/F Supporting V/F half separation and complete separation modes

Autonomous Rapid Debugging

• Supporting Background Software for Quick Debugging
• Supporting event logs and fault record

Item		Specification Description and Technical Data
Power input/output	Input voltage	Input voltage: 380V (-15%) to 480V (+10%) Phase: Three-phase
	Input power frequency	50Hz/60Hz ±5%
	Input voltage imbalance	≤3%
	Output voltage	0V~Input voltage
	Output frequency	0～600Hz
Master control performance	Motor type	Asynchronous motor
	Control mode	V/F, OLVC(Open-loop Vector Control)
	Speed range	1:100 V/F; 1:200 OLVC
	Starting torque	OLVC: 150%(0.25Hz)
	Torque precision	±5% (OLVC, above 5Hz)
	Torque ripple	≤±5%, in Vector control mode
	Speed stability	OLVC, 0.2%
	Torque response	≤5ms, in Vector control mode
	Acceleration/deceleration time	0.0s~3200.0s; 0.0min~3200.0min
	Torque boost	0.0%~30.0%
	Overload capacity	G type: 150% 1min/5min; 180%10s/5min; P type: 110% 1min/5min; 150% 10s/5min
	V/F curve	Straight-line type, multi-point type, V/F Half separation mode, V/F complete separation mode
	Input frequency resolution	Digital setting: 0.01Hz, Analog setting: maximum frequency ×0.025%
Main functions	Acceleration/deceleration curve	Straight line and S-curve
	Simple PLC, Multi-speed control	16 speed segments supported through control terminals
	Automatic voltage regulation (AVR)	Automatically keeps the output voltage constant when grid voltage varies within a certain range
	Fixed length control	Control with given length
	Built-in PID	Easily forms a closed-loop control system
	Multi-motor switching	Switchover between two groups of motor parameters to control the two motors
	Virtual I/O	8 groups of virtual VDI/VDO, 3 groups of AI as DI, enabling simple logic control
	Overvoltage/Overcurrent stall control	Automatic current and voltage limitation during operation preventing the inverter from tripping due to frequent overcurrent or overvoltage
	Restart after power failure	After power failure and restoration, the inverter waits for a set time before automatically running
	Quick current limiting	Avoids frequent overcurrent faults in the inverter
Power input/output	Frequency setting method	Keypad; terminal UP/DOWN; multi-reference; pulse reference; communication
	Analog input terminals	AI1; AI2: 0V~10V/ 0 (4)mA~20mA
	Digital input terminals	DI1-DI5, 5 programmable digital input terminals with opto-isolation, compatible with both sinking/sourcing inputs. DI5 supports high-speed pulse input with a maximum input frequency of 100kHz.
	Digital output terminals	Open-collector output; output voltage range: 0V~24V; current load capacity: 50mA. DO1 supports high-speed pulse output with a maximum output frequency of 100kHz.
	Analog output terminals	1-channel 0V ~ 10V/0(4)mA ~ 20mA
	Relay output	1-channel Form C contact, NO+NC
Communication	Communication protocols	Modbus RTU (standard configuration); Profibus-DP; Profinet IO; CANopen; Modbus TCP/IP; Ethercat; EtherNet/IP (optional configuration)
Ambient requirements	Altitude	≤1000m: no need for derating 1000~3000m: current derating by 1% per 100m increased
	Ambient temperature	-25℃～+40℃ (Running with derating allowed between 40~55)
	Humidity	15% ~ 95%, No condensation
	Vibration	3M3, IEC60721-3-3
	Storage temperature	−40°C~+70°C
	Installation place	Indoor, without direct sunlight, free from flammable, corrosive gases, liquids, and conductive particles.
Optional accessories		Communication expansion card, I/O terminal expansion cards
Protections		Protection against short circuit , overcurrent, overload, overvoltage, undervoltage, phase loss, overtemperature, external faults, etc.
Installation method		Installed in a cabinet
Protection rating		IP20
Cooling method		Air cooling

HV350 Product Selection Rated voltage: three-phase 380Vac (suitable for operating voltage range of 323V~528V)
Model	Heavy Load		Light Load		Frame Type
Model	Rated Power (kW)	Rated Output Current	Rated Power (kW)	Rated Output Current (A)	Frame Type
HV350-4T0.75G/1.5PB	0.75	2.5	1.5	4.2	FA
HV350-4T1.5G/2.2PB	1.5	4.2	2.2	5.8
HV350-4T2.2GB	2.2	5.8	-	-
HV350-4T4G/5.5PB	4	9.5	5.5	13	FB
HV350-4T5.5GB	5.5	13	-	-	FB
HV350-4T7.5G/11PB	7.5	17	11	25	FC
HV350-4T11GB	11	25	-	-	FC
HV350-4T15G/18PB	15	32	18.5	38	FD
HV350-4T18G/22PB	18.5	38	22	46
HV350-4T22GB	22	46	-	-
HV350-4T30G/37P(B)	30	60	37	75	FE
HV350-4T37G/45P(B)	37	75	45	91
HV350-4T45G/55P(B)	45	91	55	125
HV350-4T55G/75P(B)	55	125	75	150	FF
HV350-4T75G/90P(B)	75	150	90	180	FF
HV350-4T90G/110P(B)	90	180	110	210	FG
HV350-4T110G/132P(B)	110	210	132	250	FG

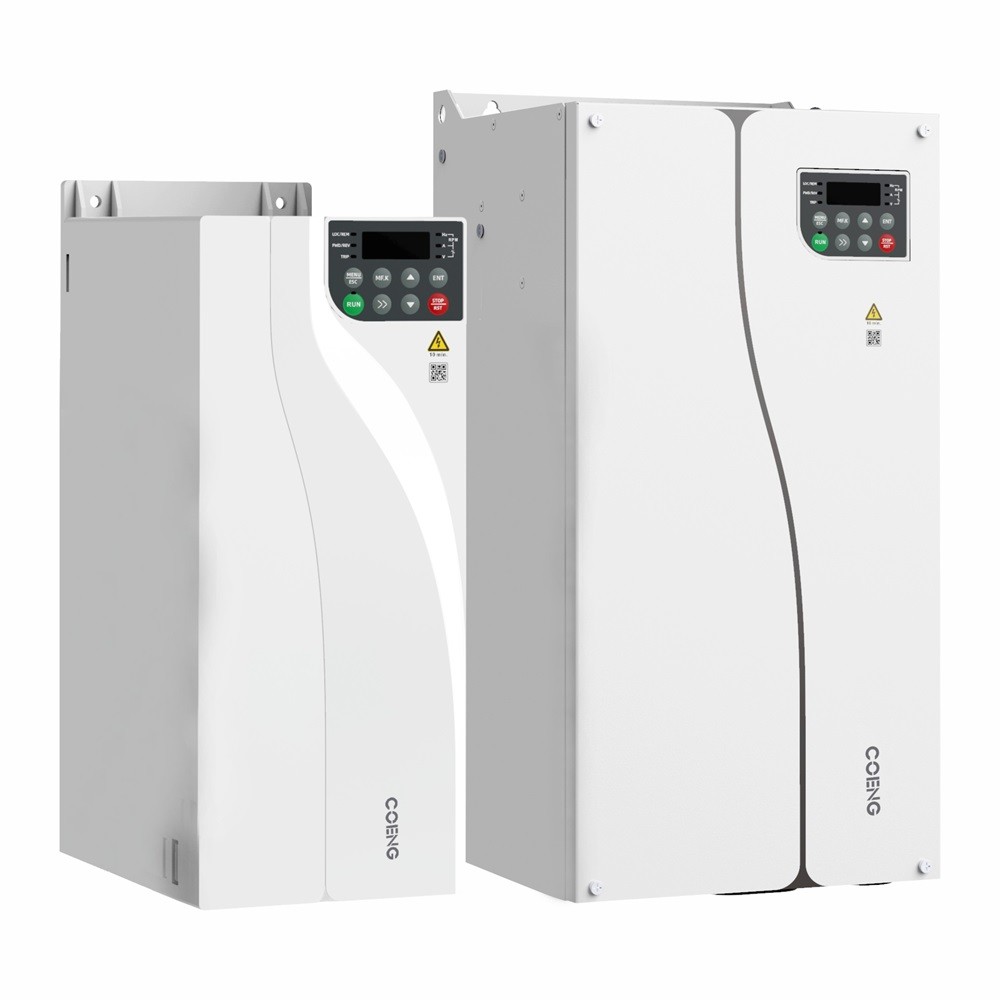

HV350 Series General-Purpose Inverter 380V-480V Input 0-600Hz Output Frequency 0

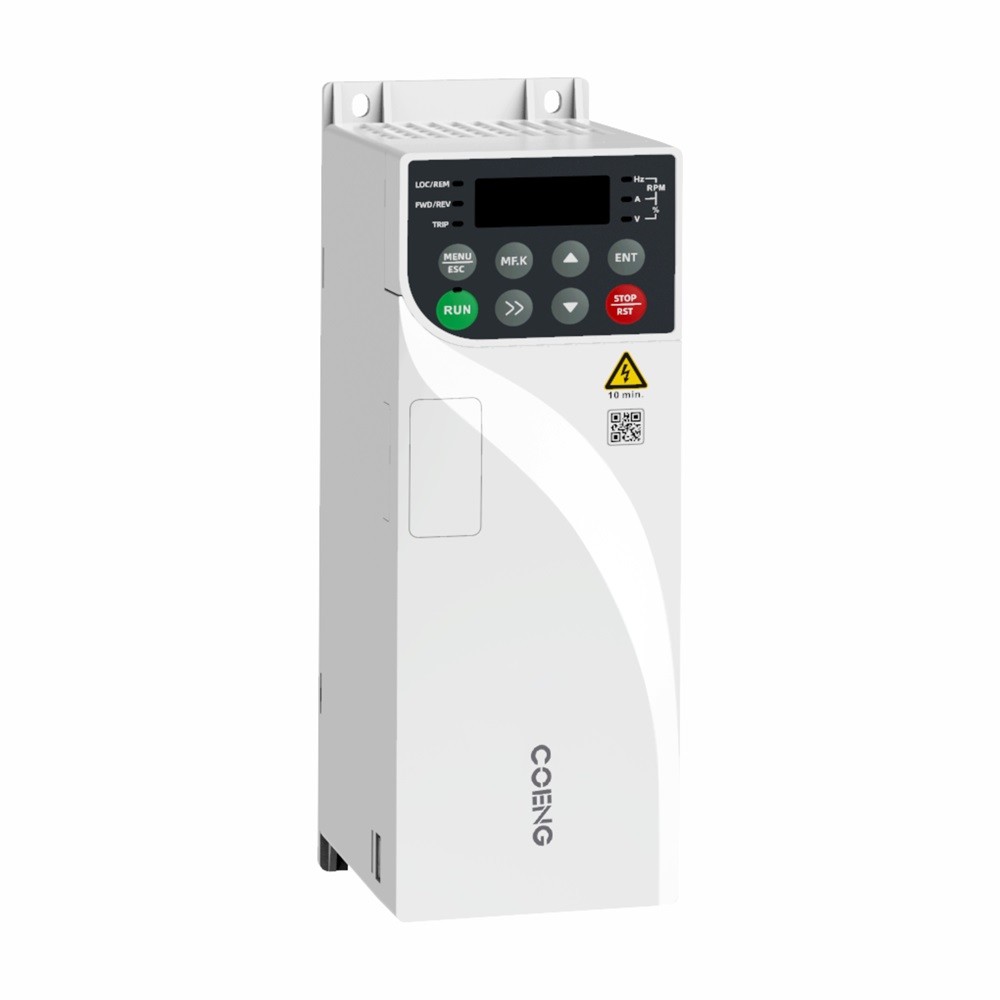

HV350 Series General-Purpose Inverter 380V-480V Input 0-600Hz Output Frequency 1
