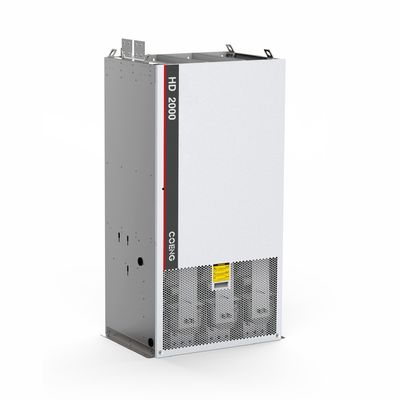

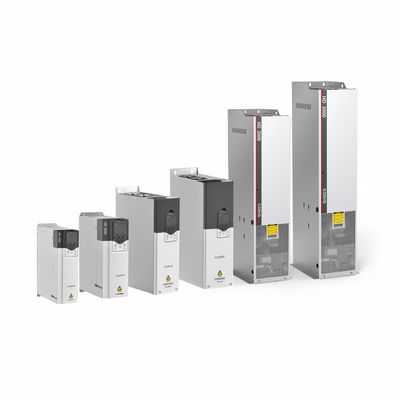

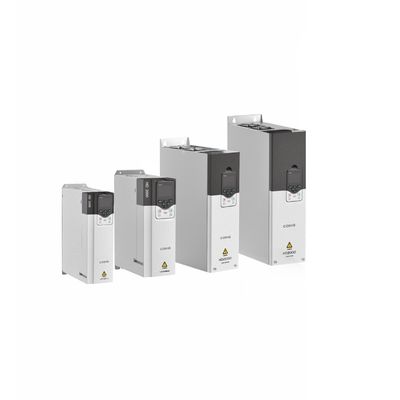

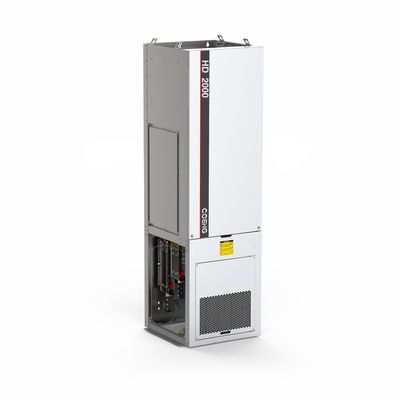

Very 1400kW 400V 690V 1140V 1380V 11200kW Series Low Voltage Engineering Inverter Air-cooled with 2 Analogue Inputs

  • Very 1400kW 400V 690V 1140V 1380V 11200kW Series Low Voltage Engineering Inverter Air-cooled with 2 Analogue Inputs
  • Very 1400kW 400V 690V 1140V 1380V 11200kW Series Low Voltage Engineering Inverter Air-cooled with 2 Analogue Inputs
  • Very 1400kW 400V 690V 1140V 1380V 11200kW Series Low Voltage Engineering Inverter Air-cooled with 2 Analogue Inputs
  • Very 1400kW 400V 690V 1140V 1380V 11200kW Series Low Voltage Engineering Inverter Air-cooled with 2 Analogue Inputs
  • Very 1400kW 400V 690V 1140V 1380V 11200kW Series Low Voltage Engineering Inverter Air-cooled with 2 Analogue Inputs
Place of Origin China
Brand Name COENG
Certification CE
Model Number HD2000-C-10-11
Minimum Order Quantity 1
Packaging Details Carton, plywood case
Delivery Time 10-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Analogue Inputs 2 Keyboard LED/LCD
Cooling Method Air Or Liquid Cooling Output Voltage 3-phase 0-1000 V
Power 30Kw/40hp Working Efficiency Very Good
Oem Acceptable Relay 2 Relays
Highlight

1400kW Low Voltage Engineering Inverter

,

1380V Low Voltage Engineering Inverter

,

1140V Low Voltage Engineering Inverter
Leave a Message
Product Description

   PERFORMANCE CHARACTERISTICS



   Reliable Engineering Design



• Highly redundant control and power systems
• Extended lifespan of quick-wear heat dissipation parts
• Innovative high thermal capacity radiator to withstand strong impact loads
• Optical fiber cables used for control system and power units for resistance to interference
• Isolation of heat dissipation channels from internal components to protect components and better adapt to environment



   Modular Design for Easy Maintenance



• Easy maintenance as no special tools needed
• Enabling all modules to be maintained from the front
• Intelligent fault diagnosis system to locate faults quickly



   High Adaptability



• Single-/multi-drive system in the form of units/cabinets with two/four quadrants
• Comprehensive rectifier units: Basic/Smart/PWM rectifier unit
• Strong grid adaptability, support grid wide range of input
• Normal operation under IEC 60721 class 3M5 mechanical conditions
• Precise mechanical design for stronger anti-seismic capability



   Customizable Communication Protocols



• Including profibus-DP, CANopen, profinet IO, modbus RTU, modbus TCP, etherCAT, etherNet/ IP, controlNet and deviceNet,etc
• hopeInsight background quick debugging software,including batch parameter settings, fault data downloading and waveform analysis, high-speed oscilloscope and editing



   Rich Tools for Human-Machine Interaction



• Configurable LCD keypad panel supporting setting parameters and displaying system information
• Supporting connection to hopeInsight via PC for intelligent fault recording and diagnosis



Model HD2000 Series Low Voltage Engineering Inverter(Air-cooled)
Basic Rectifier Input voltage 4:380V～480V,6:500V～690V
Input frequency (50Hz/60Hz)±6%
Output voltage Input voltage * 1.32 (Under full-load condition)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥99% Efficiency
Protection eunctions Protection functions: Overheating protection, soft-start protection, Interlock
protection, and more.
Intelligent rectifier Input voltage 4:380V ~ 480V,6: 500V ~ 690V
Input frequency 47 ~ 63Hz
Output voltage Input voltage * 1.3 (Under full-load condition)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥98.5% Efficiency
Protection functions Protection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more
PWM rectifier Input voltage 4:380V~480V,6:500V~690V,9:1140V,A:1380V
Input frequency 47 ~ 63Hz
Output voltage Input voltage * 1.5 (Under rated conditions)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥98% Efficiency (Including LCL filter unit)
Power factor Adjustable (Factory setting at 1)
Protection functions Protection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more.
Inversion Rated Input voltage 4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc,
A:1488Vdc~2200Vdc
Output voltage 0 ~ Rectifier AC input voltage
Output frequency 0 ~ 500Hz
Speed range V/F:1:50 OLVC:1:200 CLVC:1:1000
Speed stability OLVC:0.2% CLVC:0.01%
Speed fluctuation OLVC:0.2% CLVC:0.1%
Starting torque OLVC:150%(0.5Hz) CLVC:200%(0Hz)
Torque control V/F: Unsupported OLVC:Supported CLVC: supported
Torque accuracy OLVC:5% CLVC:5%
Torque response time OLVC:5ms CLVC:5ms
Speed response time OLVC:100ms CLVC:100ms
Dynamic speed drop equivalent OLVC:0.5%*s CLVC:0.3%*s
Environmental conditions Temperature -15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies
Humidity 5% ~ 95% Mon-condensing
Altitude ≤4000m, Derating applies from 2000m to 4000m
Mechanical data Anti-vibration performance Complies with IEC 60721-3-3:2002
Protection level IP00 / IP20 / IP40
Safety level Complies with UL 508C-2004
Cooling method Air-cooled




VFD Variable Frequency Drive Applications:

Variable Speed Drives for Industrial Machinery: The COENG HD2000-C-10-11 Variable Frequency Drive is perfect for controlling the speed of industrial machinery such as conveyor belts, pumps, and fans. The ability to adjust the speed of the motor can help to optimize the efficiency of the equipment, reduce energy consumption, and extend the lifespan of the machinery.



Adjustable Variable Frequency Drive for HVAC Systems: The COENG HD2000-C-10 Variable Frequency Drive can be used in HVAC systems to control the speed of fans and pumps. By adjusting the speed of the motor, the system can maintain a constant temperature while reducing energy consumption, which can lead to significant cost savings over time.



Constant Speed Variable Frequency Drive for Elevators: The COENG HD2000-C-10-11 Variable Frequency Drive can be used in elevator systems to maintain a constant speed. This can help to improve the safety and comfort of elevator passengers while also reducing energy consumption.



The COENG HD2000-C-10-11 Variable Frequency Drive has an analog input within 0.2% of the maximum output frequency, which allows for precise speed control. It also features two relays, which can be used for a variety of applications such as fault detection and alarm signaling. Made in China, this product is reliable and durable, making it an excellent choice for a wide range of applications.



In conclusion, the COENG HD2000-C-10-11 Variable Frequency Drive is a high-quality product that can be used in a variety of occasions and scenarios. Whether you need a variable speed drive for industrial machinery, an adjustable variable frequency drive for HVAC systems, or a constant speed variable frequency drive for elevators, this product is an excellent choice.

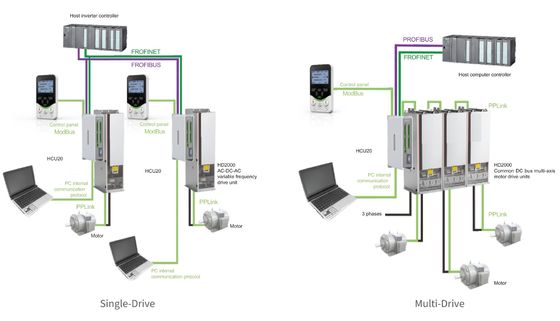

VFD Variable Frequency Drive Multi Drive Concept Diagram:

Very 1400kW 400V 690V 1140V 1380V 11200kW Series Low Voltage Engineering Inverter Air-cooled with 2 Analogue Inputs 0

Support and Services:

The VFD Variable Frequency Drive product technical support and services include:

  • Installation assistance
  • Troubleshooting and diagnostics
  • Repair and maintenance services
  • Training and education on product usage and features
  • Technical documentation and resources
  • Warranty and post-warranty support

Our team of experts is available to assist with any technical questions or issues you may have with your VFD Variable Frequency Drive product.
