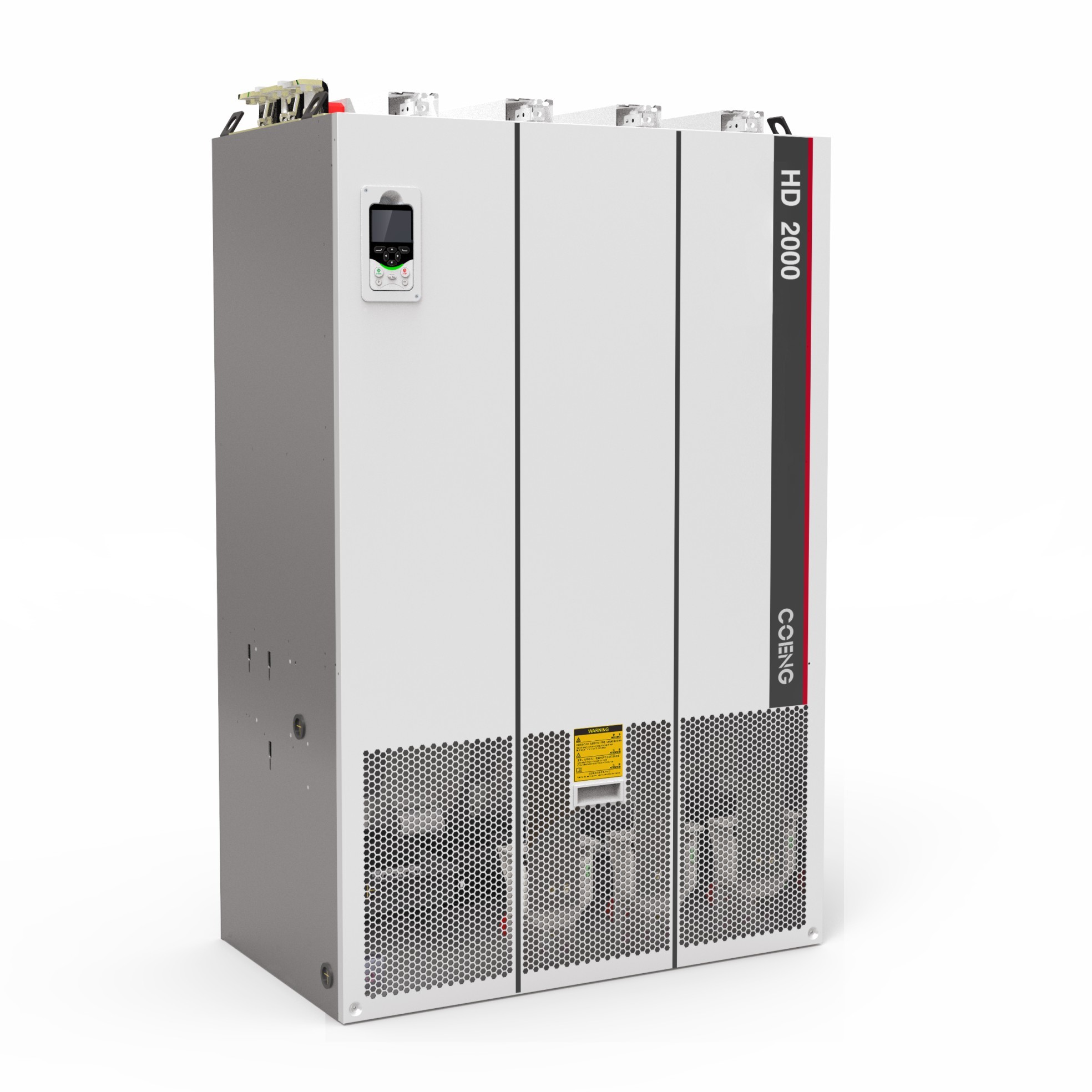

Single Drive VFD Inverter DC Variable Frequency Drive with Anti-vibration Performance
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE |
| Model Number | HD2000-C-10-1 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden box |
| Delivery Time | 7-30working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature | -15℃~+40℃ Without Derating, +40℃~+55℃ Derating Applies | Humidity | 5%~95% Mon-condensing |
|---|---|---|---|
| Altitude | 4000m, Derating Applies From 2000m To 4000m | Anti-vibration Performance | Complies With IEC 60721-3-3:2002 |
| Protection Level | IP00/ IP20/ IP40 | Safety Level | Complies With UL SOSC-2004 |
| Cooling Method | Basic Rectifier Type | ||
| Highlight | Single Drive VFD Inverter,Single Drive Variable Frequency Drive,DC Variable Frequency Drive |
||
Product Description
VFD Common DC BUS Multi-drive Motor Variable Frequency Drive
Variable Frequency Drive Description
The HD2000 VFD inverter, is a highly advanced single-drive/multi-drive system designed for engineering applications. It stands out due to its modular hardware and engineering software design, which allows it to effectively handle a wide range of complex drive scenarios.
Variable Frequency Drive Specification
| Basic Rectifier | Input voltage | 4:380V 〜480V,6:500V 〜690V |
| Input frequency | (50Hz/60Hz)±6% | |
| Output voltage | Input voltage * 1.32 (Under full-load condition) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds |
|
| Operating efffciency | ≥99% Efffciency | |
| Protection eunctions | Protection functions: Overheating protection, soft-start protection, Interlock protection, and more. |
|
| Intelligent rectifier | Input voltage | 4:380V ~ 480V,6: 500V ~ 690V |
| Input frequency | 47 ~ 63Hz | |
| Output voltage | Input voltage * 1.3 (Under full-load condition) | |
| Overload capacity | Relative overload at 150% of rated current for 60 Seconds, Maximum current (Imax), DC overload for 5 seconds |
|
| Operating efffciency | ≥98.5% Efffciency | |
| Protection functions | Protection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more |
|
| PWM rectifier | Input voltage | 4:380V~480V,6:500V~690V,9:1140V,A:1380V |
| Input frequency | 47 ~ 63Hz | |
| Output voltage | Input voltage * 1.5 (Under rated conditions) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, Maximum current (Imax), DC overload for 5 seconds |
|
| Operating efffciency | ≥98% Efffciency (Including LCL fflter unit) | |
| Power factor | Adjustable (Factory setting at 1) | |
| Protection functions | Protection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more. |
Detailed Specification Download HD2000 Specification.pdf
Variable Frequency Drive Feature

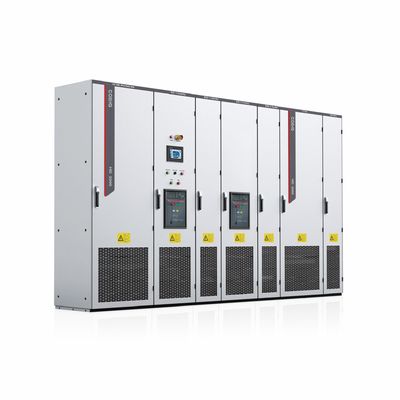

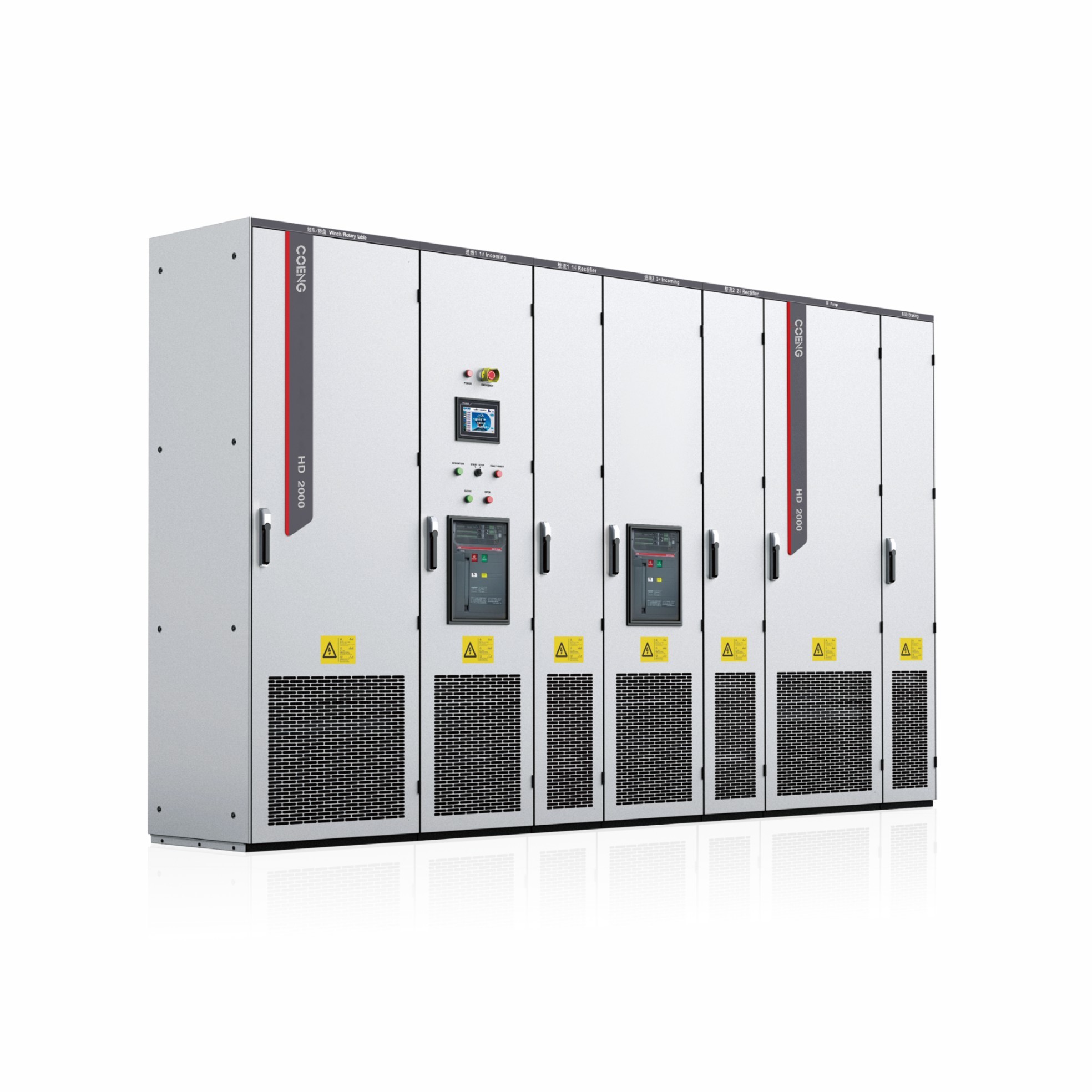

- Key features: Single-drive/multi-drive system in the form of units/cabinets with two/four quadrants.
- Modular design: Application flexibility and comprehensive system integration.
- Comprehensive rectifier units: Basic/Smart/PWM rectifier unit.

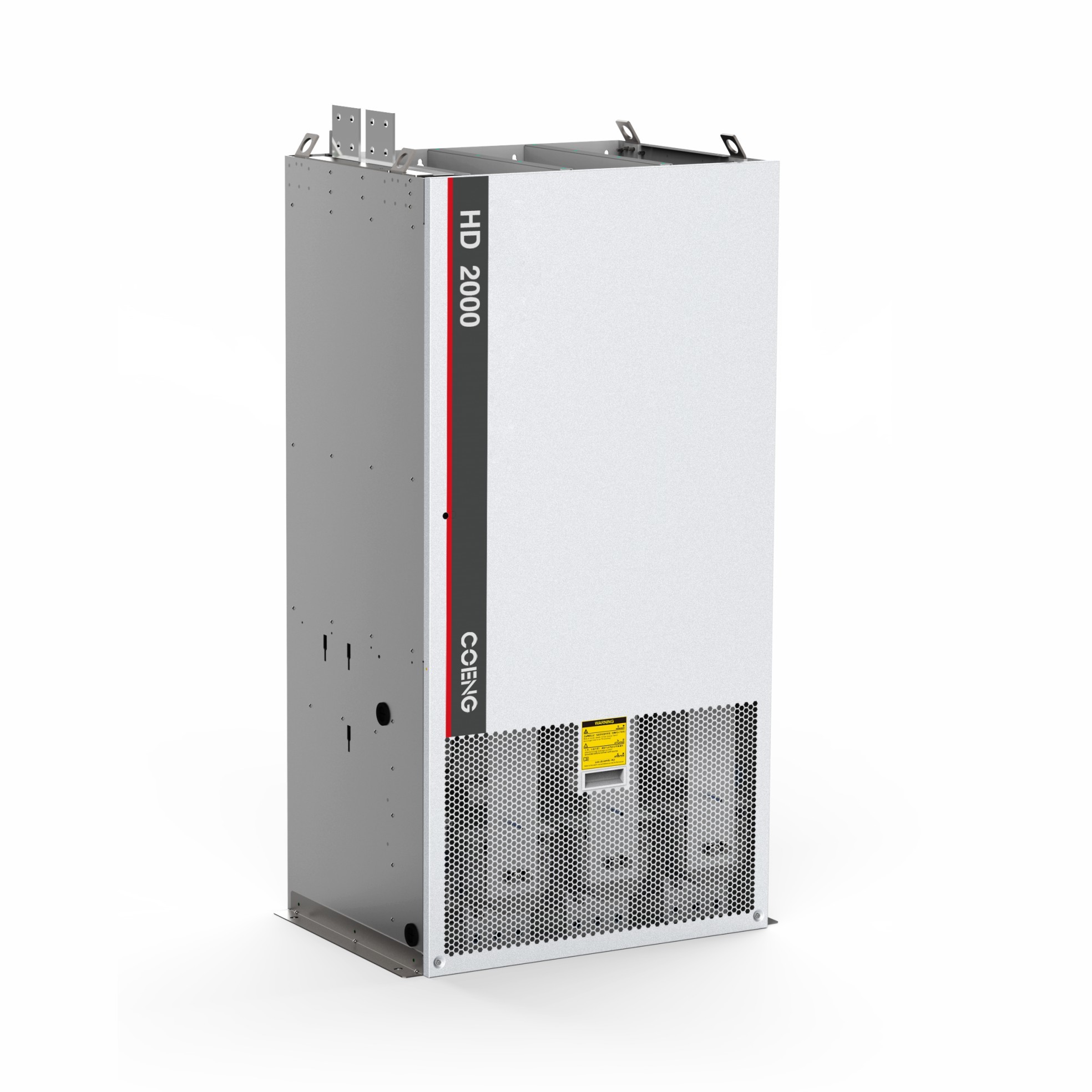

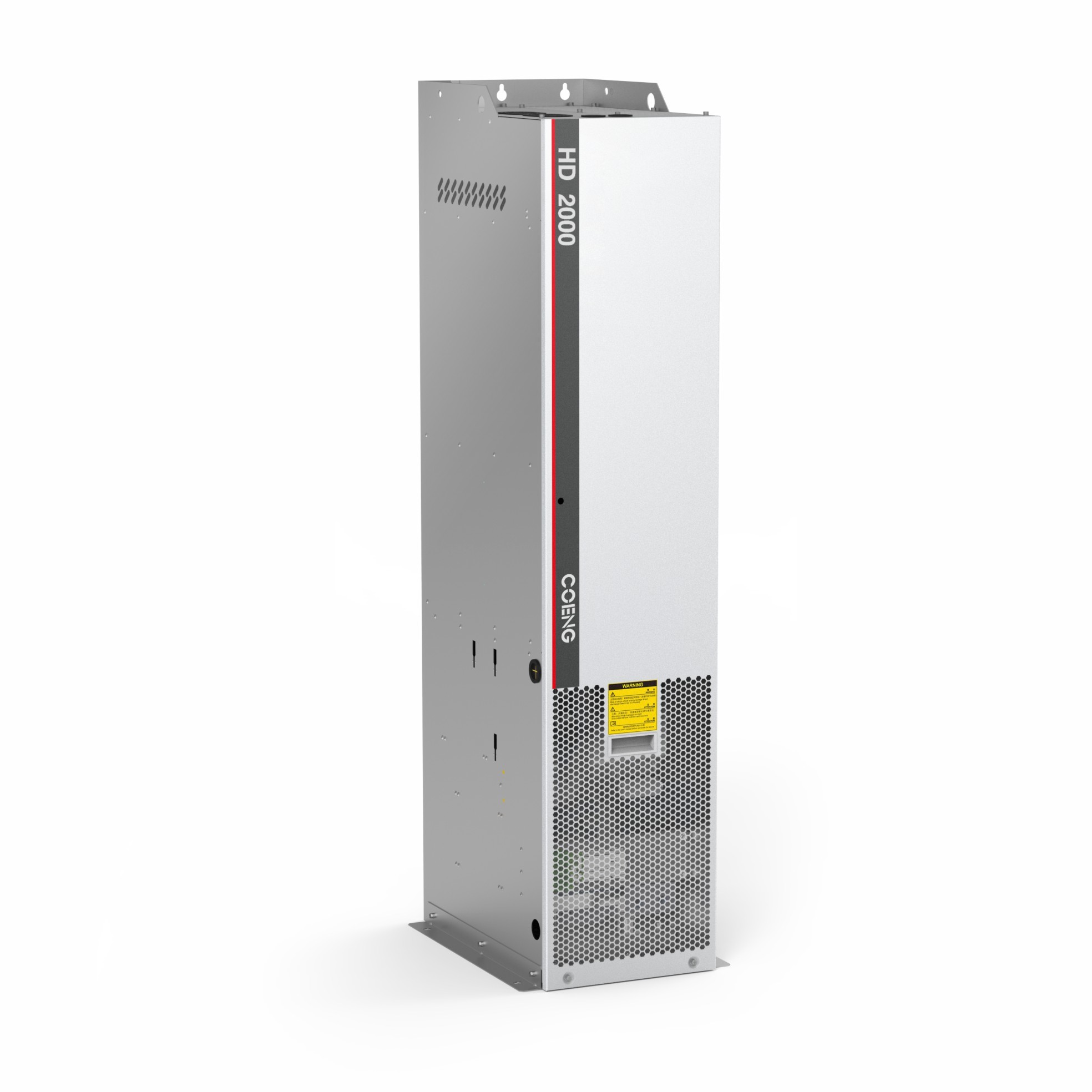

- Max. single unit power: 1400kW (Air-cooled), 2800kW (Liquid-cooled).
- Voltage Levels: 400V, 690V, 1140V, 1380V.
- Max. parallel operation power: 11200kW (Air-cooled), 22400kW (Liquid-cooled).
- Motors supported: Asynchronous induction motors, permanent magnet synchronous motors, synchronous reluctance motors.
- Control modes: V/F, Closed-loop vector control (CLVC), open-loop vectorcontrol (OLVC).
- Cooling modes: Air-Cooled (Standard configuration), liquid-cooled (L).
Variable Frequency Drive Advantages
Reliable Engineering Design
· Highly redundant control and power systems
· Extended lifespan of quick-wear heat dissipation parts (fans, capacitors, etc.)
· Innovative high thermal capacity radiator to withstand strong impact loads
· Optical fiber cables used for control system and power units for resistance to interference
· Isolation of heat dissipation channels from internal components to protect components and better adapt to environment
Modular Design for Easy Maintenance
· Easy maintenance as no special tools needed
· Enabling all modules to be maintained from the front
· Intelligent fault diagnosis system to locate faults quickly
High-Strength Anti-Seismic Design
· Normal operation under IEC 60721 class 3M5 mechanical conditions
· Precise mechanical design for stronger anti-seismic capability
