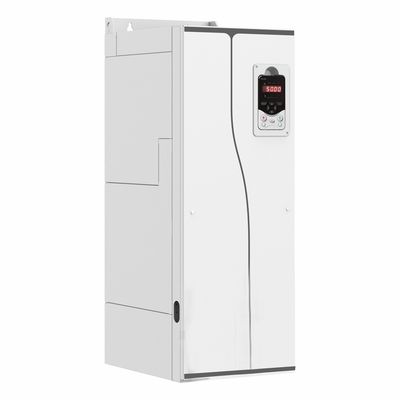

Crane Variable Frequency Drive For 5 Hp Motor 2 Hp 10 Hp 7.5 Hp
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV 610-2 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| V/F Curve | Straight-line Type, Multi-point Type | Overload Capacity | 150% 1min/5min, 180% 10s/5min |
|---|---|---|---|
| Installation Method | Installed In A Cabinet | Torque Boost | 0.0%-30.0% |
| Anti Shake Function | Prevent Accidents Caused By Significant Swinging Of The Load During Acceleration Or Deceleration | Digital Input Terminals | DI1-DI5, 5-way Programmable Digital Input Terminals, Optocoupler Isolation, Compatible With Drain/source Inputs DI5 Supports High-speed Pulse Input, With A Maximum Input Frequency Of 100kHz |
| Optional Accessories | Encoder Card, Communication Expansion Card, IO Expansion Card | Protections | Protection Against Short Circuit , Overcurrent, Overload, Overvoltage, Undervoltage, Phase Loss, Overtemperature, External Faults, Etc. |
| Highlight | Crane Variable Frequency Drive,variable frequency drive for 5 hp motor,variable frequency drive for 2 hp motor |
||
Product Description
Crane Variable Frequency Drive with 180% Overload Capacity and Anti Shake Feature
Crane Variable Frequency Drive Product Description:
The Variable Frequency Drive for Crane is a powerful and reliable device that is specifically designed for use in tower crane frequency conversion applications. This Crane Frequency Inverter is equipped with a 1-channel Form C Contact, NO+NC relay output, which makes it ideal for a wide range of crane applications.
This Tower crane frequency converter is designed to operate on input power frequencies of (50Hz/60Hz)±5%, which makes it perfect for use in a variety of locations around the world. The output voltage of this device is 0V-input Voltage, which ensures that it is capable of delivering stable and reliable power to your crane.
One of the standout features of this Tower crane frequency converter is its speed stability. With an OLVC of 0.2% and a CLVC of 0.1%, this device is capable of maintaining a stable and reliable speed for your crane, even under heavy loads or in challenging working conditions.
This Crane Frequency Inverter is also equipped with a variety of frequency setting methods, including operation panel setting, UP/DOWN terminals, multi-stage speed setting, terminal pulse setting, and communication. This makes it easy to set and adjust the frequency of your crane to meet your specific needs and requirements.
Crane Variable Frequency Drive Features:
- Product Name: Variable Frequency Drive for Crane
- Protections: Protection Against Short Circuit, Overcurrent, Overload, Overvoltage, Undervoltage, Phase Loss, Overtemperature, External Faults, Etc.
- Cooling method: Air Cooling
- Protection rating: IP20
- Torque precision: ≤±5%, In Vector Control Mode
- Motor type: Asynchronous Motor, Synchronous Motor
Frequency Converter for Crane, Mining machinery frequency converter, Variable Frequency Drive for Crane
Crane Variable Frequency Drive Technical Parameters:
|
Product Name |
Variable Frequency Drive for Crane |
|
Motor Type |
Asynchronous Motor, Synchronous Motor |
|
Speed Stability |
OLVC: 0.2%; CLVC: 0.1% |
|
Output Frequency |
0Hz-600Hz |
|
Anti Shake Function |
Prevent Accidents Caused By Significant Swinging Of The Load During Acceleration Or Deceleration |
|
Acceleration/Deceleration Time |
0.0s～3200.0s; 0.0min～3200.0min |
|
Speed Range |
1:10 V/F; 1:100 OLVC; 1:1000 CLVC |
|
Analog Output Terminals |
1-channel 0V-10V/0(4)mA-20mA |
|
Input Power Frequency |
(50Hz/60Hz)±5% |
|
Torque Response |
≤ 5ms, In Vector Control Mode |
|
Relay Output |
1-channel Form C Contact, NO+NC |
|
Product Keywords |
Variable Frequency Drive for Crane, Mining machinery frequency converter, Tower crane frequency converter |
Crane Variable Frequency Drive Applications:
The COENG HV 610 Variable Frequency Drive for Crane is suitable for both asynchronous and synchronous motors. It has a torque response of ≤ 5ms in vector control mode, making it highly responsive and accurate. Additionally, its torque pulsation is ≤±5% in vector control mode. This ensures smooth and stable operation of the crane, reducing wear and tear on the equipment.
The COENG HV 610 Variable Frequency Drive for Crane is equipped with anti-loosening rope protection, which detects heavy objects and slowly accelerates to ensure a steady rise. This feature ensures the safety of workers and equipment during the operation of the crane.
The output frequency of this Crane Drive VFD Inverter ranges from 0Hz to 600Hz, making it suitable for a wide range of industrial applications. It has a supply ability of 20000 sets per year, and the minimum order quantity is 1. It is packed in a wooden case to ensure safe transportation and delivery time ranges from 10-30 working days.
If you are looking for a reliable Crane Frequency Inverter, the COENG HV 610 Variable Frequency Drive for Crane is an excellent choice. Its high-quality features and certifications make it a preferred choice for crane operators and industrial applications.
Crane Variable Frequency Drive Support and Services:
The Variable Frequency Drive for Crane product comes with a range of technical support and services to ensure optimal performance and reliability. Some of the services offered include:
- Technical phone support
- 24-hour emergency service
- On-site troubleshooting and repairs
- Preventative maintenance programs
- Training and education programs for operators and maintenance personnel
Our team of experienced technicians and engineers are available to provide support and services to our customers throughout the life cycle of their Variable Frequency Drive for Crane product.
