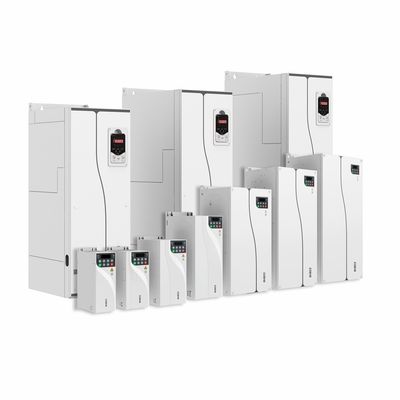

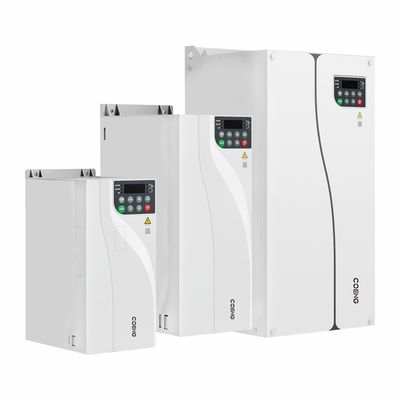

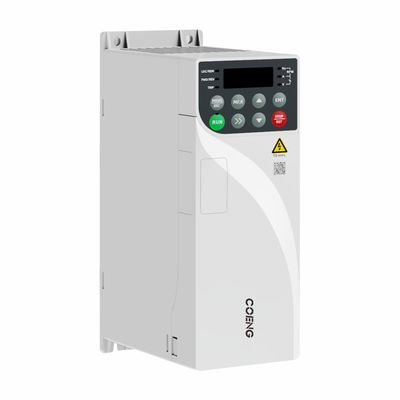

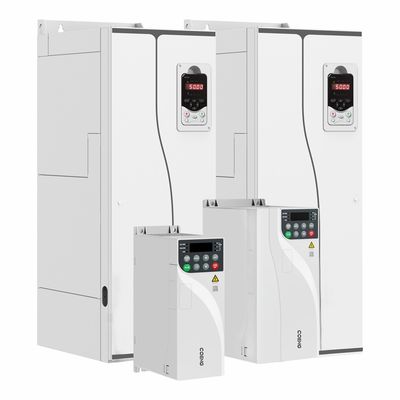

Straight-line Type V/F Curve VFD Three Phase 380V-480V Built-in C3 Filter LED Keyboard OLVC Control Mode
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV 610-3 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Anti Shake Function | Prevent Accidents Caused By Significant Swinging Of The Load During Acceleration Or Deceleration | Acceleration And Deceleration Curve | Straight Line, S-curve |
|---|---|---|---|
| Input Power Frequency | (50Hz/60Hz)±5% | Input Voltage | 380V (-15%) To 480V (+10%) Three-phase |
| Control Mode | V/F, OLVC (open Loop Vector Control), CLVC (closed Loop Vector Control) | Output Voltage | 0V-input Voltage |
| V/F Curve | Straight-line Type, Multi-point Type | Input Voltage Imbalance | ≤3% |
| Highlight | Built-in C3 Filter VFD,380V-480V VFD,LED Keyboard VFD |
||
Product Description
Performance characteristic
Specialization characteristic
• Anti-roll control, inhibit spreader swing, efficient operation
• Speed with load, the operating speed can be adjusted in real time according to the equipment load changes
• Hook protection, brake detection hook, control motor output hover
• Easy positioning through the combination of deceleration and stop limits
• Anti-loose rope protection, up at a fixed speed, to detect lifting heavy objects, slowly accelerate, rise steadily
• The lifting mechanism can be selected according to the lifting parameter macro setting value
• Multi-motor switching, internal support 4 sets of motor parameters
High reliability
• The whole machine independent air duct design, effectively prevent dust impurities into
• Efficient and accurate thermal simulation platform software
• Advanced thermal testing and verification technology and equipment to effectively verify the theoretical results of thermal design
• Rigorous full load and overload verification test procedures
• The products are aging after high temperature belt load, effectively guarantee the factory quality
• Circuit board protection enhanced design, anti-corrosion, moisture-proof, dust and so on
High adaptability
• Wide voltage range design, three-phase 380V~480V (-15%~+10%)
• Built-in C3 filter to effectively suppress high-frequency harmonics generated by the inverter
• Simple and friendly EMC ground break design can effectively reduce the current to the floor drain
• Book type design, the volume is reduced by about 40% compared to traditional models
• Can realize the whole machine side by side installation, saving installation space
Performance control optimization
• Support the drive control of three-phase asynchronous motor and permanent magnet synchronous motor
• Support V/F control, open loop vector control, closed loop vector control
• Large starting torque, OLVC: 0.5Hz/150%, CLVC: 0Hz/200%
• High overload capacity, 150% rated current 60s, 180% rated current 10s
Easy to use
• 132kW and above standard machine factory configuration LED keyboard can support external import
• Keyboards 110kW and below can be equipped with a separate LED keyboard
• When the inverter starts and stops, the motor can be controlled by holding the brake
• Multi-segment speed control function, through the control terminal to achieve 16 segment speed operation
• Zero servo function, CLVC mode can achieve zero speed motor position locking
• Random PWM depth can improve the harsh noise of the motor
• Encoder redundancy operation mode, encoder failure can automatically switch to OLVC operation
Expansion and diversification
• Supports multiple code disk interface cards
• Supports I/O terminal expansion cards
• Support Profibus-DP, Profinet IO, CANopen, Modbus-TCP/IP, EtherNet IP, Ethercat and other communication
Autonomous fast debugging
• Support to connect background software, making debugging and maintenance more convenient
• Support event recording and fault recording
