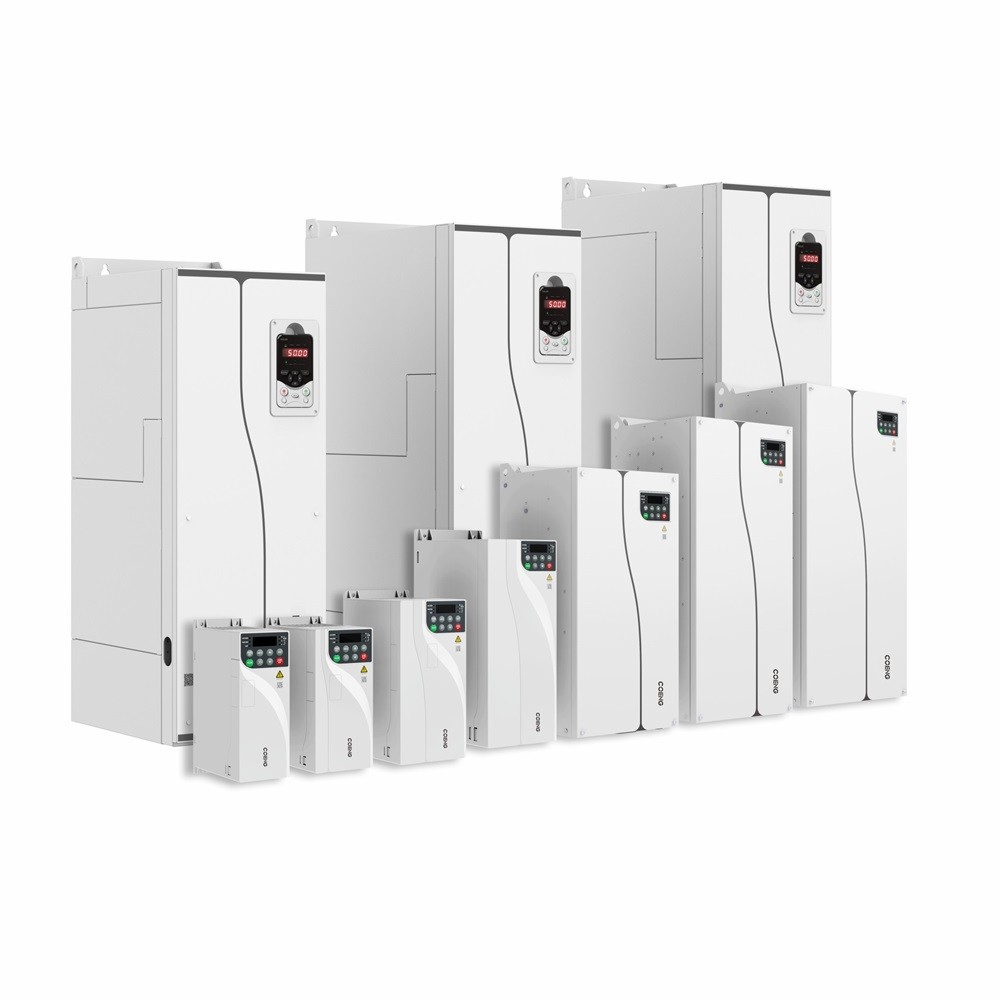

Three Phase Variable Frequency Drive For Crane 380V-480V

Variable Frequency Drive for Crane Product Description:

One of the key features of this drive is its impressive speed range capability. It can operate in a 1:10 V/F ratio, making it very flexible in terms of speed control. Additionally, it can operate in a 1:100 OLVC (Open Loop Vector Control) and 1:1000 CLVC (Closed Loop Vector Control) ratio, making it highly adaptable to different types of crane systems.

The Variable Frequency Drive for Crane also boasts a torque boost function, which can be adjusted between 0.0% and 30.0%. This feature ensures that the drive can handle sudden load changes and maintain stable crane operations at all times.

Another important aspect of this drive is its exceptional speed stability. It can achieve a 0.2% stability margin in OLVC mode, and a 0.1% stability margin in CLVC mode. This means that it can maintain a steady speed and prevent any unwanted fluctuations, even when the system is under heavy load.

The drive also comes with a relay output that includes a 1-channel Form C Contact, NO+NC. This output can be used to trigger alarms or other types of safety mechanisms when necessary, ensuring that the crane system is always secure and reliable.

In summary, our Variable Frequency Drive for Crane is a robust and highly versatile product that is perfect for a wide range of crane applications. Its speed control capabilities, torque boost function, speed stability, and relay output make it an ideal choice for bridge crane frequency inverter, port crane frequency converter, and oil drilling rig frequency converter systems.

Variable Frequency Drive for Crane Features:

• Product Name: Variable Frequency Drive for Crane
• Torque response: ≤ 5ms, In Vector Control Mode
• Optional accessories:
• Encoder Card
• Communication Expansion Card
• IO Expansion Card
• Torque boost: 0.0%-30.0%
• Output frequency: 0Hz-600Hz
• Input power frequency: (50Hz/60Hz)±5%

The Variable Frequency Drive for Crane, also known as the Frequency Converter for Crane, is a versatile product with a torque response of ≤ 5ms in Vector Control Mode. It also comes with optional accessories such as an Encoder Card, Communication Expansion Card, and IO Expansion Card. The Torque Boost ranges from 0.0% to 30.0%, while the Output Frequency can be adjusted from 0Hz to 600Hz. The Input Power Frequency is (50Hz/60Hz)±5%.

Variable Frequency Drive for Crane Technical Parameters:

This product is a VFD frequency inverter that can also be used as an Oil drilling rig frequency converter or a Crane Drive Frequency Inverter.

Variable Frequency Drive for Crane Applications:

The HV 610 Variable Frequency Drive is equipped with anti-loosening rope protection. The product can detect whether heavy objects are mentioned, slowly accelerate and steadily rise. The starting torque for this product is impressive. OLVC torque is 150% (0.5Hz), and CLVC torque is 200% (0Hz). This product has a straight-line type and multi-point type V/F curve.

The HV 610 Variable Frequency Drive is compatible with both asynchronous and synchronous motors. Optional accessories such as encoder card, communication expansion card, and IO expansion card can be added to improve the performance of the product.

The product is suitable for variable frequency drive applications in port crane frequency converters and oil drilling rig frequency converters. With this product, crane operators can achieve precise control and better efficiency, resulting in reduced downtime and increased productivity.

Variable Frequency Drive for Crane Support and Services:

The Variable Frequency Drive for Crane product technical support and services include:

• Installation assistance
• Programming support
• Troubleshooting and diagnosis
• Repair and maintenance services
• Product training and education
• Technical documentation and manual
