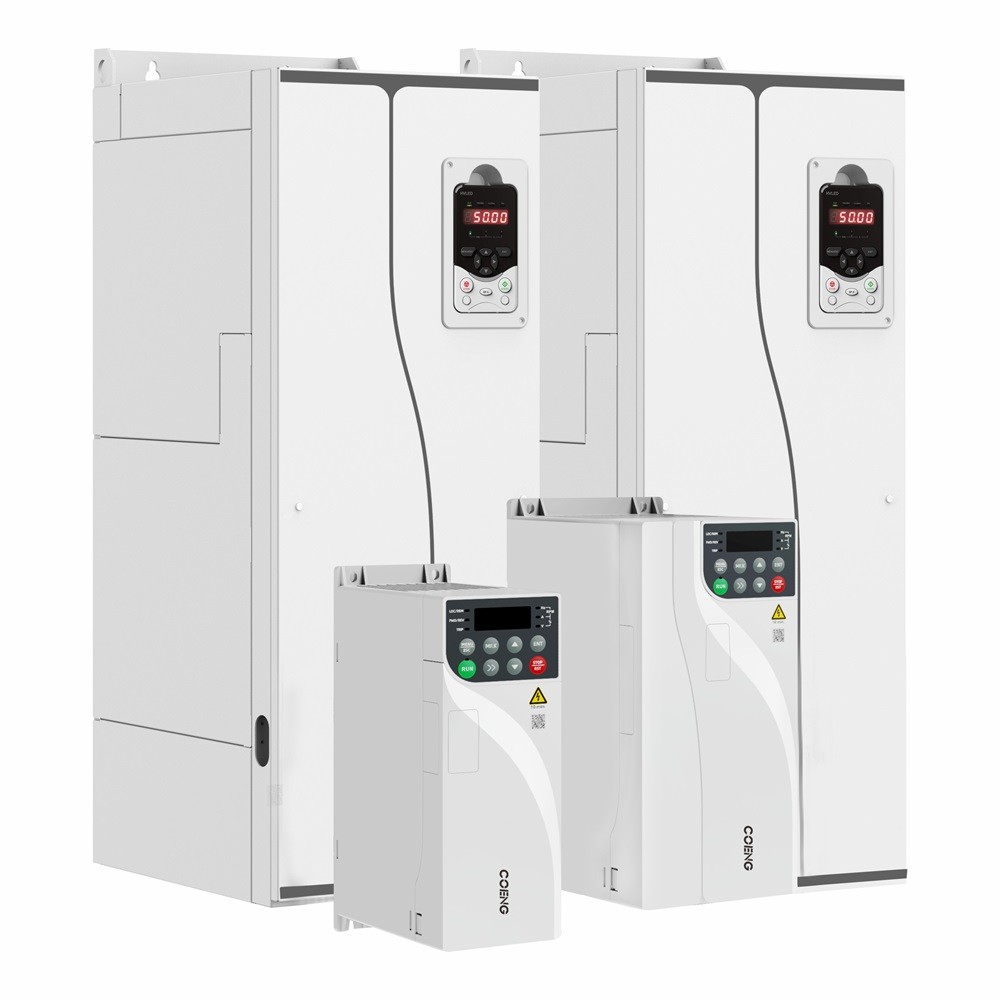

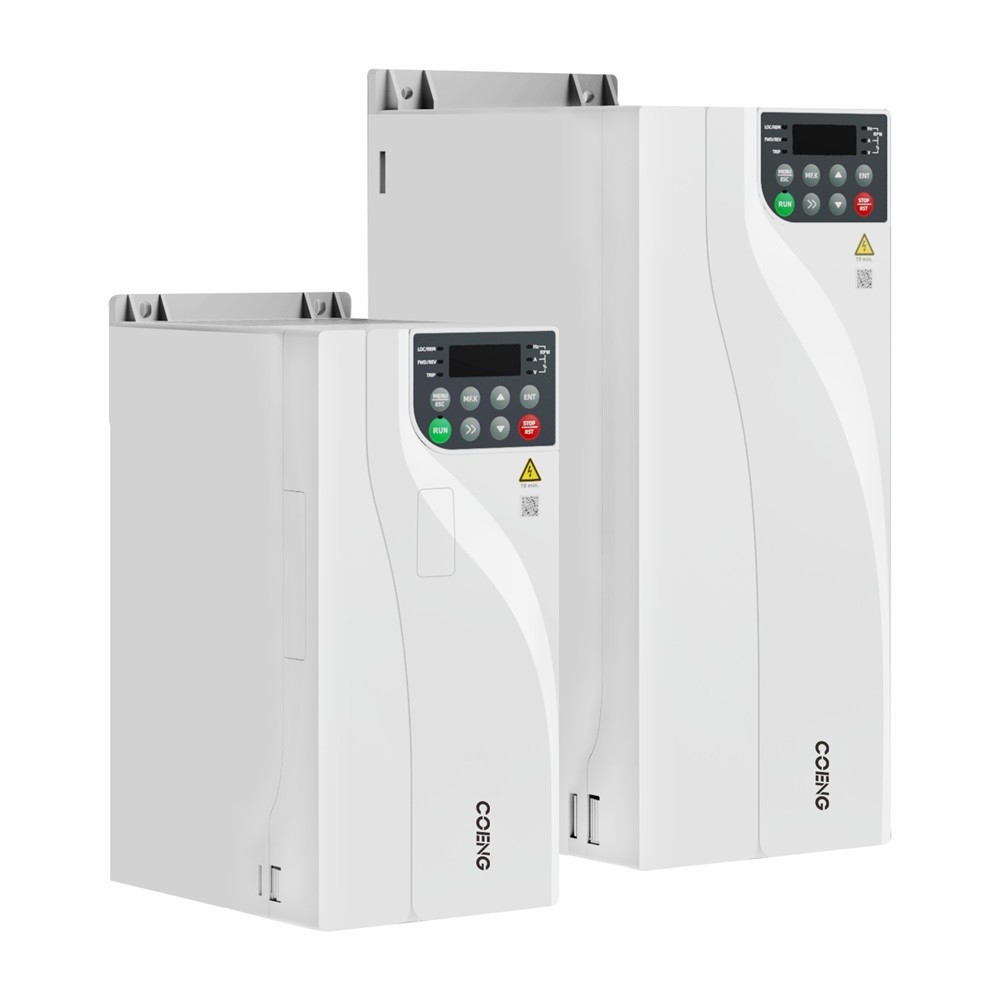

IP20 Rated Industrial VFD with Advanced Torque Response (≤5ms) for Precision
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV 610-3 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Anti Shake Function | Prevent Accidents Caused By Significant Swinging Of The Load During Acceleration Or Deceleration | Acceleration And Deceleration Curve | Straight Line, S-curve |
|---|---|---|---|
| Input Power Frequency | (50Hz/60Hz)±5% | Input Voltage | 380V (-15%) To 480V (+10%) Three-phase |
| Control Mode | V/F, OLVC (open Loop Vector Control), CLVC (closed Loop Vector Control) | Output Voltage | 0V-input Voltage |
| V/F Curve | Straight-line Type, Multi-point Type | Input Voltage Imbalance | ≤3% |
| Highlight | Precision Industrial VFD,IP20 Rated Industrial VFD,Advanced Torque Response Industrial VFD |
||
Product Description
Crane Variable Frequency Drive Applications:
The COENG HV610 Crane Drive VFD Inverter has an output frequency range of 0Hz-600Hz. It has a torque response of less than or equal to 5ms in vector control mode, making it highly responsive and efficient. The acceleration and deceleration curve can be straight line or S-curve, depending on the specific application. The V/F curve can be either straight-line or multi-point type, giving the user more flexibility in the application.
The product is designed with various protections, including protection against short circuit, overcurrent, overload, overvoltage, undervoltage, phase loss, overtemperature, external faults, etc. This ensures the safety of the equipment and the user, as well as prolonging the lifespan of the product.
The COENG HV610 Crane Drive VFD Inverter is suitable for various applications, including bridge cranes, gantry cranes, tower cranes, and other types of lifting equipment. In addition, it can be used in industries such as metallurgy, mining, cement, and papermaking, where high-power motor control is required. The product is easy to install and operate, making it suitable for both new installations and retrofitting existing equipment.
In summary, the COENG HV610 Crane Drive VFD Inverter is a reliable, efficient, and versatile product that can be used in a wide range of applications. Its various protections and flexible curve options make it a safe and easy-to-use product. With its high supply capacity and quick delivery time, the COENG HV610 Crane Drive VFD Inverter is an excellent choice for anyone looking for a high-quality crane frequency inverter.
Crane Variable Frequency Drive Technical Parameters:
|
Product Name |
Frequency Converter for Crane |
|
V/F curve |
Straight-line Type, Multi-point Type |
|
Acceleration and deceleration curve |
Straight Line, S-curve |
|
Input frequency resolution |
Digital Setting: 0.01Hz; Analog Setting: 0.01Hz |
|
Output voltage |
0V-input Voltage |
|
Speed range |
1:10 V/F; 1:100 OLVC; 1:1000 CLVC |
|
Frequency setting method |
Operation Panel Setting, UP/DOWN Terminals, Multi-stage Speed Setting, Terminal Pulse Setting, Communication |
|
Protection rating |
IP20 |
|
Optional accessories |
Encoder Card, Communication Expansion Card, IO Expansion Card |
|
Input voltage imbalance |
≤3% |
|
Anti shake function |
Prevent Accidents Caused By Significant Swinging Of The Load During Acceleration Or Deceleration |
|
Also known as |
VFD frequency inverter, Oil drilling rig frequency converter |
