VFD Adjustable Torque Boost Frequency Drive Phase Converter Precise V F Curves
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV510-6 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Torque Boost | 0.0%-30.0% | Input Frequency Resolution | Digital Setting: 0.01Hz; Analog Setting: 0.01Hz |
|---|---|---|---|
| V/F Curve | Straight-line Type, Multi-point Type, V/F Half Separation Mode, V/F Complete Separation Mode | Ambient Temperature | -25°C-+40°C (derating Is Allowed Within 40°C-55°C) |
| Acceleration/decel Eration Time | 0.0s～3200.0s; 0.0min～3200.0min | Storage Temperature | −40℃-+70℃ |
| Input Voltage Imbalance | ≤3% | Installation Method | Installed In A Cabinet |
| Highlight | Adjustable frequency drive converter,VFD frequency drive converter,frequency drive phase converter |
||
Product Description

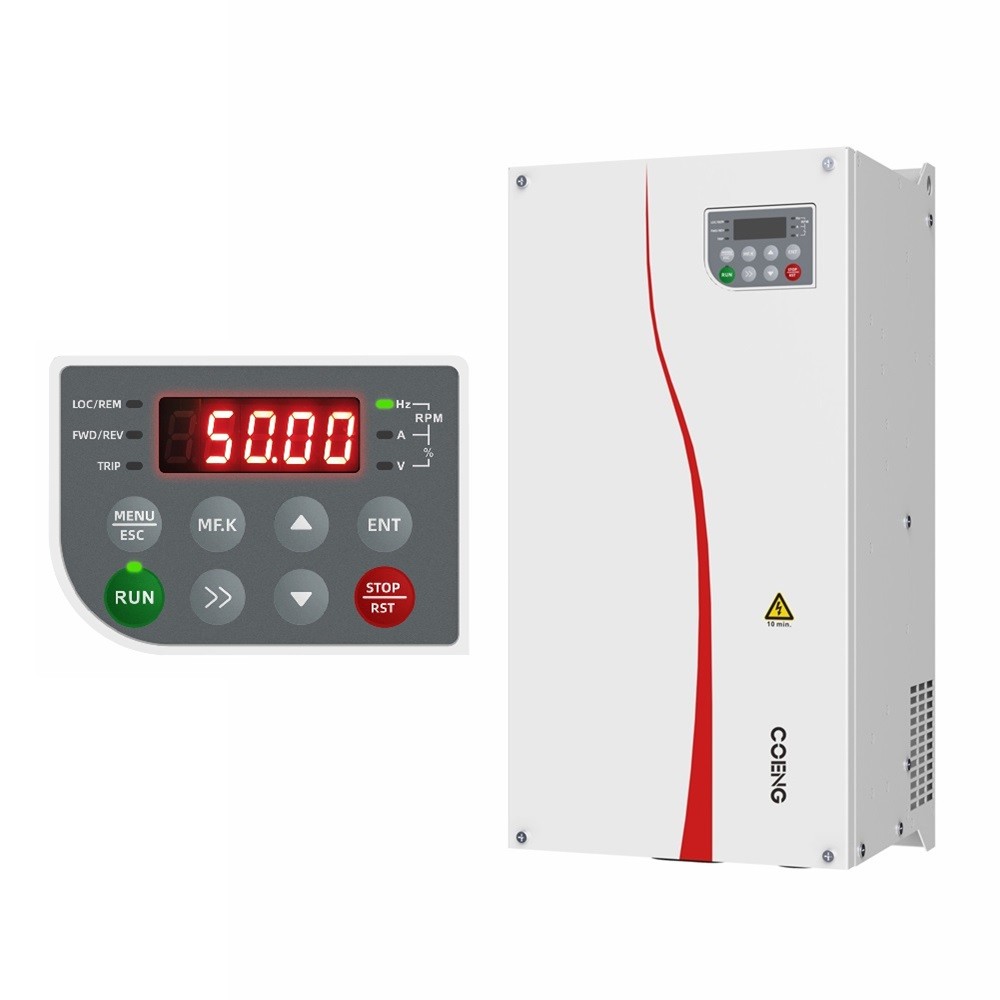

VFD Adjustable Torque Boost Frequency Drive Inverter with Precise V/F Curves
Frequency Drive Inverter Product Description:
Equipped with the latest technology, our Vector Inverter boasts an input voltage imbalance of ≤3% and torque pulsation of ≤±5% in Vector Control Mode, ensuring smooth and consistent performance. The cooling method used is air cooling, making it an eco-friendly and cost-effective option for your business.
The speed range of our Vector Inverter is impressive, with a 1:10 V/F ratio, 1:100 OLVC ratio, and a 1:1000 CLVC ratio. This gives you greater control over the motor speed, ensuring optimal performance and energy savings. Our Vector Inverter is also designed to operate in a wide range of temperatures, with a storage temperature of −40℃-+70℃, making it suitable for use in varying environments.
Our VFD Vector Inverter is a versatile and reliable solution for your industrial automation needs. With its exceptional performance, efficiency, and durability, it is the perfect choice for any business looking to streamline their operations and boost productivity. Order your Vector Inverter today and experience the difference in performance and efficiency!
Frequency Drive Inverter Features:
- Product Name: Frequency Drive Inverter
- Output frequency: 0Hz-1500Hz
- Protections:Protection Against Short Circuit, Overcurrent, Overload, Overvoltage, Undervoltage, Phase Loss, Overtemperature,External Faults Etc.
- Vibration: 3M3, IEC60721-3-3
- Automatic voltage regulation (AVR): Automatically Keeps The Output Voltage Constant When Grid Voltage Varies Within A Certain Range
- Altitude:≤1000m: No Need For Derating, 1000-3000m: With Current Derating By 1% Per 100m Increased
- Output Description:Variable Frequency Converter,Open-loop vector VFD inverter,Variable Frequency Inverter
Frequency Drive Inverter Technical Parameters:
|
Technical Parameter |
Description |
|---|---|
|
Product Name |
Variable Frequency Inverter (VFD) |
|
Overload Capacity |
G-model: 150% 1min/5min, 180% 3s/5min P-model: 110% 1min/5min, 150% 3s/5min |
|
Speed Stability |
OLVC: 0.2%; CLVC: 0.1% |
|
Control Mode |
V/F, OLVC (Open Loop Vector Control), CLVC (Closed Loop Vector Control) |
|
Ambient Temperature |
-25°C-+40°C (derating Is Allowed Within 40°C-55°C) |
|
Motor Type |
Asynchronous Motor/Permanent Magnet Synchronous Motor |
|
Humidity |
15%-95%, No Condensation |
|
Input Frequency Resolution |
Digital Setting: 0.01Hz; Analog Setting: 0.01Hz |
|
Torque Pulsation |
≤±5%, In Vector Control Mode |
|
Power Class |
7.5kW (heavy Load), 11kW (light Load)/15kW (heavy Load), 18.5kW (light Load) |
|
Topology |
Two Quadrants |
Frequency Drive Inverter Applications:
The COENG HV510 Vector Frequency Inverter has three different control modes: V/F, OLVC (open Loop Vector Control), and CLVC (closed Loop Vector Control), which allows for greater flexibility in its use. Its starting torque is impressive, with VF: 100% (0.5Hz); OLVC: 150% (0.5Hz); CLVC: 200% (0Hz), making it suitable for a wide range of applications. The ambient temperature for this product is -25°C-+40°C (derating Is Allowed Within 40°C-55°C), and it is designed to be installed in a cabinet.
The COENG HV510 Variable Frequency Inverter is suitable for use indoors without direct sunlight, flammable and corrosive gases, liquids, and conductive particles, etc. This product is ideal for use in many different applications, including but not limited to:
- Industrial machinery
- Conveyors
- Fans and pumps
- Centrifuges
- Textile machines
- Printing machines
- Food processing equipment
The COENG HV510 Vector VFD is a versatile and reliable product that is designed to meet the needs of many different industries. Its high starting torque, range of control modes, and ability to operate in a range of temperatures make it an excellent choice for businesses looking for a quality frequency drive inverter.
Frequency Drive Inverter Support and Services:
Our Frequency Drive Inverter product comes with a range of technical support and services to ensure that you get the most out of your purchase. This includes:
- Product installation and commissioning support
- Technical troubleshooting and fault diagnosis
- Product repair and maintenance services
- Software and firmware updates
- Remote technical support
- Training and consultation services
Our experienced technical support team is available to assist you with any questions or issues you may encounter with your Frequency Drive Inverter product. We are committed to providing high-quality support and services to help you maximize the performance and longevity of your equipment.
