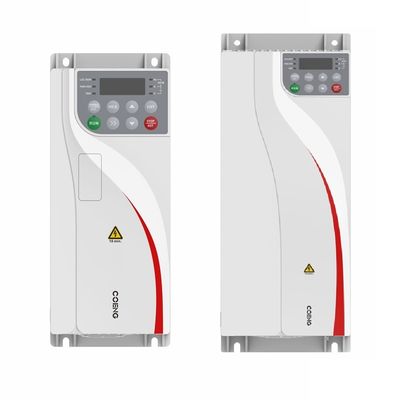

Closed Loop Vector VFD Inverter With Modbus RTU Communication V/F Control Mode
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV510-13 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Communication Protocol | Modbus RTU (standard Configuration); Profibus-DP, CANopen, Profinet IO, Modbus TCP/IP, EtherCAT, EtherNet/IP (optional Configuration) | Control Mode | V/F, OLVC (open Loop Vector Control), CLVC (closed Loop Vector Control) |
|---|---|---|---|
| Torque Boost | 0.0%-30.0% | Output Voltage | 0V-input Voltage |
| Operating Place | Indoors Without Direct Sunlight, Flammable And Corrosive Gases, Liquids And Conductive Particles, Etc. | Number Of Phases | Three Phase |
| Input Voltage (Uin) | 380V (-15%) - 480V (+10%), Three-phase | Acceleration/decel Eration Time | 0.0s～3200.0s; 0.0min～3200.0min |
| Highlight | VFD Inverter with Modbus,Vector VFD Inverter,modbus inverter |
||
Product Description
Closed Loop Vector VFD Inverter with Modbus RTU Communication V/F Control Mode 30% Torque Boost
Closed Loop Vector VFD Inverter Product Description:
The Frequency Drive Inverter is equipped with Air Cooling as its cooling method, ensuring that it can handle demanding situations with ease. It is capable of communicating through multiple protocols, including the standard configuration of Modbus RTU, and optional configurations of Profibus-DP, CANopen, Profinet IO, Modbus TCP/IP, EtherCAT, and EtherNet/IP. This allows for easy integration with other systems, making it a highly flexible and user-friendly option for your business.
The Variable Frequency Converter, also known as the Variable Frequency Inverter, is designed for three-phase applications, ensuring that it can handle even the most demanding industrial and commercial environments with ease. Its advanced technology allows for efficient and precise control of motors, pumps, fans, and other machinery, optimizing performance and reducing energy consumption.
Overall, the Frequency Drive Inverter is a powerful and efficient solution for your business needs. With its advanced features, including Air Cooling, multiple communication protocols, and precise motor control, it is the perfect choice for a wide range of industrial and commercial applications. Invest in the Variable Frequency Inverter today and experience the benefits of optimized performance and reduced energy consumption!
Closed Loop Vector VFD Inverter Features:
- Product Name: Frequency Drive Inverter
- Vector Converter
- Vector Frequency Inverter
- Simple PLC
- Multi-speed reference: 16 Speed Segments Supported Through Control Terminals
- Output frequency: 0Hz-1500Hz
- Cooling mode: Air Cooling
- Fixed length control: Fixed Length Control
- Output voltage: 0V-input Voltage
Closed Loop Vector VFD Inverter Technical Parameters:
|
Product Attribute |
Technical Parameters |
|
Vector VFD Type |
Inverter |
|
Multi-Speed Reference |
16 Speed Segments Supported Through Control Terminals |
|
Overload Capacity |
G-model: 150% 1min/5min, 180% 3s/5min P-model: 110% 1min/5min, 150% 3s/5min |
|
Torque Precision |
≤±5%, In Vector Control Mode |
|
Starting Torque |
V/F: 100% (0.5Hz); OLVC: 150% (0.5Hz); CLVC: 200% (0Hz) |
|
V/F Curve |
Straight-line Type, Multi-point Type, V/F Half Separation Mode, V/F Complete Separation Mode |
|
Storage Temperature |
−40℃-+70℃ |
|
Number of Phases |
Three Phase |
|
Power Class |
7.5kW (heavy Load), 11kW (light Load)/15kW (heavy Load), 18.5kW (light Load) |
|
Fixed Length Control |
Fixed Length Control |
|
Communication Protocol |
Modbus RTU (standard Configuration); Profibus-DP, CANopen, Profinet IO, Modbus TCP/IP, EtherCAT, EtherNet/IP (optional Configuration) |
Closed Loop Vector VFD Inverter Applications:
The COENG HV510 has a wide range of speed options including 1:10 V/F, 1:100 OLVC, and 1:1000 CLVC, providing greater flexibility in controlling the motor speed. The starting torque is also impressive with VF at 100% (0.5Hz), OLVC at 150% (0.5Hz), and CLVC at 200% (0Hz). This makes it an ideal choice for applications with varying torque requirements.
The COENG HV510 is designed to operate in ambient temperatures ranging from -25°C to +40°C with derating allowed within 40°C-55°C. This makes it suitable for use in harsh industrial environments. The product has a high supply ability of 20000 sets per year, ensuring that customers can always get their required quantity on time.
The COENG HV510 is a vector inverter that can be used in a wide range of scenarios including pumps, fans, compressors, conveyors, and many others. The frequency drive inverter is easy to install and operate, making it an ideal choice for both experienced and novice users.
Closed Loop Vector VFD Inverter Support and Services:
The Frequency Drive Inverter product technical support and services include:
- Installation and commissioning support
- Product training and education
- Remote technical support for troubleshooting and problem resolution
- On-site repair and maintenance services
- Spare parts and accessories ordering
- Warranty and post-warranty servic
