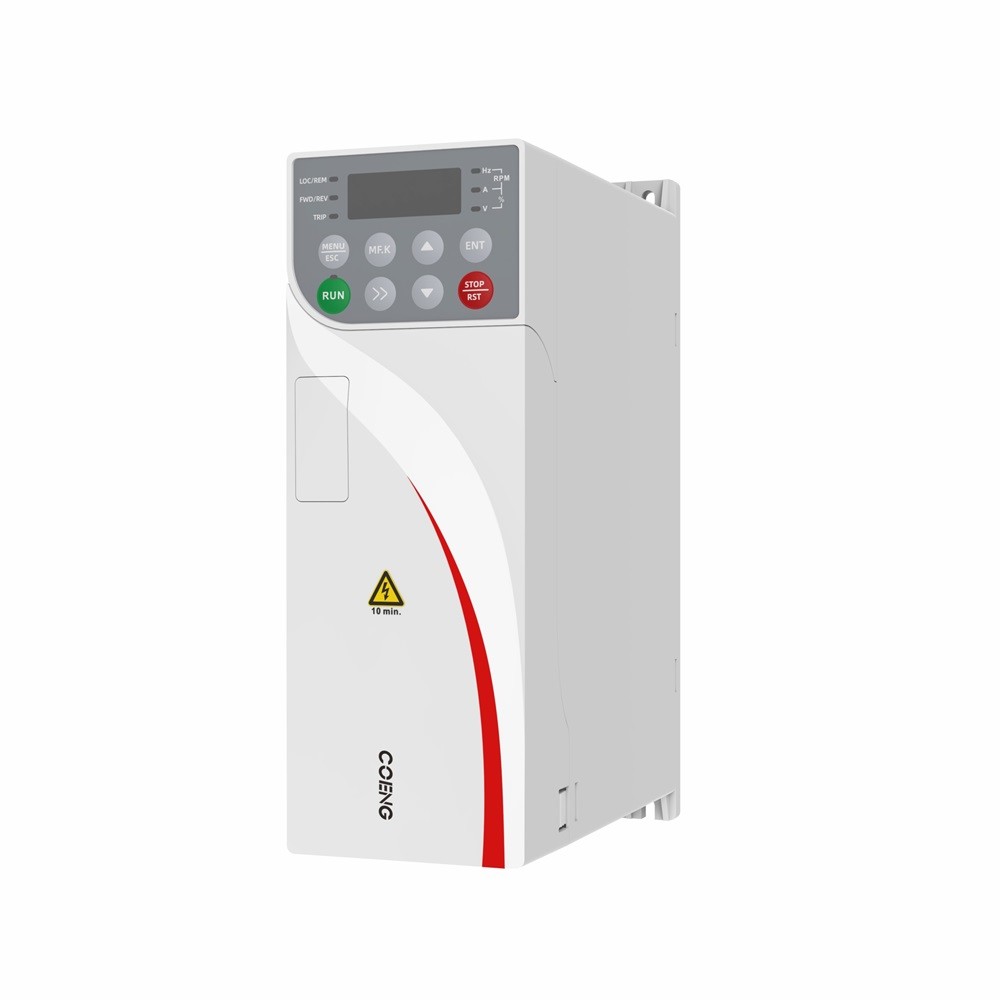

Air Cooling Frequency Drive Inverter Straight Line V/F Curve
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV510-15 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Speed Stability | OLVC: 0.2%; CLVC: 0.1% | Acceleration/decel Eration Curves | Straight-line, S-curve |
|---|---|---|---|
| Cooling Mode | Air Cooling | Input Voltage Imbalance | ≤3% |
| V/F Curve | Straight-line Type, Multi-point Type, V/F Half Separation Mode, V/F Complete Separation Mode | Input Voltage (Uin) | 380V (-15%) - 480V (+10%), Three-phase |
| Cooling Method | Air Cooling | Fixed Length Control | Fixed Length Control |
| Highlight | Air Cooling Frequency Drive Inverter,Frequency Drive Inverter Straight Line,inverter frequency drive |
||
Product Description
Air Cooling Frequency Drive Inverter with OLVC 0.2% Speed Stability and Straight Line V/F Curve
Air Cooling Frequency Drive Inverter Product Description:
The Frequency Drive Inverter offers a range of protections against various faults such as short circuit, overcurrent, overload, overvoltage, undervoltage, phase loss, overtemperature, external faults, and more. These protections ensure that the inverter and the equipment it is connected to are safe from damage and can operate efficiently without interruption.
The Cooling method of the Frequency Drive Inverter is Air Cooling, which is a highly efficient method of dissipating the heat generated during operation. This ensures that the inverter operates at the optimal temperature and provides reliable performance over an extended period.
The Torque boost feature of the Frequency Drive Inverter allows for a torque boost of 0.0%-30.0%, which enables the motor to start up smoothly even under heavy loads. This feature is particularly useful in applications where there is a need for quick acceleration or where the motor is required to operate at high speeds.
The Cooling mode of the Frequency Drive Inverter is Air Cooling, which is a highly efficient method of dissipating the heat generated during operation. This ensures that the inverter operates at the optimal temperature and provides reliable performance over an extended period.
In summary, the Frequency Drive Inverter is a Variable Frequency Inverter that offers a range of protections against various faults, efficient Air Cooling, Torque boost of 0.0%-30.0%, and reliable performance over an extended period. It is suitable for use in a wide range of industrial applications and provides an efficient and cost-effective solution for controlling the speed of electric motors.
Air Cooling Frequency Drive Inverter Features:
- Product Name: Frequency Drive Inverter
- Protection rating: IP20
- Type: Open-loop vector VFD inverter
- Simple PLC, multi-speed reference: 16 Speed Segments Supported Through Control Terminals
- Humidity: 15%-95%, No Condensation
- Acceleration/deceleration time: 0.0s～3200.0s; 0.0min～3200.0min
- Storage temperature: −40℃-+70℃
Air Cooling Frequency Drive Inverter Technical Parameters:
|
Technical Parameters |
Description |
|---|---|
|
Acceleration/Deceleration Curves |
Straight-line, S-curve |
|
Torque Boost |
0.0%-30.0% |
|
Protections |
Protection Against Short Circuit, Overcurrent, Overload, Overvoltage, Undervoltage, Phase Loss, Overtemperature, External Faults, Etc. |
|
Speed Stability |
OLVC: 0.2%; CLVC: 0.1% |
|
Torque Precision |
≤±5%, In Vector Control Mode |
|
Automatic Voltage Regulation (AVR) |
Automatically Keeps The Output Voltage Constant When Grid Voltage Varies Within A Certain Range |
|
Humidity |
15%-95%, No Condensation |
|
Vibration |
3M3, IEC60721-3-3 |
|
Communication Protocol |
Modbus RTU (standard Configuration); Profibus-DP, CANopen, Profinet IO, Modbus TCP/IP, EtherCAT, EtherNet/IP (optional Configuration) |
|
Storage Temperature |
−40℃-+70℃ |
This is a technical parameter table for the Frequency Drive Inverter, also known as the Vector VFD or VFD Vector Inverter. It includes information on acceleration/deceleration curves, torque boost, protections, speed stability, torque precision, automatic voltage regulation (AVR), humidity, vibration, communication protocol, and storage temperature.
Air Cooling Frequency Drive Inverter Applications:
This vector inverter can be installed in a cabinet and has three control modes, namely V/F, OLVC (open Loop Vector Control), and CLVC (closed Loop Vector Control). This product can be used in a wide range of industrial applications, such as pumps, fans, compressors, and conveyor belts. The starting torque for VF mode is 100% (0.5Hz), for OLVC mode is 150% (0.5Hz), and for CLVC mode is 200% (0Hz).
COENG HV510 has an output frequency range of 0Hz-1500Hz, which makes it suitable for various industrial applications. This product is designed to operate in a humidity range of 15%-95%, with no condensation. It means that this product can perform well in harsh environments without any issues.
COENG HV510 is a reliable and efficient frequency drive inverter that can help you achieve better performance results in your industrial applications. Whether you need to control the speed of a motor or need to control the torque, this product can help you achieve your goals. With its versatile features and robust design, COENG HV510 is an ideal choice for any industrial application that requires a vector inverter.
Air Cooling Frequency Drive Inverter Support and Services:
The Frequency Drive Inverter product comes with comprehensive technical support and services to ensure optimal performance and minimal downtime:
- 24/7 technical support hotline for immediate assistance
- On-site installation and commissioning services
- Preventive maintenance programs to minimize downtime and extend product life
- Training programs for operators and maintenance personnel
- Remote monitoring and diagnostics for quick issue resolution
- Repair and replacement services for faulty or damaged components
Our team of experienced technicians and engineers are dedicated to providing the highest level of support to ensure that your Frequency Drive Inverter operates at peak performance at all times.
