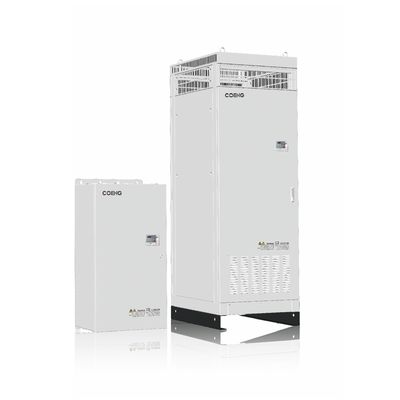

Frequency Converter Inverter Vector AC Motor Drive 0.4kW-500kW Power Range Starting Torque Adjustable Speed
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV300-2 |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton, pallet |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Frequency | 50Hz/60Hz±5% | Starting Torque | 0.5Hz: 150% (OLVC), 1Hz: 150% (OLVC) |
|---|---|---|---|
| Torque Accuracy | ≤5% (OLVC) | Torque Pulsation | ≤2% (OLVC) |
| Adjust Speed | 1:100 (OLVC), 1:50 (V/F) | Power Range | 0.4kW ~ 500kW |
| Size | Small In Size And Light In Weight | Voltage Control | V/F, OLVC (Open Loop Vector Control) |
| Highlight | frequency converter inverter 0.4kW-500kW,Vector AC Motor Drive,frequency inverter Adjustable Speed |
||
Product Description
Vector AC Motor Drive with 0.4kW-500kW Power Range Starting Torque and Adjustable Speed
Vector AC Motor Drive Product Description:
The Vector AC Motor Drive utilizes advanced vector control technology to provide precise speed and torque control, resulting in optimal performance and energy efficiency. Its compact size and user-friendly interface make it easy to install and operate.
The Vector Variable Frequency Drive is designed to withstand harsh operating conditions, with a vibration level of <5.9m/s2 (0.6g) and a humidity level of <90% RH, no-condensing. It is suitable for indoor use, with no direct sunlight, non-flammable, no corrosive gasses and liquid, and no contamination with electrically conductive material.
The Vector Inverter Drive also features input frequency options of 50Hz/60Hz±5%, ensuring compatibility with a wide range of power sources. Whether used in industrial automation, HVAC, or other applications, the Vector Frequency Inverter provides reliable and efficient motor control.
Vector AC Motor Drive Features:
- Powerful PC tools – HV Manager, provide programming, setting, debugging, monitoring and other functions, monitor the VFD status in real time.Comprehensive parameter setting function, easy to debug by user.
- All series have built-in EMC filter (user can choose), and User can discocnnect EMC filter by the short sheet in the image, mainly used in the situation which require the installation of RCD and the leakage current lower than 30mA.
- Function modular design, has both advantages of European models and Japanese models, easy to setting like Japanese models, also has strong functional expansions like European models.
- Dual RS485 interface, optional A, B interface and RJ45 interface
Vector AC Motor Drive Technical Parameters:
|
Technical Parameter |
Description |
|---|---|
|
Vibration |
<5.9m/s2 (0.6g) |
|
Torque Pulsation |
≤2% (OLVC) |
|
V/F |
4 Types: V/F (user Can Program) And Ramp (2.0 Power, 1.7 Power, 1.2 Power) |
|
Humidity |
<90% RH, No-condensing |
|
Altitude |
1000m Rated, 1000m-3000m, 1% Rated Current Derating Per 100m |
|
Power Range |
0.4kW ~ 500kW |
|
Communication Protocol |
Modbus RTU |
|
Communication Interface |
RS485, RJ45 |
|
Output Frequency |
0Hz ~ 300Hz |
|
Adjust Speed |
1:100 (OLVC), 1:50 (V/F) |
This table shows the technical parameters of the Vector Variable Frequency Drive, Vector AC Motor Drive product. It has a power range of 0.4kW ~ 500kW and supports Modbus RTU communication protocol. The communication interface includes RS485 and RJ45. The output frequency ranges from 0Hz to 300Hz and the adjust speed is 1:100 (OLVC), 1:50 (V/F). The product has a vibration of <5.9m/s2 (0.6g) and torque pulsation of ≤2% (OLVC). It has 4 types of V/F programming and ramp options, and supports operation at altitudes up to 3000m with a rated current derating of 1% per 100m.
Vector AC Motor Drive Applications:
- Oilfield pumping unit
Application Situation
Location: An oilfield.
Power: 22kW.
Effect: Save more than 30% power, avoid the
impact from overcurrent to grid and equipment.
Technical advantage
Wide voltage range, strong adaptability to
harsh grid Low starting current, smooth speed,
small impact to grid Built-in EMC filter, standard
configured DC reactor, low radiation.
- Steel plant roller
Application Situation
Location: A steel plant in Tianjin.
Power: 22kW, 30kW, 37kW, 45kW.
Effect: Stable operation, fault rate < 1%.
Technical advantage
Adapt to reciprocating acceleration and
deceleration operation.
Long - term continuous operation.
Adapt to high temperature and high
protection requirements in steel workshops
Support Profibus DP network.
- Steel plant cold saw
Application Situation
Location: A steel plant in Tangshan.
Power: 450kW.
Effect: High overload operation, stable speed
control, meets process requirements.
Technical advantage
High overload ability.
High speed response ability.
Adapt to high temperature and high protection
requirements in steel workshops.
Support Profibus DP network.
Vector AC Motor Drive Support and Services:
Our Vector Frequency Inverter product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experienced engineers is available to provide remote assistance, troubleshooting, and on-site support as needed.
We offer a range of services, including installation, commissioning, and maintenance support. Our experts can also provide training for your staff to ensure they are equipped with the knowledge and skills to operate and maintain the product effectively.
In addition, we provide product documentation and software updates to ensure that your Vector Frequency Inverter is always up-to-date and functioning at its best.
