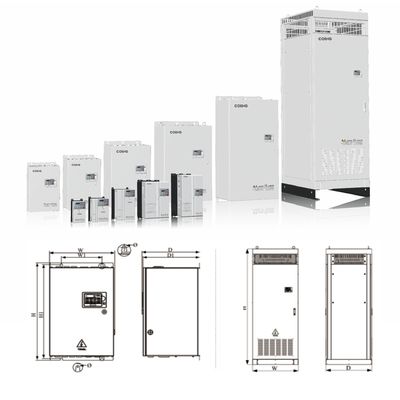

500kW Vector Frequency Inverter Product Description:

With an input frequency range of 50Hz/60Hz±5%, the Vector Frequency Inverter is versatile enough to be used in a variety of applications. Its torque accuracy of ≤5% (OLVC) ensures that motors are controlled with precision and accuracy, while its starting torque of 0.5Hz: 150% (OLVC) and 1Hz: 150% (OLVC) allows for reliable and efficient motor starting.

In addition to its precise control capabilities, the Vector Frequency Inverter also features a communication interface that includes RS485 and RJ45 ports. This allows for easy integration into existing control systems, and enables the Vector Frequency Inverter to communicate with other devices and controllers.

The 500kW Vector Frequency Inverter is also designed to operate in a wide range of environmental conditions. With a maximum humidity of <90% RH, no-condensing, it can be used in a variety of industrial and commercial environments without the risk of damage or malfunction.

Overall, the Vector Frequency Inverter, also known as the Vector Power Converter, is a versatile and reliable motor control device that offers precise and efficient control of AC motors. Its advanced features and communication interface make it an ideal choice for a wide range of applications.

500kW Vector Frequency Inverter Features:

• Product Name:500kW Vector Frequency Inverter
• Adjust Speed: 1:100 (OLVC), 1:50 (V/F)
• Input Voltage Uin:
• 200V (-15%) ~ 240V (+10%) 1PH/3PH
• 380V (-15%) ~ 480V (+10%) 3PH 500V
• 500V (-15%) ~ 690V (+10%) 3PH
• Communication Interface: RS485, RJ45
• Voltage Control: V/F, OLVC (Open Loop Vector Control)
• V/F: 4 Types: V/F (user Can Program) And Ramp (2.0 Power, 1.7 Power, 1.2 Power)
• Keywords: Vector Power Converter, Vector Micro Drive, Vector AC Motor Drive

500kW Vector Frequency Inverter Technical Parameters:

500kW Vector Frequency Inverter Applications:

• Oilfield Pumping Unit:

Location: Oilfield

Power: 22kW

Effect: Power savings of over 30%, prevents overcurrent impact on grid and equipment

Technical advantages: Wide voltage range, adaptable to harsh grid conditions; Low starting current, smooth speed with minimal impact on the grid; Built-in EMC filter and standard-configured DC reactor for low radiation.

• Steel Plant Roller:

Location: Tianjin steel plant

Power: 22kW, 30kW, 37kW, 45kW

Effect: Stable operation, fault rate below 1%

Technical advantages: Suitable for reciprocating acceleration and deceleration operations; Long-term continuous operation; Adaptable to high temperatures and high protection requirements in steel workshops; Supports Profibus DP network.

• Steel Plant Cold Saw:

Location: Tangshan steel plant

Power: 450kW

Effect: High overload operation, stable speed control, meets process requirements

Technical advantages: High overload capacity; Quick response at high speeds; Adaptable to high temperatures and high protection requirements in steel workshops; Supports Profibus DP network.

500kW Vector Frequency Inverter Support and Services:

The Vector Frequency Inverter product technical support and services include:

- Assistance with installation and configuration

- Troubleshooting and diagnostic help

- Firmware updates and upgrades

- Repair and maintenance services

- Technical documentation and user manuals

- Training and education for users and technicians
