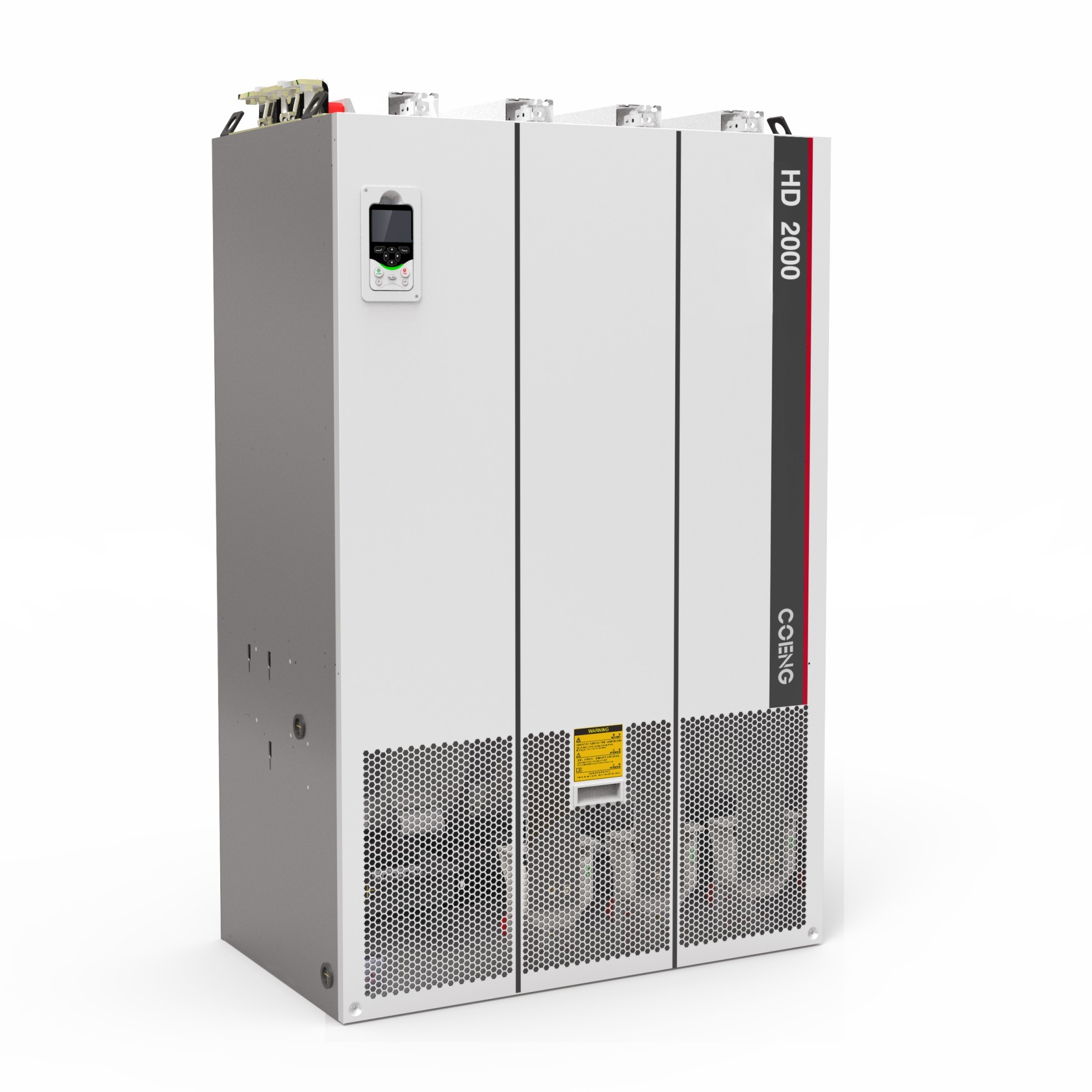

400V 690V 1140V 1380V Motor Drive VFD Inverter Versatile Modular

  • 400V 690V 1140V 1380V Motor Drive VFD Inverter Versatile Modular
Place of Origin China
Brand Name COENG
Certification CE
Model Number HD2000-C-10-2
Minimum Order Quantity 1
Packaging Details Wooden box
Delivery Time 7-30working days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Single/Multi-Drive Flexible System With Units/cabinets Supporting Two/four Quadrants Modular Design Enables Application Flexibility And Comprehensive System Integration
Rectifier Units Basic/Smart/PWM Rectifier Units For Versatile Power Conversion Max. Single Unit Power 1400kW (Air-cooled), 2800kW (Liquid-cooled)
Voltage Levels 400V, 690V, 1140V, 1380V Max. Parallel Operation Power 11200kW (Air-cooled), 22400kW (Liquid-cooled)
Highlight

1380V Motor VFD Inverter

,

1380V Drive VFD Inverter

,

400V Motor VFD
Leave a Message
Product Description
400V 690V 1140V1380V Motor Drive VFD Inverter Versatile Modular Design for Complex Drive Scenarios

Motor Drive VFD Inverter Description

The HD2000 400V 690V 1140V1380V motor drive VFD inverter is a comprehensive power solution that encompasses single-drive AC-DC-AC variable frequency drive units and DC/AC common DC bus multi-drive motor drive units, all conveniently packaged in cabinets.

The single-drive AC-DC-AC variable frequency drive units are designed to efficiently convert alternating current (AC) to direct current (DC) and then back to AC, allowing precise control over the speed and torque of the connected motors. These units are suitable for applications requiring individual motor control.



On the other hand, the DC/AC common DC bus multi-drive motor drive units are optimized for scenarios where multiple motors need to be operated in a synchronized manner. By utilizing a common DC bus, these units provide a cost-effective and space-saving solution for multi-motor setups.



Both types of drive units are housed within cabinets, ensuring easy installation and protection against environmental factors. This integrated approach allows for streamlined system deployment and simplifies maintenance and troubleshooting processes.

With the HD2000 400V 690V 1140V1380V motor drive VFD inverter, users can benefit from the versatility and flexibility of a single-drive/multi-drive system, enabling them to handle various complex drive scenarios efficiently.



Motor Drive VFD Inverter Specification

Inversion Rated Input voltage 4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc,
A:1488Vdc~2200Vdc
Output voltage 0 ~ Rectifier AC input voltage
Output frequency 0 ~ 500Hz
Speed range V/F:1:50 OLVC:1:200 CLVC:1:1000
Speed stability OLVC:0.2% CLVC:0.01%
Speed fluctuation OLVC:0.2% CLVC:0.1%
Starting torque OLVC:150%(0.5Hz) CLVC:200%(0Hz)
Torque control V/F: Unsupported OLVC:Supported CLVC: supported
Torque accuracy OLVC:5% CLVC:5%
Torque response time OLVC:5ms CLVC:5ms
Speed response time OLVC:100ms CLVC:100ms
Dynamic speed drop equivalent OLVC:0.5%*s CLVC:0.3%*s
Environmental conditions Temperature -15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies
Humidity 5% ~ 95% Mon-condensing
Altitude ≤4000m, Derating applies from 2000m to 4000m
Mechanical data Anti-vibration performance Complies with IEC 60721-3-3:2002
Protection level IP00 / IP20 / IP40
Safety level Complies with UL 508C-2004
Cooling method Air-cooled, Water-cooled
Detailed Specification Download  HD2000 Specification.pdf


Motor Drive VFD Inverter Advantages

  • Versatile Single-Drive/Multi-Drive System: The HD2000 400V 690V 1140V1380V motor drive VFD inverter offers the flexibility to operate as a single-drive or multi-drive system, allowing it to adapt to various application requirements. It can be configured with two or four quadrants, providing enhanced control options.



  • Modular Design for Application Flexibility: The HD2000 400V 690V 1140V1380V motor drive VFD inverter's modular design enables easy customization and integration into diverse systems. It allows for seamless integration with other components, enhancing overall system performance and adaptability.



  • Comprehensive Rectifier Units: The HD2000 400V 690V 1140V1380V motor drive VFD inverter features a range of rectifier units including Basic, Smart, and PWM options. This comprehensive selection ensures precise and efficient power conversion, tailored to specific application needs.



  • High Power Capacity: With a maximum single unit power of 1400kW (Air-cooled) and 2800kW (Liquid-cooled), the HD2000 can handle demanding power requirements, providing reliable performance in challenging conditions.



  • Wide Voltage Range: The HD2000 supports multiple voltage levels, including 400V, 690V, 1140V, and 1380V. This versatility allows for compatibility with various power supply systems, expanding its applicability across different industries.



  • Scalable Parallel Operation: The HD2000 400V 690V 1140V1380V motor drive VFD inverter enables parallel operation with a high maximum power capacity of 11200kW (Air-cooled) and 22400kW (Liquid-cooled). This scalability facilitates the synchronized operation of multiple drives, enhancing system performance and efficiency.



  • Motor Compatibility: The HD2000 400V 690V 1140V1380V motor drive VFD inverter is compatible with various motor types, including asynchronous induction motors, permanent magnet synchronous motors, and synchronous reluctance motors. This wide motor support ensures compatibility with different motor-driven applications.



  • Advanced Control Modes: The HD2000 400V 690V 1140V1380V motor drive VFD inverter offers multiple control modes, including V/F, Closed-loop vector control (CLVC), and open-loop vector control (OLVC). These control options provide precise motor control and optimization for different operational requirements.



  • Efficient Cooling Options: The HD2000 400V 690V 1140V1380V motor drive VFD inverter is available in both Air-Cooled (Standard configuration) and liquid-cooled (L) variants. This flexibility in cooling modes ensures efficient heat dissipation and reliable operation in various environments.

Motor Drive VFD Inverter Typical Applicantion

400V 690V 1140V 1380V Motor Drive VFD Inverter Versatile Modular 0

The HD2000 400V 690V 1140V1380V motor drive VFD inverter stands out with its versatile system configuration, modular design, comprehensive rectifier units, high power capacity, wide voltage range, scalability, motor compatibility, advanced control modes, and efficient cooling options. These advantages make it a reliable and adaptable choice for complex drive applications.
