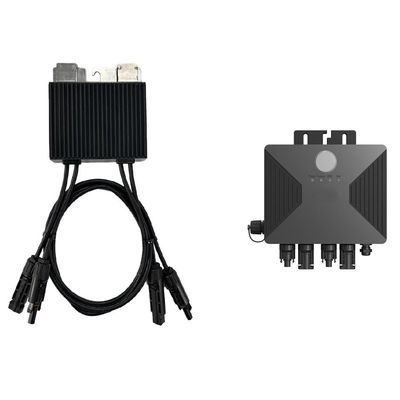

Solar DC Optimizer 800W Pv Panel Optimizer PV Power System Rapid Shutdown WiFi Monitoring
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE |
| Model Number | IOMS 800 |
| Minimum Order Quantity | 1 |
| Price | 39-45 |
| Packaging Details | Carton, pallet |
| Delivery Time | 5-30working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 40000pieces/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Input Power | 800W | Max Input Voltage | 70V |
|---|---|---|---|
| Max Input Short-circuits Current | 23A | Output Voltage | 0-60V |
| Max Output Power | 780W | ||
| Highlight | Solar DC Optimizer 800W,Solar DC Optimizer PV,pv panel optimizer |
||
Product Description
Solar DC Optimizer 800W for PV Power System with Rapid Shutdown WiFi Monitoring
Solar DC Optimizer 800W Description
Our cutting-edge 800W photovoltaic (PV) optimizer is a highly advanced solution designed to enhance the performance and safety of solar energy systems. This innovative product incorporates both rapid shutdown and monitoring functionalities, ensuring optimal efficiency and reliable operation.
The rapid shutdown feature allows for swift and secure shutdown of the PV system in case of emergencies or maintenance requirements. With this capability, the optimizer minimizes risks associated with electrical hazards, ensuring the safety of both installers and first responders. By quickly isolating the PV array from the grid, it prevents any potential electrical backfeed, effectively reducing the risk of electric shock and fire hazards.
Additionally, our optimizer boasts comprehensive monitoring capabilities, providing real-time data and insights into the performance of the PV system. Through an intuitive user interface, users can access key information such as power output, voltage, current, and energy production. This data empowers users to optimize their solar system's efficiency, identify potential issues promptly, and make informed decisions regarding maintenance or system upgrades.
Solar DC Optimizer 800W Feature
- Optimize Power Generation: Module-level MPPT, no worry about shadow occlusion, power generation increased by 5%-25%
- Wide Applicability: Compatible with market mainstream PV modules and various inverters
- Flexible Use: Suitable for PV power plants in operation or under constructon
- Monitoring: Module-level data intelligent monitoring, one App to manage the PV power plant
- Easy Installation: Clips installation, 5 minutes quick installation
- Safety:Module-level automatic fast rapid shutdown in less than 20 seconds, ensuring fire and maintenance safety
- Quality Without Worry: 12-years standard warranty, high stability, service life over 25 years
- Advanced MPPT Algorithm:The MPPT algorithm is not only advanced but also boasts rapid calculation speeds, resulting in efficiency levels exceeding 99.5% and peaking at 99.7%.
Solar DC Optimizer 800W parameters
| Model | IOMS 800 |
| DC input | |
| Max input power | 800W |
| Max voltage | 70V |
| MPPT voltage range | 12-60V |
| Max continuous input current | 21A |
| Max input short-circuits current | 23A |
| Night self-consumption | 0W |
| DC output | |
| Output voltage | 0-60V |
| Max continuous output current | 21A |
| Max output power | 780W |
| Max system voltage | 1500V |
| DC output during shutdown | |
| Output voltage (without IOMS CO) | 1±0.1V |
| Efficiency | |
| Peak MPPT efficiency | ≥99.5% |
| Communication | |
| Communication Method | PLC |
| Communication parameter | PV Voltage, Output Voltage, Output Current, Output Power, Temperature, State |
| Advanced protection | |
| Input overvoltage protection | >75V |
| Output overcurrent protection | >22A |
| Output overload protection | >800W |
| High temperature protection | >110℃ |
| General data | |
| Dimensions(W*D*H) | 116*31.5*123mm |
| Weight | 650g |
| Input/output cable length | 200/1100mm |
| Input/output cable size | 4mm²(12AWG) / 4mm²(12AWG) |
| Terminals | MC4(Compatible) |
| Protection rating | IP68 |
| Relative humidity | 0~100%RH |
| Operating temperature range | -40~+70°C |
| Cooling | Natural cooling |
The 800W PV optimizer is engineered to maximize energy harvest by employing advanced power electronics and MPPT (Maximum Power Point Tracking) algorithms. This technology ensures that the solar panels operate at their peak efficiency, even under challenging environmental conditions such as shading or temperature variations. By dynamically adjusting the electrical characteristics of each panel, the optimizer maximizes the overall system output, leading to higher energy yields and improved return on investment.
Furthermore, our product features a robust and durable design, capable of withstanding harsh weather conditions and long-term operation. It is built with high-quality materials and adheres to rigorous industry standards, guaranteeing reliability and longevity.
In conclusion, our 800W photovoltaic optimizer with rapid shutdown and monitoring functionalities represents a state-of-the-art solution for solar energy systems. By prioritizing safety, efficiency, and performance, this product offers an exceptional user experience and contributes to the advancement of sustainable energy technologies.
