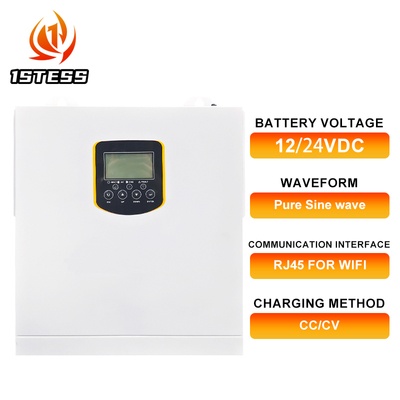

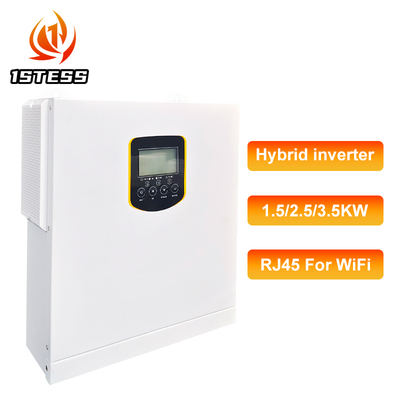

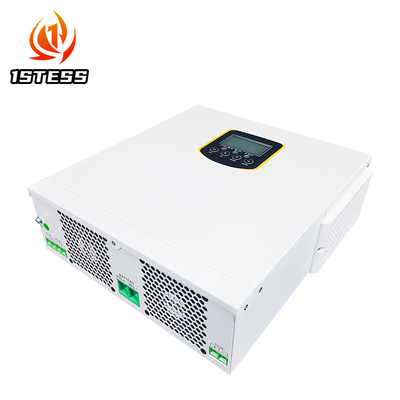

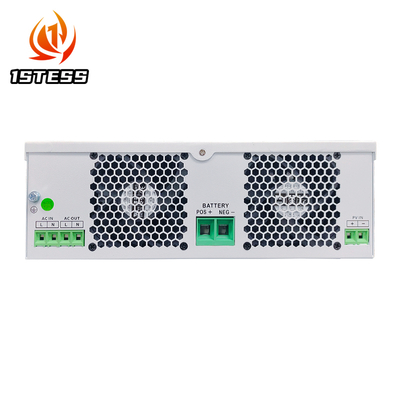

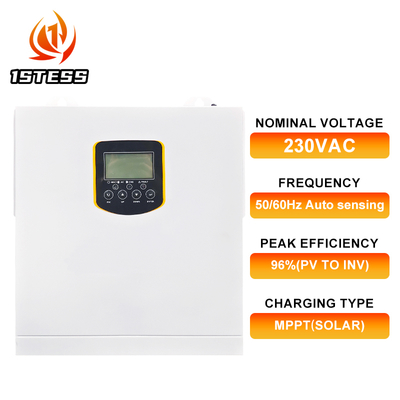

1.5KW 24V Single Phase Hybrid Solar Inverter Pure Sine Wave MPPT WiFi Remote Control
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | CM-N (PV30-500VDC) |
| Document | CM-N Series.pdf |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton, pallet |
| Delivery Time | 10-30working days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 20000piece/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details

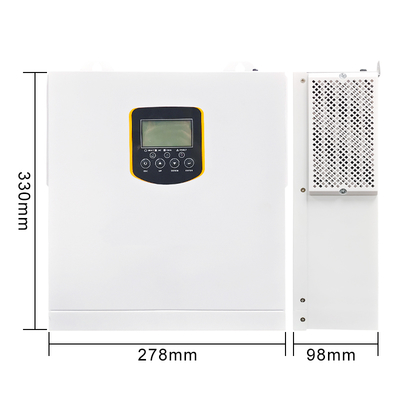

| Size | 330*278*98mm | Battery Voltage | 12V/24V |
|---|---|---|---|
| Input Voltage | 230vac | OEM | Accept OEM |
| Inverter Type | Hybrid Solar Inverter | Output Type | Single, Pure Sine Wave |
| Gross Weight | 3.8kg | ||
| Highlight | 24V hybrid solar inverter,1.5KW solar inverter with MPPT,WiFi controlled solar inverter |
||
Product Description
Product Features
Battery Wake-up Function
Pure Sine Wave
PVInput 500Vdc Max
Built-in MPPT60A-100A
Detachable dust coverforharshenvironment
Wifi remote monitoring optional
Support multiple output priority:UTL,SOL,SBU,SUB
EQ function to optimize battery performance and extend lifecycle
| MODEL | CM1500-12N | CM1500-24N | CM2500-24N | CM3500-24N |
|---|---|---|---|---|
| Capacity | 1500VA/1500W | 1500VA/1500W | 2500VA/1500W | 3500VA/1500W |
| Parallel Capability | NO | NO | NO | NO |
| Lithium Battery Activation | NO | NO | NO | NO |
| Battery Wake-up Function | YES | YES | YES | YES |
| Battery Voltage | 12VDC | 24VDC | 24VDC | 24VDC |
| Solar Charger TYPE | MPPT | MPPT | MPPT | MPPT |
| Communication Interface | RJ45 For WiFi | RJ45 For WiFi | RJ45 For WiFi | RJ45 For WiFi |
| Nominal Voltage | 230VAC | 230VAC | 230VAC | 230VAC |
grid-tied inverter, also known as a grid-connected inverter, is a critical component in solar power systems that connects photovoltaic (PV) panels directly to the utility grid. It converts the direct current (DC) generated by solar panels into alternating current (AC) that can be used by household appliances or fed back into the grid.
1. Grid Connection:
Designed to synchronize with the utility grid, ensuring that the output frequency and voltage match grid standards.
2. Maximized Energy Harvesting:
Utilizes Maximum Power Point Tracking (MPPT) technology to optimize energy extraction from solar panels under varying conditions.
3. Net Metering:
Enables homeowners to receive credit for excess energy produced and fed back into the grid, reducing electricity bills.
4.Safety Features:
Equipped with protective mechanisms, such as anti-islanding protection, to ensure safe operation during grid outages.
5.Compact Design:
Typically lightweight and compact, allowing for easy installation in residential or commercial settings.
6.Monitoring Capabilities:
Often includes monitoring features that allow users to track system performance and energy production through mobile apps or web interfaces.
