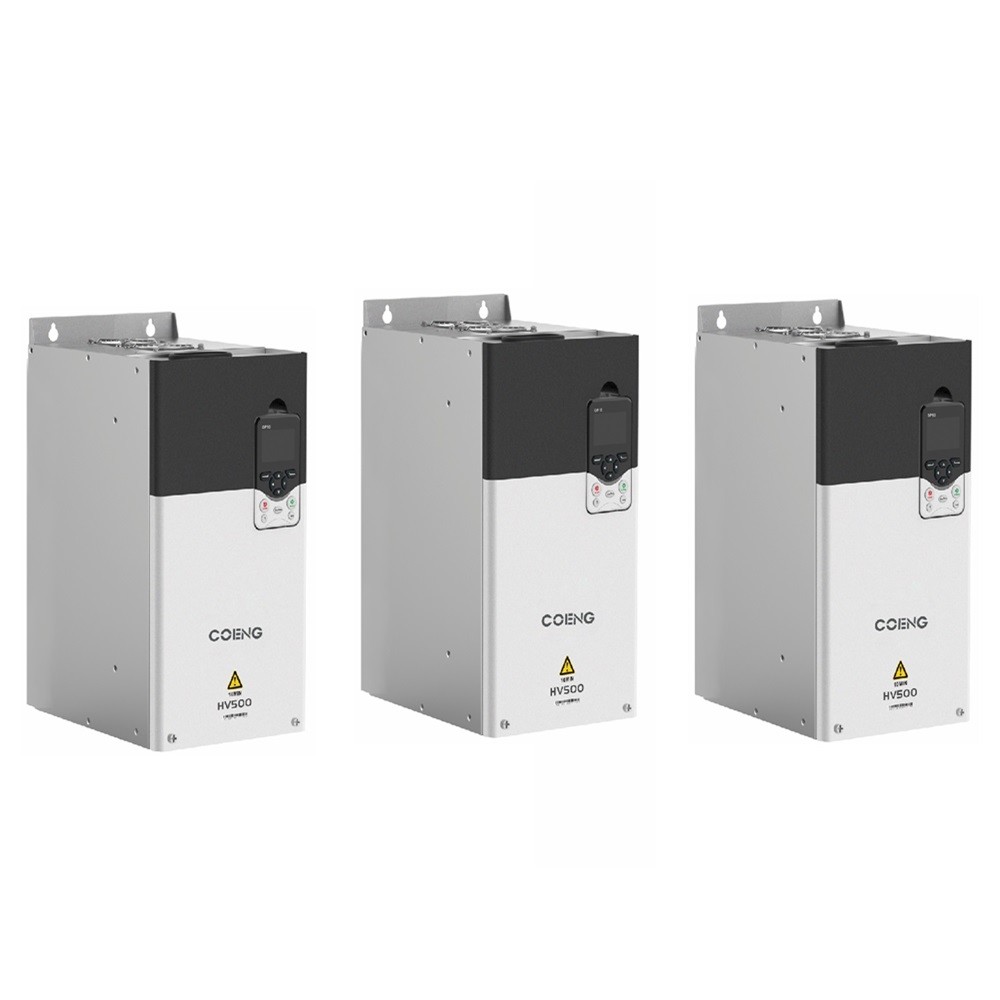

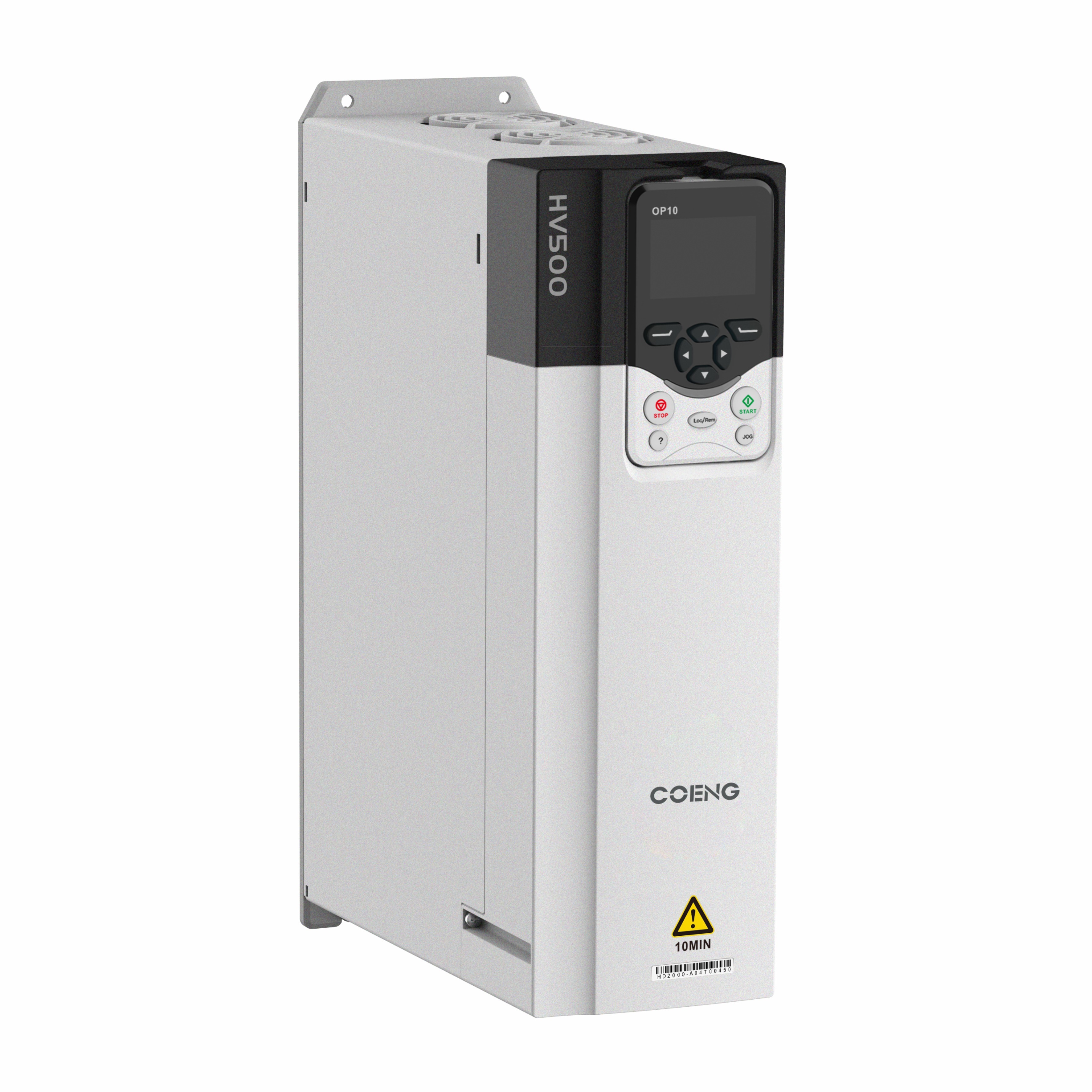

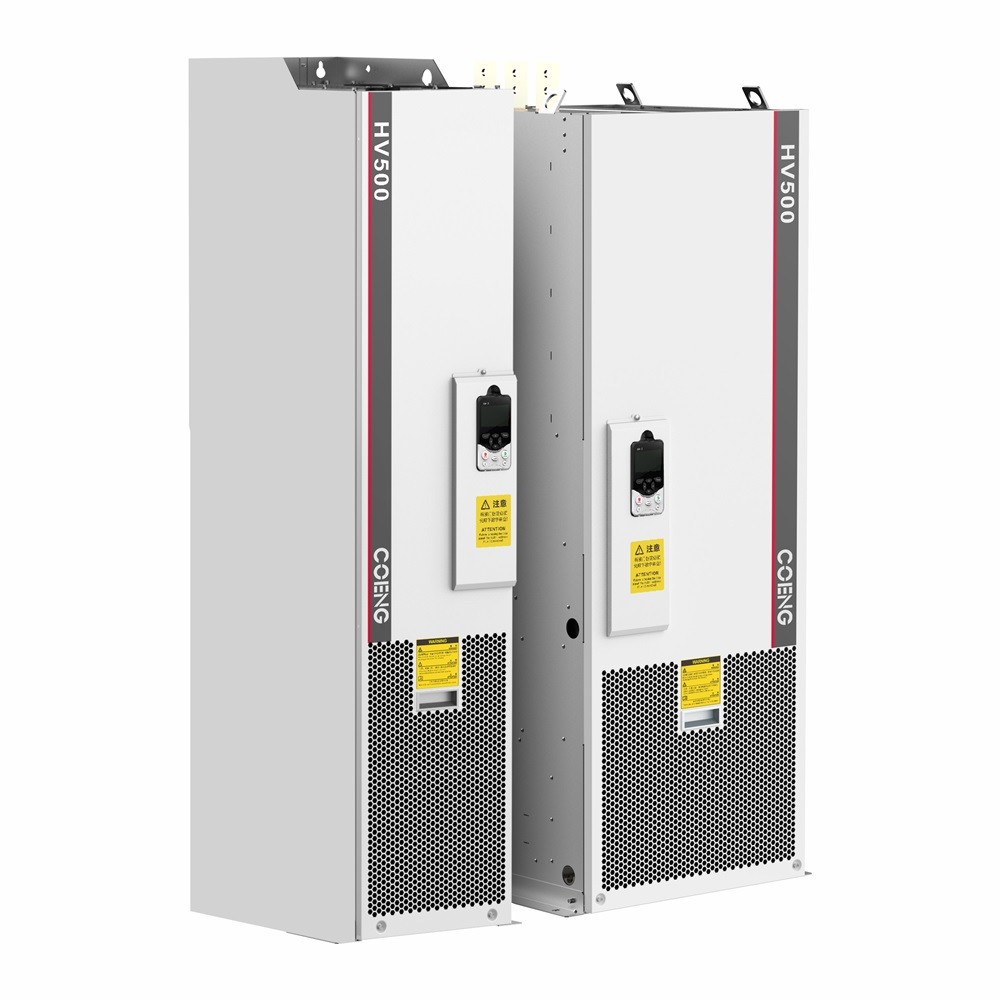

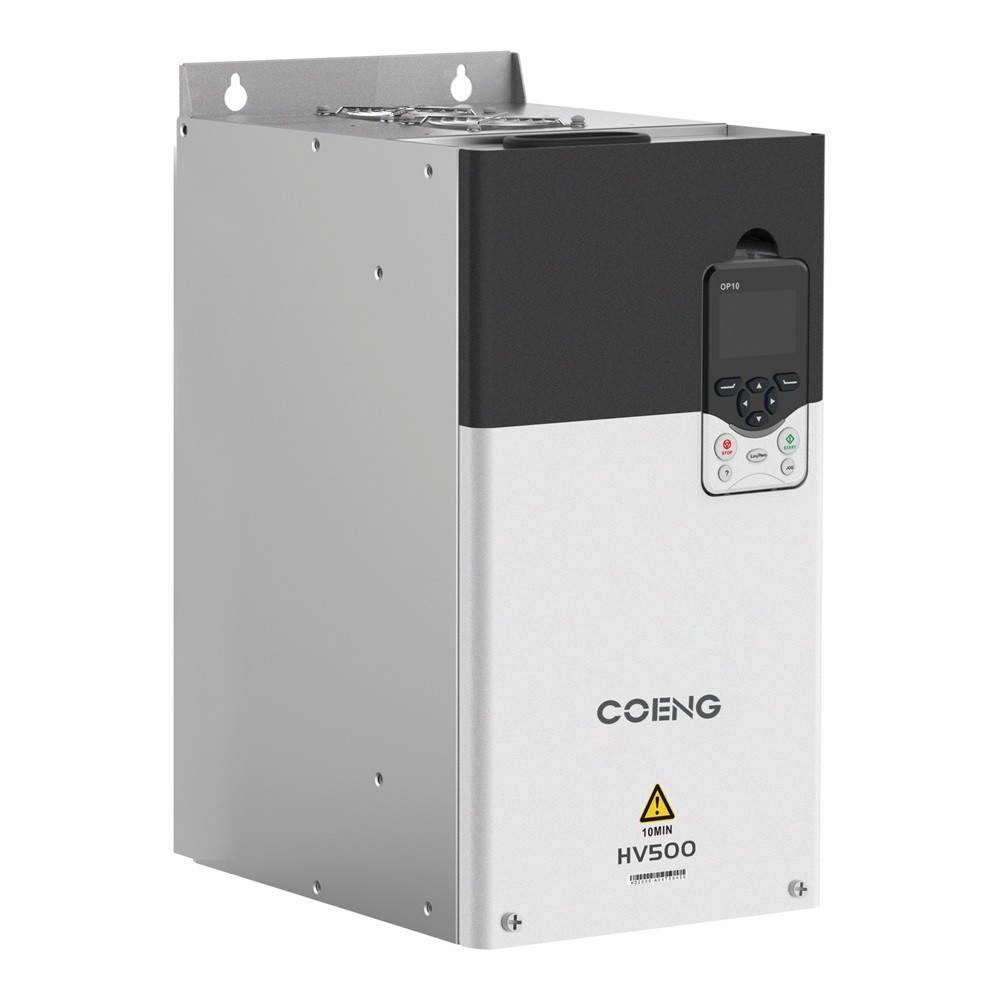

All-in-One Drive Solution HV500 Series Inverter with Built-In PLC Functionality
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV500-9 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Unbalance Degree Of Uin | ≤3% | Control Method | V/F, OLVC (Open-Loop Vector Control), CLVC (Close-Loop Vector Control) |
|---|---|---|---|
| Speed Regulation Precision | OLVC 0.2%, CLVC 0.01% | Range Of Speed Regulation | 1:10 V/F, 1:100 OLVC, 1:1000 CLVC |
| Output Frequency | 0Hz~500Hz | Torque Lifting | 0.0％~30.0％ |
| Input Frequency | 50Hz/60Hz±5% | Input Uin | 200V (-15%) ~240V (+10%) 3Phase , 380V (-15%) ~480V (+10%) 3Phase, 500V (-15%) ~690V (+10%) 3Phase |
| Highlight | PLC Functionality Inverter,Built-In PLC Inverter,All-in-One Drive Solution Inverter |
||
Product Description
PERFORMANCE CHARACTERISTICS
Back-end quick debugging software
Powerful and easy to use, with functions such as parameter setting, real-time oscilloscope, fault recording, event recording, etc.
Excellent performance
Suspending at zero speed;
Torque response 1-3ms;
Extremely low dynamic speed drop and dynamic speed drop equivalent;
Excellent robustness;
Accurate off-line/online motor model identification.
Various needs satisfied
Standard LCD panel to improve user experience;
Master-slave control function;
Expandable communication card, encoding disk card, voltage detection card.
Ease of use
External 24V DC input power supported;
A Built-in brake unit is possible to save installation control;
Book style design to support seamless side-by-side installation.
Universality
Several international standard certifications passed, conforming to RoHS directives;
V/F, OLVC and CLVC control supported;
Several communication protocols supported;
Asynchronous and permanent magnet synchronous motors supported.
Durability
Mechanical vibration level 3M3;
Independent air duct design;
Conformal coating automatic spraying;
Built-in dynamic junction temperature model to facilitate product safety application.
MAIN PARAMETERS
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1. Industrial Automation
The HV500 inverter is widely used in industrial automation systems, where precise control over motor speed and torque is crucial. Its ability to support various control methods, such as V/F, open-loop vector control (OLVC), and closed-loop vector control (CLVC), allows for optimal performance in tasks ranging from conveyor systems to robotic arms.
2. Pumping Systems
This inverter is ideal for driving pumps in applications such as water treatment, irrigation, and HVAC systems. The inverter’s precise speed regulation capabilities help maintain flow rates and pressure, enhancing efficiency and reducing energy consumption.
3. Fans and Blowers
In ventilation and air conditioning systems, the HV500 Series inverter effectively controls fan and blower operation. By adjusting the motor speed based on demand, it not only optimizes performance but also minimizes energy usage.
4. Material Handling
In manufacturing and logistics, the inverter can be employed in various material handling equipment, such as hoists, lifts, and palletizers. Its quick torque response and dynamic control capabilities ensure smooth operation, even under varying load conditions.
5. Mining and Heavy Duty Applications
The robustness of the HV500 makes it suitable for heavy-duty applications in mining and construction. It can withstand harsh environmental conditions and is designed to operate reliably under significant mechanical stress.
