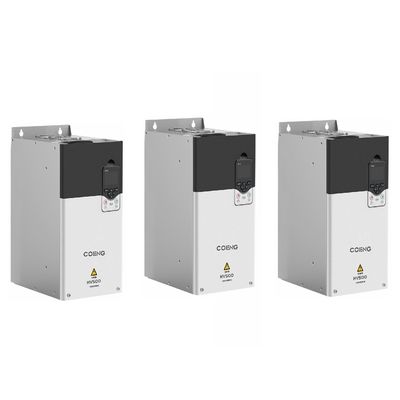

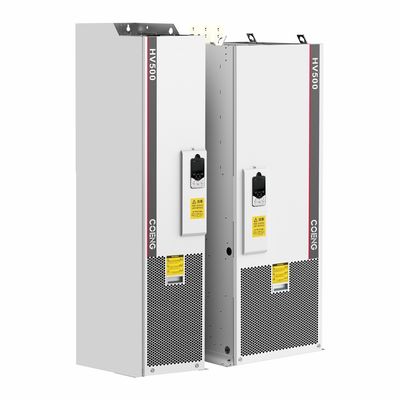

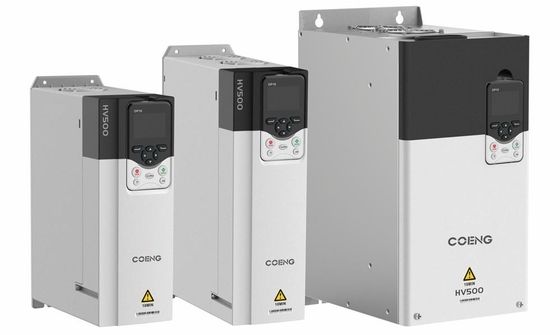

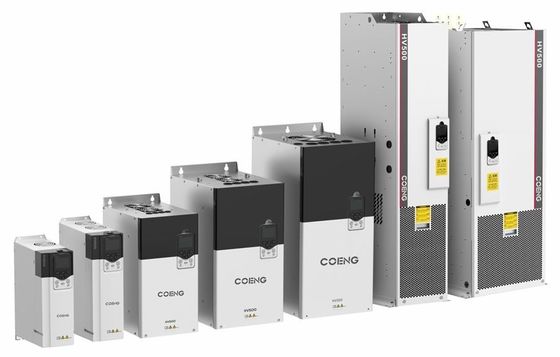

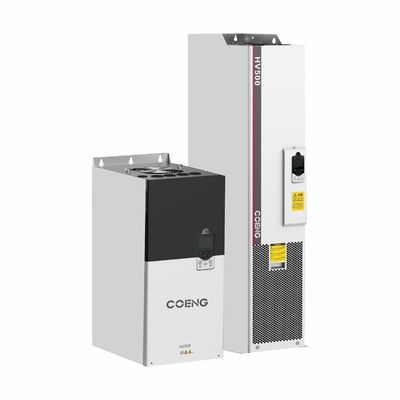

HV500 Frequency Inverter Advanced Low Voltage Drive for 220V-690V Systems

  • HV500 Frequency Inverter Advanced Low Voltage Drive for 220V-690V Systems
  • HV500 Frequency Inverter Advanced Low Voltage Drive for 220V-690V Systems
  • HV500 Frequency Inverter Advanced Low Voltage Drive for 220V-690V Systems
  • HV500 Frequency Inverter Advanced Low Voltage Drive for 220V-690V Systems
  • HV500 Frequency Inverter Advanced Low Voltage Drive for 220V-690V Systems
Place of Origin China
Brand Name COENG
Certification CE, IEC
Model Number HV500-12
Minimum Order Quantity 1
Packaging Details Wooden case
Delivery Time 10-30working days
Payment Terms L/C, T/T
Supply Ability 20000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Start Torque VF: 100% (0.5Hz), OLVC: 150% (0.5Hz), CLVC: 180% (0Hz) Acceleration And Deceleration Curve Straight, S Curve
Motor Type Asynchronous Motor, Synchronous Motor Torque Precision ≤5%, Vector Control
Speed Regulation Precision OLVC 0.2%, CLVC 0.01% Dynamic Speed Reduction OLVC＜0.5%*s, CLVC＜0.3%*s
Control Method V/F, OLVC (Open-Loop Vector Control), CLVC (Close-Loop Vector Control) Torque Lifting 0.0％~30.0％
Highlight

220V-690V Frequency Inverter

,

Advanced Low Voltage Frequency Inverter

,

Frequency Inverter Drive
Leave a Message
Product Description

PERFORMANCE CHARACTERISTICS



   Back-end quick debugging software

Powerful and easy to use, with functions such as parameter setting, real-time oscilloscope, fault recording, event recording, etc.



   Excellent performance

Suspending at zero speed;
Torque response 1-3ms;
Extremely low dynamic speed drop and dynamic speed drop equivalent;
Excellent robustness;
Accurate off-line/online motor model identification.



   Various needs satisfied

Standard LCD panel to improve user experience;
Master-slave control function;
Expandable communication card, encoding disk card, voltage detection card.



   Ease of use

External 24V DC input power supported;
A Built-in brake unit is possible to save installation control;
Book style design to support seamless side-by-side installation.



   Universality

Several international standard certifications passed, conforming to RoHS directives;
V/F, OLVC and CLVC control supported;
Several communication protocols supported;
Asynchronous and permanent magnet synchronous motors supported.



   Durability

Mechanical vibration level 3M3;
Independent air duct design;
Conformal coating automatic spraying;
Built-in dynamic junction temperature model to facilitate product safety application.



HV500 Frequency Inverter Advanced Low Voltage Drive for 220V-690V Systems 0HV500 Frequency Inverter Advanced Low Voltage Drive for 220V-690V Systems 1HV500 Frequency Inverter Advanced Low Voltage Drive for 220V-690V Systems 2



MAIN PARAMETERS



Model HV500 Low Voltage Engineering Single-Drive Inverter
iInput/output
Power		 Input Uin 200V (-15%) ~240V (+10%) 3Phase , 380V (-15%) ~480V (+10%) 3Phase,
500V (-15%) ~690V (+10%) 3Phase
Input Frequency 50Hz/60Hz±5%
Unbalance Degree of Uin ≤3%
Output Uout 0V~Input Uin
Output Frequency 0Hz~500Hz
Power range 2.2kW~560kW
Control
Performance		 Motor Type Asynchronous / Synchronous
Control Method V/F, OLVC (Open-Loop Vector Control), CLVC (Close-Loop Vector Control)
Range of Speed Regulation 1:10 V/F, 1:100 OLVC, 1:1000 CLVC
Start Torque VF: 100% (0.5Hz), OLVC: 150% (0.5Hz), CLVC: 180% (0Hz)
Torque Precision ≤5%, Vector Control
Torque Pulsation ≤5%, Vector Control
Speed Regulation Precision OLVC 0.2%, CLVC 0.01%
Torque Response <5ms, Vector Control
Dynamic Speed Reduction OLVC<0.5%*s, CLVC<0.3%*s
Acceleration and Deceleration Time 0.0s~3200.0s, 0.0min~3200.0min
Torque Lifting 0.0%~30.0%
Overload Heavy Load Application 150% 1min/5min, Light Load Application 110% 1min/5min
V/F Curve Multiple ways: linear V/F curve, 5 kinds of torque reduction characteristic curve mode (2.0 power, 1.8 power, 1.6 power, 1.4 power, 1.2 power), user-defined VF curve
Input Frequency Accuracy Digital: 0.01Hz, Analog: 0.01Hz
Control
Performance		 Acceleration and Deceleration Curve Straight, S Curve
Multiple Speed-Steps Operation 16-Speed Steps Operation through control terminals
Automatic VoltageAdjustment (AVR) Keeping the output voltage constant automatically when the grid voltage changes within a certain range
Fixed Length Setted and Fixed Length Control
In-build PID It Can Easily Constructed Closed loop control system
Enhencement Function Free Function Block
iInput/output Set Frequency Keyboaed, UP/DOWN Terminals, Multiple Speed-Steps Operation, Terminals Pulsation, Com
Power
Analog Input Terminals AI1: 0V~10V/-10V~10V, AI2: 0V~10V/0(4) mA~20mA
Digital Input Terminals DI1-DI6, 6 programmable digital input terminals, optocoupler isolation, compatible with drain/source input
Digital Input/Output Terminals DIO1: Fast pulse output, normal input/output; DIO2: fast pulse input, normal input/output
Anolog Output Terminals 2 Strings 0V~10V/0 (4) mA~20mA
Relay Output 2Strings Contact Type FormC
Motor Temperature Detection Support PT100/PT1000/KTY84
STO Interface SIL3/PLe Safe torque shutdown function
Com Com Protocol Modbus RTU (Standard), Profibus,CANopen,profinet,Devicenet,ControlNet
profinet,Devicenet,ControlNet
t
Environment Altitude Without Derating Operation Within 2000m Altitude; 2000m~4000m, Each 100m lifting, Derating 1% (Current)
Operation Temperature -25℃~+40℃ (40℃~55℃ Derating)
Humidity 15%~95%, Without Condensation
Vibration 3M3, IEC60721-3-3
Storage Temperature -40℃~+70℃
Operation Place Indoor, Without direct sunlight, no flammable, corrosive gases, liquids and conductive particles
Accessory Encoding card, communication expansion card, voltage detection card
Protection Function Short circuit, over current, overload, over voltage, under voltage, phase loss, over temperature, external fault, etc.
Efficiency 5.5kW~22kW: ≥93%; Above 30kW: ≥95%
Installation Method Cabinet
Protection Degree IP20
Cooling Forced Air Cooling





The HV500 Series inverter is a high performance low voltage engineering variable frequency drive solution designed for a wide range of industrial applications, supporting input voltage range 220V-690V and covering power range 2.2kW-560kW. The inverter uses advanced technology to provide efficient motor control and precise frequency regulation for a variety of industrial equipment such as pumps, fans, compressors, etc. Its compact design and rugged construction ensure reliability and durability in harsh environments. Whether used in a 220V-690V system, the HV500 inverter provides a stable and efficient drive solution that is ideal for industrial automation and energy saving retrofits.
