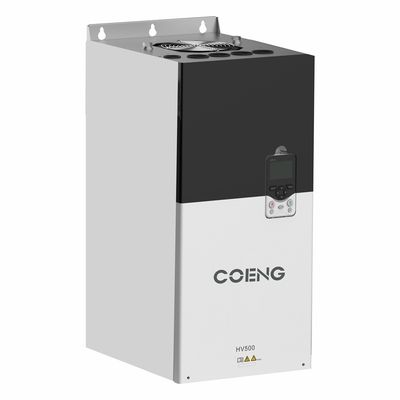

VFD Motor Converter Digital Frequency Inverter VFD Inverter With Torque Lifting 0.0-30.0%
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV500-2 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Frequency Accuracy | Digital: 0.01Hz, Analog: 0.01Hz | Control Method | V/F, OLVC (Open-Loop Vector Control), CLVC (Close-Loop Vector Control) |
|---|---|---|---|
| Torque Pulsation | ≤5%, Vector Control | Oem | Yes |
| Torque Precision | ≤5%, Vector Control | Start Torque | VF: 100% (0.5Hz), OLVC: 150% (0.5Hz), CLVC: 180% (0Hz) |
| Torque Lifting | 0.0％~30.0％ | Output Frequency | 0Hz~500Hz |
| Highlight | VFD Motor Converter,digital frequency inverter,VFD Inverter |
||
Product Description
VFD Motor Converter Digital Frequency Accuracy VFD Inverter with Torque Lifting 0.0-30.0%
VFD Motor Converter Product Description:
Our VFD Frequency Inverter is designed to work with input Uin voltages ranging from 200V (-15%) to 240V (+10%) 3Phase, 380V (-15%) to 480V (+10%) 3Phase, and 500V (-15%) to 690V (+10%) 3Phase. This means it can be used with a range of different power supplies, making it even more versatile.
With torque pulsation of ≤5% and vector control, our VFD Frequency Inverter ensures smooth and reliable operation. It also offers a variety of control methods, including V/F, OLVC (Open-Loop Vector Control), and CLVC (Close-Loop Vector Control), giving you ultimate control over your system.
Our VFD Frequency Inverter also boasts an impressive torque response time of less than 5ms, thanks to its vector control capabilities. This means you can rely on it for quick and precise adjustments to your system.
Whether you are looking for a single or multi-drive variable frequency system, our VFD Frequency Inverter is the perfect choice. With its versatile capabilities and reliable performance, it is sure to be a valuable addition to any engineering VFD system.
VFD Motor Converter Features:
- Product Name: VFD Frequency Inverter
- Acceleration and Deceleration Curve: Straight, S Curve
- Acceleration and Deceleration Time: 0.0s~3200.0s, 0.0min~3200.0min
- Torque Precision: ≤5%, Vector Control
- Input Uin: 200V (-15%) ~240V (+10%) 3Phase , 380V (-15%) ~480V (+10%) 3Phase, 500V (-15%) ~690V (+10%) 3Phase
- Torque Response: ﹤5ms, Vector Control
The VFD Frequency Inverter is a motor VFD that provides both straight and S curve acceleration and deceleration curves. It offers a wide range of acceleration and deceleration times, ranging from 0.0s to 3200.0s or 0.0min to 3200.0min. With a torque precision of ≤5% and vector control, this VFD provides accurate and efficient control of your motor. It has an input Uin range of 200V (-15%) to 240V (+10%) 3Phase, 380V (-15%) to 480V (+10%) 3Phase, and 500V (-15%) to 690V (+10%) 3Phase. The torque response is less than 5ms, making it a reliable choice for single and multi-drive variable frequency systems.
VFD Motor Converter Technical Parameters:
|
Technical Parameters |
Values |
|---|---|
|
Output Uout |
0V-Input Uin |
|
Output Frequency |
0Hz~500Hz |
|
Multiple Speed-Steps Operation |
16-Speed Steps Operation Through Control Terminals |
|
Speed Regulation Precision |
OLVC 0.2%, CLVC 0.01% |
|
Input Frequency Accuracy |
Digital: 0.01Hz, Analog: 0.01Hz |
|
Torque Pulsation |
≤5%, Vector Control |
|
Unbalance Degree of Uin |
≤3% |
|
Control Method |
V/F, OLVC (Open-Loop Vector Control), CLVC (Close-Loop Vector Control) |
|
Input Frequency |
50Hz/60Hz±5% |
|
Motor Type |
Asynchronous Motor, Synchronous Motor |
VFD Motor Converter Applications:
The COENG HV500 VFD is a versatile product that can be used in various occasions and scenarios. It is suitable for driving motors in industrial machinery, pumps, fans, and other equipment. The product has an output frequency range of 0Hz~500Hz, making it ideal for applications that require variable speed control. Its dynamic speed reduction feature ensures that the motor speed is reduced smoothly without any sudden changes. The acceleration and deceleration curves can be set as straight or S curves to ensure smooth and efficient operation.
The input frequency accuracy of the COENG HV500 VFD is highly accurate. The digital input frequency accuracy is 0.01Hz, and the analog input frequency accuracy is also 0.01Hz. This ensures that the motor operates at the desired speed without any deviation. The torque precision is also high, with a precision of ≤5% under vector control.
The COENG HV500 VFD is a motor drive VFD that is suitable for various scenarios. It is widely used in industrial machinery, pumps, fans, and other equipment. Its high performance and reliability make it an ideal choice for applications that require variable speed control. The product is highly efficient and comes with a dynamic speed reduction feature that ensures smooth and efficient operation. The product is certified with CE and IEC standards and has a supply ability of 20000 sets per year.
VFD Motor Converter Support and Services:
- Technical Support: Assistance with inquiries, troubleshooting, and technical issues via phone, email, or online chat.
- Installation and Commissioning: Expert guidance and support for proper installation and configuration.
- Training and Documentation: Training sessions and documentation covering product features, operation, programming, and maintenance.
- Maintenance and Repair Services: Skilled technicians for efficient diagnosis and repair, minimizing downtime.
- Spare Parts Availability: Inventory of spare parts for prompt replacements and minimal disruption.
- Upgrades and Firmware Updates: Regular updates for new features, performance enhancements, and bug fixes.
- Extended Warranty and Service Contracts: Additional coverage and peace of mind beyond the standard warranty period.
- Online Resources and Knowledge Base: Access to product information, technical documents, FAQs, and application examples for self-service assistance.
