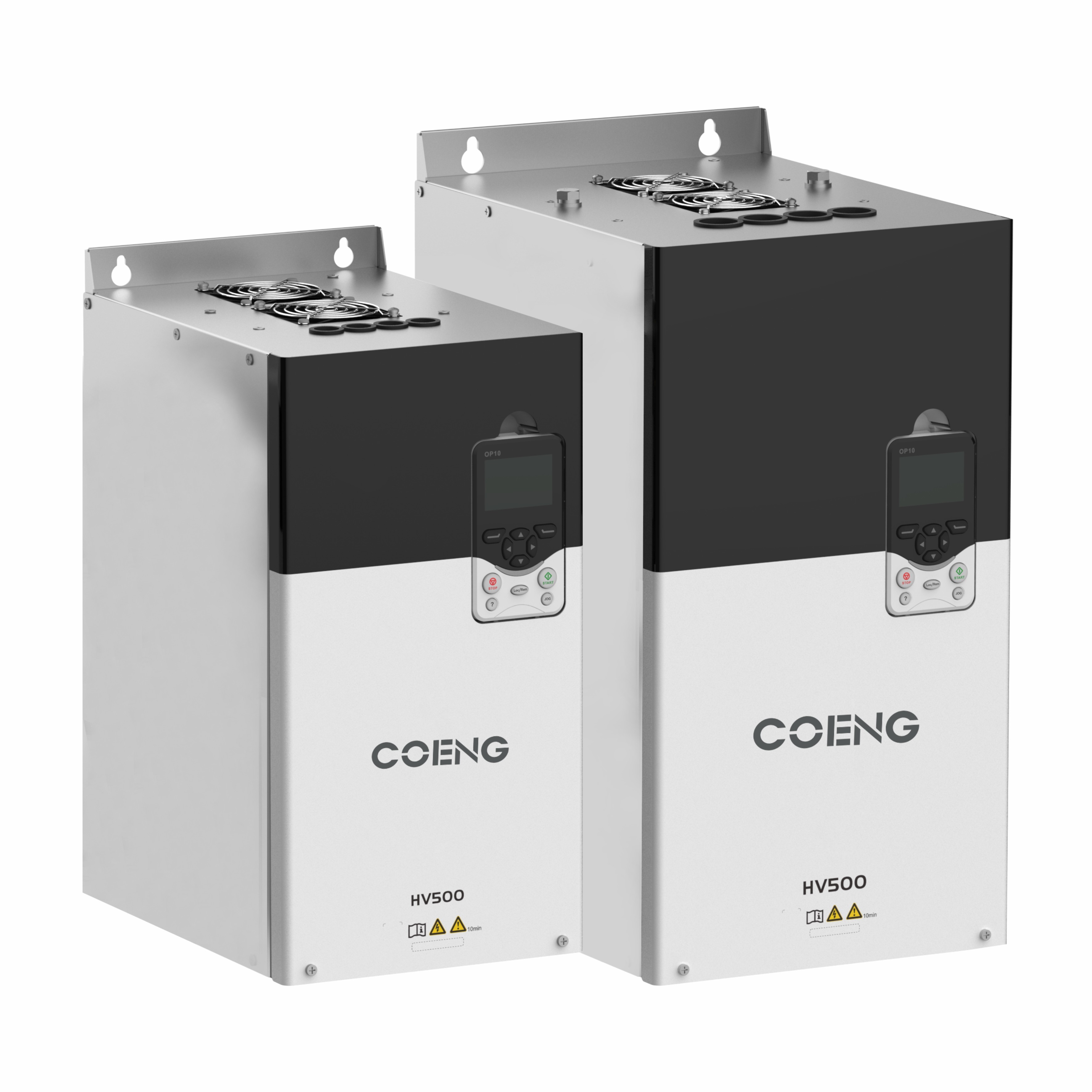

60hz VFD Frequency Inverter Precision Speed Regulation For 16-Speed Steps Operation
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV500-7 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Torque Lifting | 0.0％~30.0％ | Input Uin | 200V (-15%) ~240V (+10%) 3Phase , 380V (-15%) ~480V (+10%) 3Phase, 500V (-15%) ~690V (+10%) 3Phase |
|---|---|---|---|
| Acceleration And Deceleration Curve | Straight, S Curve | Multiple Speed-Steps Operation | 16-Speed Steps Operation Through Control Terminals |
| Speed Regulation Precision | OLVC 0.2%, CLVC 0.01% | Dynamic Speed Reduction | OLVC＜0.5%*s, CLVC＜0.3%*s |
| Output Frequency | 0Hz~500Hz | Input Frequency | 50Hz/60Hz±5% |
| Highlight | 60hz frequency inverter,60hz VFD Frequency Inverter,VFD Frequency Inverter Precision |
||
Product Description
VFD Frequency Inverter 0-30% Torque Lifting Precision Speed Regulation for 16-Speed Steps Operation
VFD Frequency Inverter Product Description:
The VFD Frequency Inverter features a range of speed regulation of 1:10 V/F, 1:100 OLVC, and 1:1000 CLVC, allowing for maximum flexibility and control over motor speed. Its torque pulsation is also well-controlled, with ≤5% pulsation ensuring smooth and consistent operation.
The control method of the VFD Frequency Inverter includes V/F, OLVC (Open-Loop Vector Control), and CLVC (Close-Loop Vector Control), providing users with a range of options to best suit their needs.
In summary, the VFD Frequency Inverter is a powerful motor VFD that offers exceptional torque precision, speed regulation, and control methods. Whether you are looking for a single or multi-drive system, this product is a top choice for any engineering VFD system.
VFD Frequency Inverter Features:
- Product Name: VFD Frequency Inverter
- Start Torque: VF: 100% (0.5Hz), OLVC: 150% (0.5Hz), CLVC: 180% (0Hz)
- Torque Lifting: 0.0％~30.0％
- Input Frequency: 50Hz/60Hz±5%
- Torque Response: ﹤5ms, Vector Control
- Oem: Yes
- High Performance VFD, Variable Frequency Drive VFD
VFD Frequency Inverter Technical Parameters:
|
Input Frequency |
50Hz/60Hz±5% |
|
Output Frequency |
0Hz~500Hz |
|
Motor Type |
Asynchronous Motor, Synchronous Motor |
|
Acceleration and Deceleration Time |
0.0s~3200.0s, 0.0min~3200.0min |
|
Range of speed regulation |
1:10 V/F, 1:100 OLVC, 1:1000 CLVC |
|
Dynamic Speed Reduction |
OLVC＜0.5%*s, CLVC＜0.3%*s |
|
Start Torque |
VF: 100% (0.5Hz), OLVC: 150% (0.5Hz), CLVC: 180% (0Hz) |
|
Unbalance Degree of Uin |
≤3% |
|
Torque Response |
﹤5ms, Vector Control |
|
Speed Regulation Precision |
OLVC 0.2%, CLVC 0.01% |
This Motor drive VFD is a single and multi drive variable frequency system, also known as a Variable Frequency Drive VFD.
VFD Frequency Inverter Applications:
The COENG HV500 variable frequency inverter has a range of speed regulation of 1:10 V/F, 1:100 OLVC, and 1:1000 CLVC. This means that it can be used in various speed control applications, and it is highly efficient. The torque precision of the product is ≤5%, and it uses vector control to ensure that the torque response is less than 5ms. The dynamic speed reduction of the product is OLVC＜0.5%*s, and CLVC＜0.3%*s, which makes it reliable and efficient.
The COENG HV500 variable frequency inverter can be used in various applications, including but not limited to:
- Conveyor belts
- Crushers
- Pumps
- Fans
- Compressors
- Extruders
- Printing machines
The product is suitable for use in industries like manufacturing, mining, and construction. It is highly efficient in controlling the speed of the motor, and it ensures that the torque response is quick. The control method of the product is V/F, OLVC (Open-Loop Vector Control), and CLVC (Close-Loop Vector Control), which makes it versatile and efficient.
Overall, the COENG HV500 variable frequency inverter is a reliable and efficient product that can be used in various applications. Its speed regulation, torque precision, and control method make it a popular choice for many industries. With its supply ability of 20000sets/year, the product is readily available in the market for purchase.
VFD Frequency Inverter Support and Services:
The VFD Frequency Inverter product technical support and services include:
- Assistance with product installation and startup
- Troubleshooting and diagnosis of product issues
- Repair and maintenance services
- Technical documentation and software updates
- Training and education on product operation and maintenance
- Customized solutions for specific customer needs
