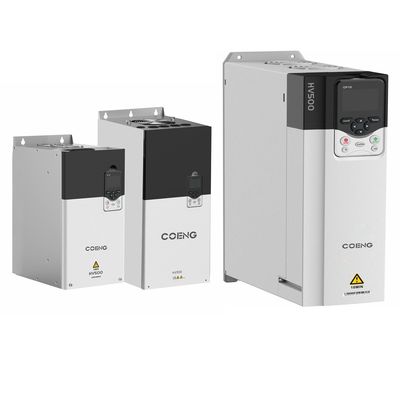

4kw 0.75 Kw Vfd Variable Frequency Inverter For Asynchronous Synchronous Motors
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV500-8 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | Asynchronous Motor, Synchronous Motor | Control Method | V/F, OLVC (Open-Loop Vector Control), CLVC (Close-Loop Vector Control) |
|---|---|---|---|
| Acceleration And Deceleration Time | 0.0s~3200.0s, 0.0min~3200.0min | Start Torque | VF: 100% (0.5Hz), OLVC: 150% (0.5Hz), CLVC: 180% (0Hz) |
| Speed Regulation Precision | OLVC 0.2%, CLVC 0.01% | Oem | Yes |
| Output Uout | 0V-Input Uin | Output Frequency | 0Hz~500Hz |
| Highlight | 4kw frequency inverter,0.75 kw vfd,0.75 kw vfd Variable Frequency Inverter |
||
Product Description
Variable Frequency Inverter for Asynchronous/Synchronous Motors with Torque Control 0Hz-500Hz Output Frequency
Variable Frequency Inverter Product Description:
Our VFD Frequency Inverter operates through V/F, OLVC (Open-Loop Vector Control), and CLVC (Close-Loop Vector Control) control methods, providing you with the options you need to control your machinery. It is compatible with both asynchronous and synchronous motors, ensuring that you can use it with any motor type.
Our VFD Frequency Inverter offers a torque response of less than 5ms, and vector control, making it highly responsive to your commands. The range of speed regulation is impressive, with 1:10 V/F, 1:100 OLVC, and 1:1000 CLVC, which means that you can fine-tune your machinery to your exact specifications.
Investing in our VFD Frequency Inverter can help you optimize your engineering VFD system by giving you the tools you need to manage your machinery. Whether you need to control the speed of your machinery, maintain a consistent level of torque, or regulate the flow of power, our Variable Frequency Drive VFD can help you achieve your goals.
Variable Frequency Inverter Features:
- Product Name: VFD Frequency Inverter
- Range of speed regulation:1:10 V/F, 1:100 OLVC, 1:1000 CLVC
- Input Frequency Accuracy:Digital: 0.01Hz,Analog: 0.01Hz
- Acceleration and Deceleration Curve: Straight, S Curve
- Torque Response: <5ms, Vector Control
- Torque Pulsation: ≤5%, Vector Control
- Keywords: Variable Frequency Converter, High Performance VFD
Variable Frequency Inverter Technical Parameters:
|
Technical Parameter |
Description |
|---|---|
|
Multiple Speed-Steps Operation |
16-Speed Steps Operation Through Control Terminals |
|
Control Method |
V/F, OLVC (Open-Loop Vector Control), CLVC (Close-Loop Vector Control) |
|
Torque Lifting |
0.0％~30.0％ |
|
Torque Response |
﹤5ms, Vector Control |
|
Oem |
Yes |
|
Motor Type |
Asynchronous Motor, Synchronous Motor |
|
Torque Precision |
≤5%, Vector Control |
|
Range of speed regulation |
1:10 V/F, 1:100 OLVC, 1:1000 CLVC |
|
Output Frequency |
0Hz~500Hz |
|
Input Frequency |
50Hz/60Hz±5% |
Variable Frequency Inverter Applications:
The COENG HV500 VFD is a versatile product that can be used in various application occasions and scenarios. It can be used in industrial machines such as pumps, fans, compressors, conveyors, and elevators. Additionally, this VFD frequency inverter is perfect for industrial automation and control systems.
The HV500 offers a wide output frequency range of 0Hz to 500Hz and a torque precision of ≤5%, which makes it ideal for high-speed and high-precision applications. The torque response of this VFD frequency inverter is less than 5ms, which ensures the accuracy and efficiency of your industrial operations. The torque pulsation is also less than 5%, which ensures a smooth and stable operation.
The COENG HV500 VFD is easy to install, operate, and maintain. It comes with a wooden case packaging and a delivery time of 10-30 working days. The payment terms are flexible and include L/C and T/T.
In conclusion, the COENG HV500 Variable Frequency Drive (VFD) is a reliable and high-performance product that is perfect for various industrial applications. Whether you need a single or multi-drive variable frequency system, the HV500 is the perfect choice for you.
Variable Frequency Inverter Support and Services:
- Installation and commissioning support
- Troubleshooting and problem-solving assistance
- Technical documentation and manuals
- Software updates and upgrades
- Repair and maintenance services
- Training and education programs for customers and partners
