1.5KW 24V Hybrid Solar Inverter with MPPT and WiFi Control
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | CM-N (PV30-500VDC) |
| Document | CM-N Series.pdf |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton, pallet |
| Delivery Time | 10-30working days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 20000piece/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 330*278*98mm | Battery Voltage | 12V/24V |
|---|---|---|---|
| Input Voltage | 230vac | OEM | Accept OEM |
| Inverter Type | Hybrid Solar Inverter | Output Type | Single, Pure Sine Wave |
| Gross Weight | 3.8kg | ||
| Highlight | 24V hybrid solar inverter,1.5KW solar inverter with MPPT,WiFi controlled solar inverter |
||
Product Description
1.5KW 24V Single Phase Hybrid Solar Inverter
Pure Sine Wave MPPT with WiFi Remote Control
Product Specifications
| Attribute | Value |
|---|---|
| Size | 330*278*98mm |
| Battery Voltage | 12V/24V |
| Input Voltage | 230VAC |
| OEM | Accept OEM |
| Inverter Type | Hybrid Solar Inverter |
| Output Type | Single, Pure Sine Wave |
| Gross Weight | 3.8kg |
Key Features
- Battery Wake-up Function
- Pure Sine Wave output for clean power
- PV Input 500Vdc Max capacity
- Built-in MPPT 60A-100A solar charger
- Detachable dust cover for harsh environments
- Optional WiFi remote monitoring
- Multiple output priority modes: UTL, SOL, SBU, SUB
- EQ function to optimize battery performance and extend lifecycle
Model Specifications
| MODEL | CM1500-12N | CM1500-24N | CM2500-24N | CM3500-24N |
|---|---|---|---|---|
| Capacity | 1500VA/1500W | 1500VA/1500W | 2500VA/1500W | 3500VA/1500W |
| Parallel Capability | NO | NO | NO | NO |
| Lithium Battery Activation | NO | NO | NO | NO |
| Battery Wake-up Function | YES | YES | YES | YES |
| Battery Voltage | 12VDC | 24VDC | 24VDC | 24VDC |
| Solar Charger TYPE | MPPT | MPPT | MPPT | MPPT |
| Communication Interface | RJ45 For WiFi | RJ45 For WiFi | RJ45 For WiFi | RJ45 For WiFi |
| Nominal Voltage | 230VAC | 230VAC | 230VAC | 230VAC |

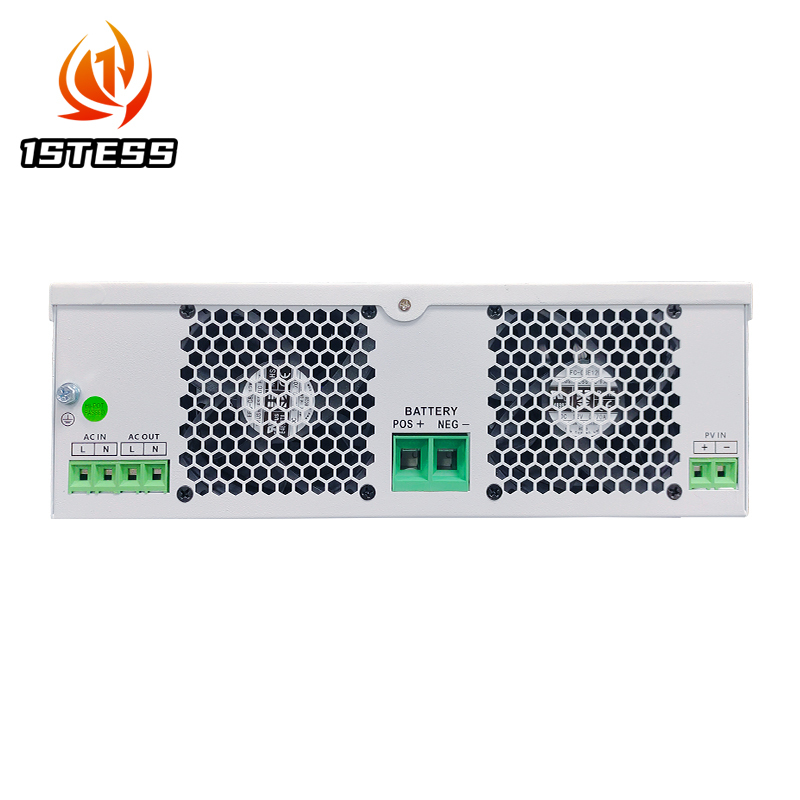

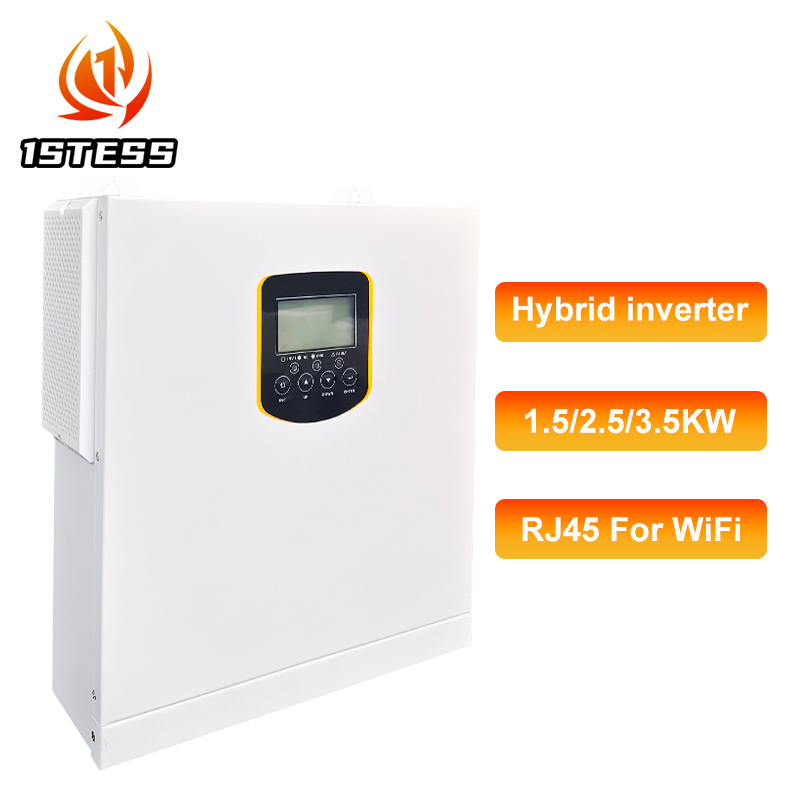

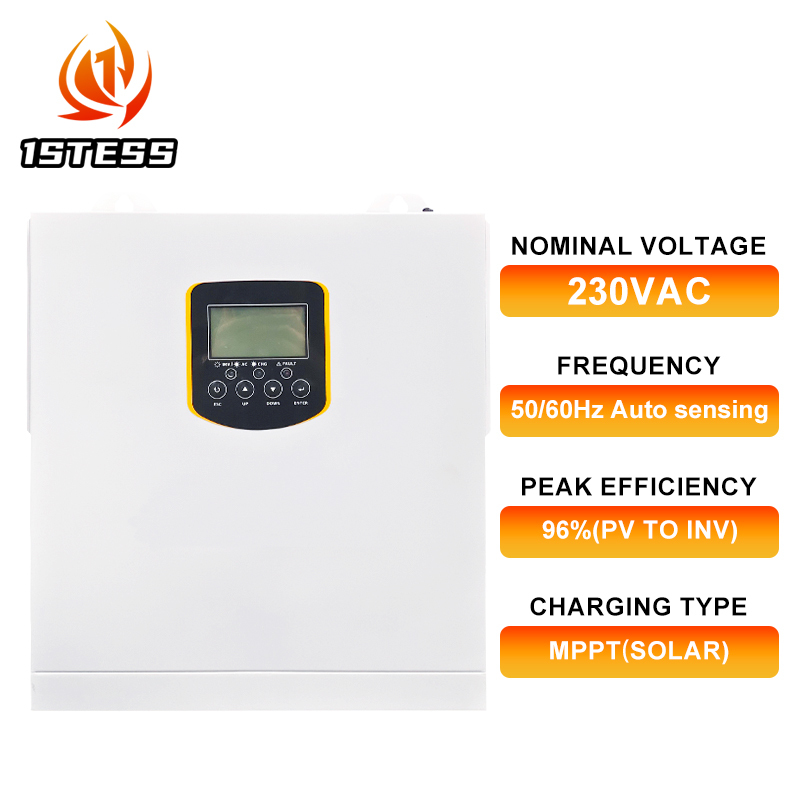

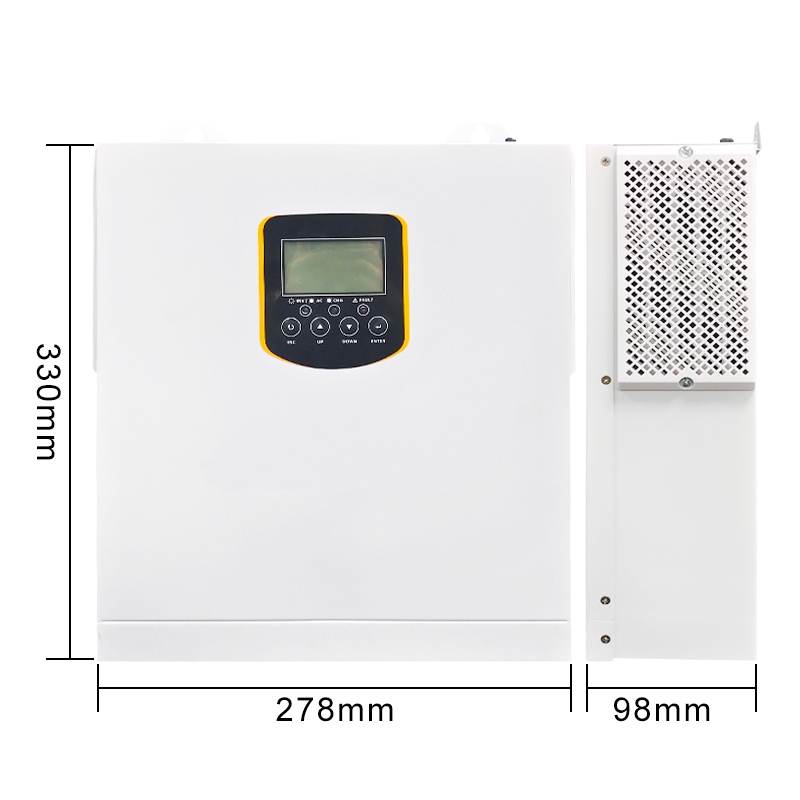

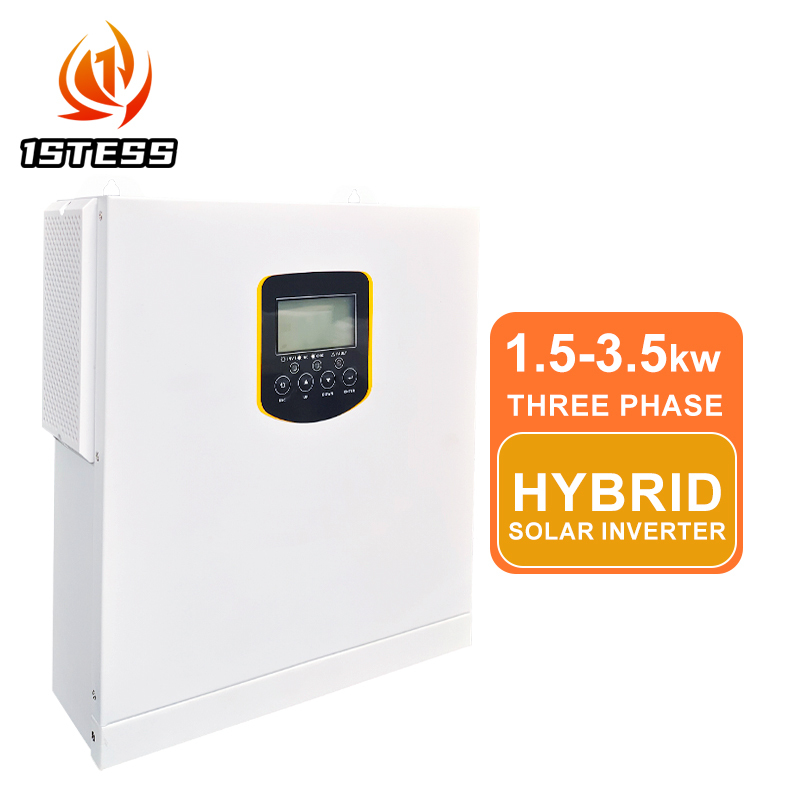

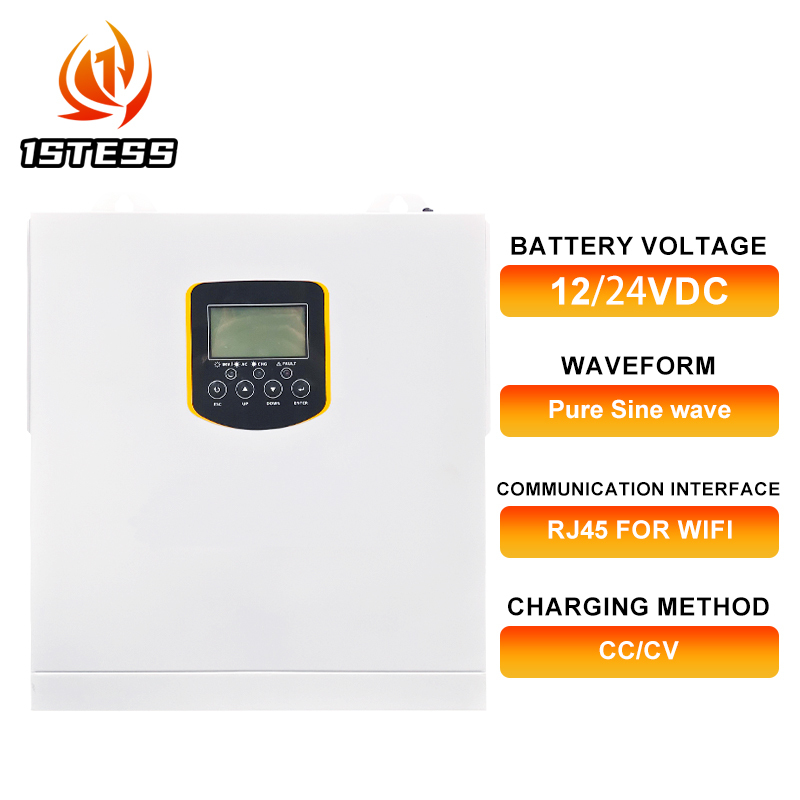

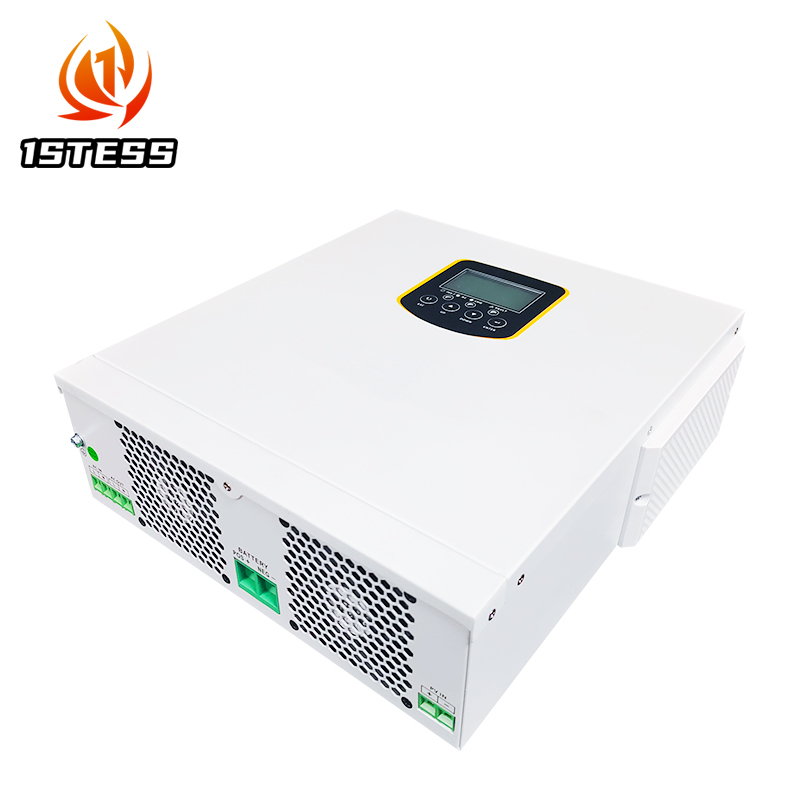

Product Images
Grid-Tied Inverter Technology
This grid-connected inverter is a critical component in solar power systems that connects photovoltaic (PV) panels directly to the utility grid. It converts the direct current (DC) generated by solar panels into alternating current (AC) that can be used by household appliances or fed back into the grid.
Advanced Features
- Grid Connection: Synchronizes with the utility grid, ensuring output frequency and voltage match grid standards
- Maximized Energy Harvesting: Utilizes Maximum Power Point Tracking (MPPT) technology to optimize energy extraction
- Net Metering: Enables credit for excess energy fed back into the grid, reducing electricity bills
- Safety Features: Includes anti-islanding protection for safe operation during grid outages
- Compact Design: Lightweight construction for easy installation in residential or commercial settings
- Monitoring Capabilities: Track system performance and energy production through mobile apps or web interfaces
