12V 1.5kW Hybrid Solar Inverter MPPT Pure Sine Wave
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | CM-N (PV30-500VDC) |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton, pallet |
| Delivery Time | 10-30working days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 20000piece/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 330*278*98mm | Battery Voltage | 12V/24V |
|---|---|---|---|
| Input Voltage | 230vac | OEM | Accept OEM |
| Inverter Type | Hybrid Solar Inverter | Output Type | Single, Pure Sine Wave |
| Gross Weight | 3.8kg | ||
| Highlight | 12V hybrid solar inverter MPPT,1.5kW pure sine wave inverter,solar hybrid inverter with warranty |
||
Product Description
12V/24V Hybrid Inverter with MPPT - Pure Sine Wave Output
Product Specifications
| Attribute | Value |
|---|---|

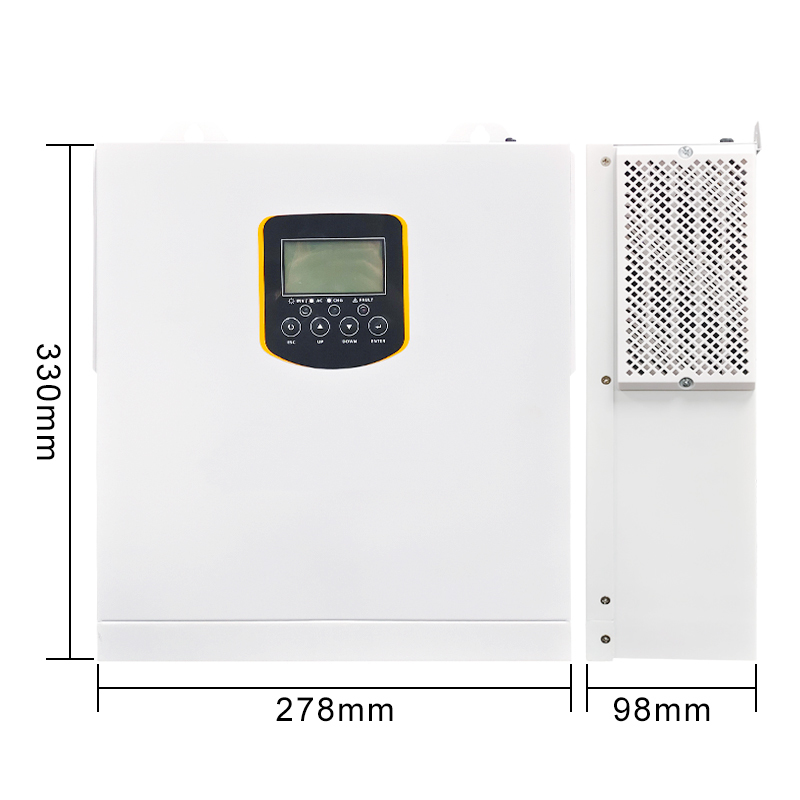

| Size | 330×278×98mm |
| Battery Voltage | 12V/24V |
| Input Voltage | 230VAC |
| OEM | Accept OEM |
| Inverter Type | Hybrid Solar Inverter |
| Output Type | Single, Pure Sine Wave |
| Gross Weight | 3.8kg |
Key Features
- Battery Wake-up Function
- Pure Sine Wave output for clean power
- High PV Input (500Vdc Max)
- Built-in MPPT (60A-100A)
- Detachable dust cover for harsh environments
- Optional WiFi remote monitoring
- Multiple output priority modes: UTL, SOL, SBU, SUB
- EQ function to optimize battery performance and extend lifecycle
Model Comparison
| MODEL | CM1500-12N | CM1500-24N | CM2500-24N | CM3500-24N |
|---|---|---|---|---|
| Capacity | 1500VA/1500W | 1500VA/1500W | 2500VA/1500W | 3500VA/1500W |
| Parallel Capability | NO | NO | NO | NO |
| Lithium Battery Activation | NO | NO | NO | NO |
| Battery Wake-up Function | YES | YES | YES | YES |
| Battery Voltage | 12VDC | 24VDC | 24VDC | 24VDC |
| Solar Charger TYPE | MPPT | MPPT | MPPT | MPPT |
| Communication Interface | RJ45 For WiFi | RJ45 For WiFi | RJ45 For WiFi | RJ45 For WiFi |
| Nominal Voltage | 230VAC | 230VAC | 230VAC | 230VAC |

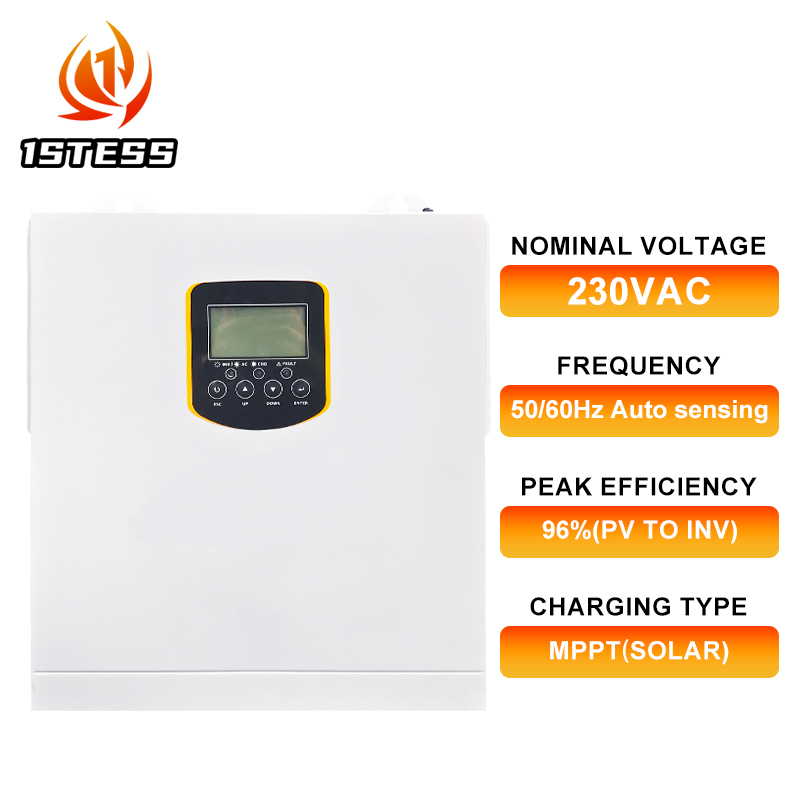

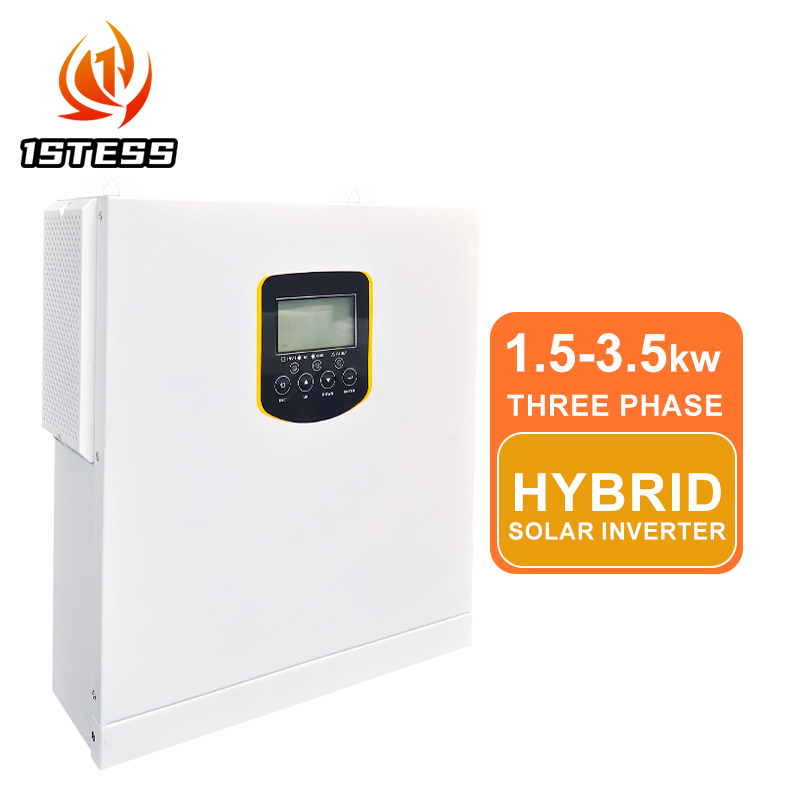

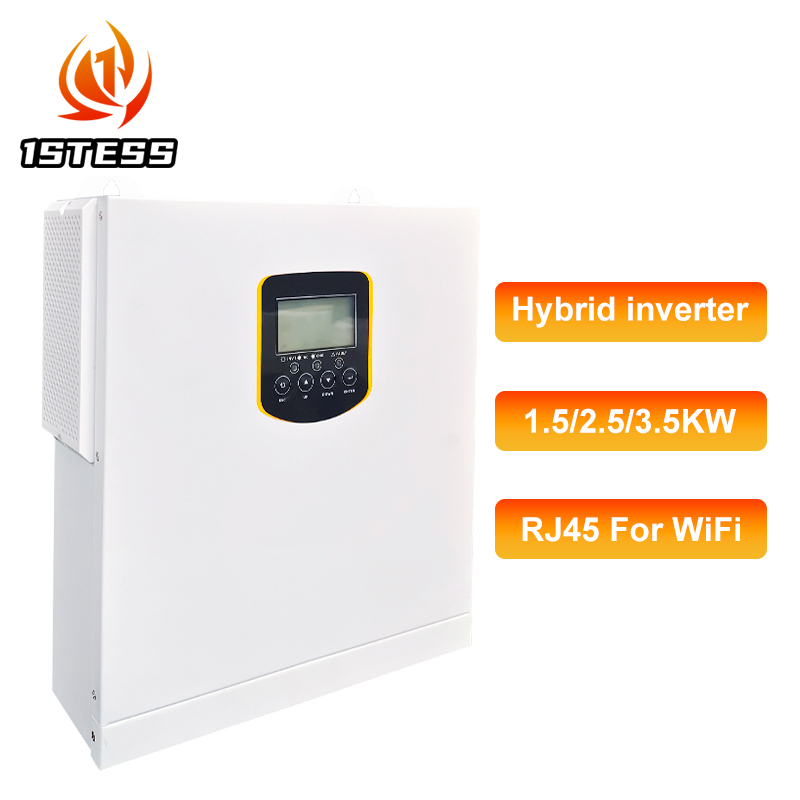

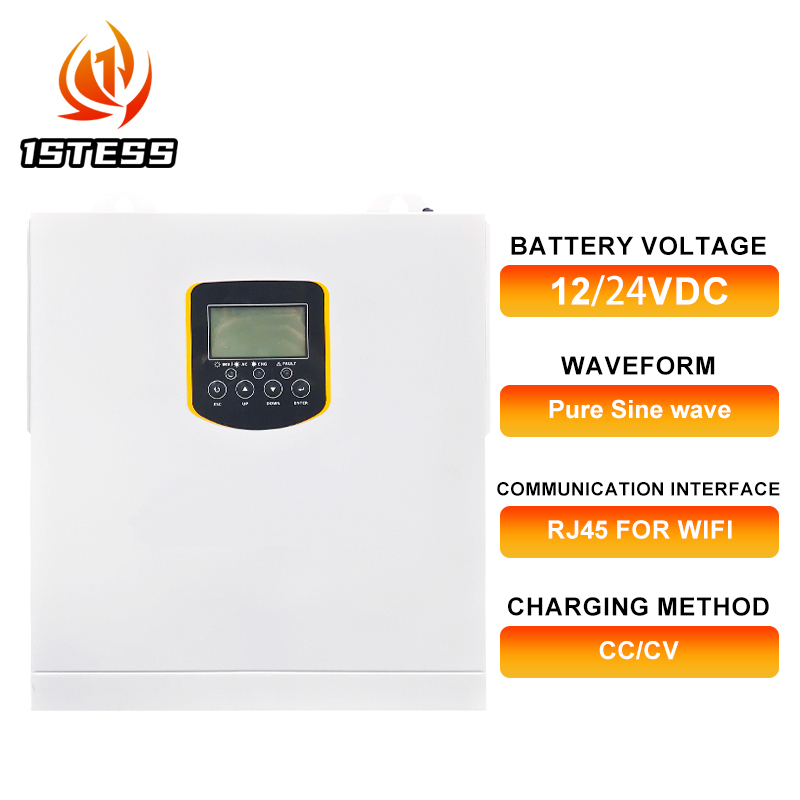

Product Images
Grid-Tied Inverter Technology
This hybrid inverter serves as a critical component in solar power systems, connecting photovoltaic (PV) panels to both battery storage and the utility grid. It efficiently converts DC power from solar panels into clean AC power for household use or grid feedback.
- Grid Synchronization: Matches output frequency and voltage with utility standards
- Optimized Energy Harvesting: Advanced MPPT technology maximizes solar panel output
- Net Metering Ready: Supports energy credit systems for excess power generation
- Safety Compliance: Includes anti-islanding protection and other safety mechanisms
- Compact & Durable: Space-saving design built for residential and commercial installations
- Remote Monitoring: Optional WiFi connectivity for performance tracking via mobile/web apps
