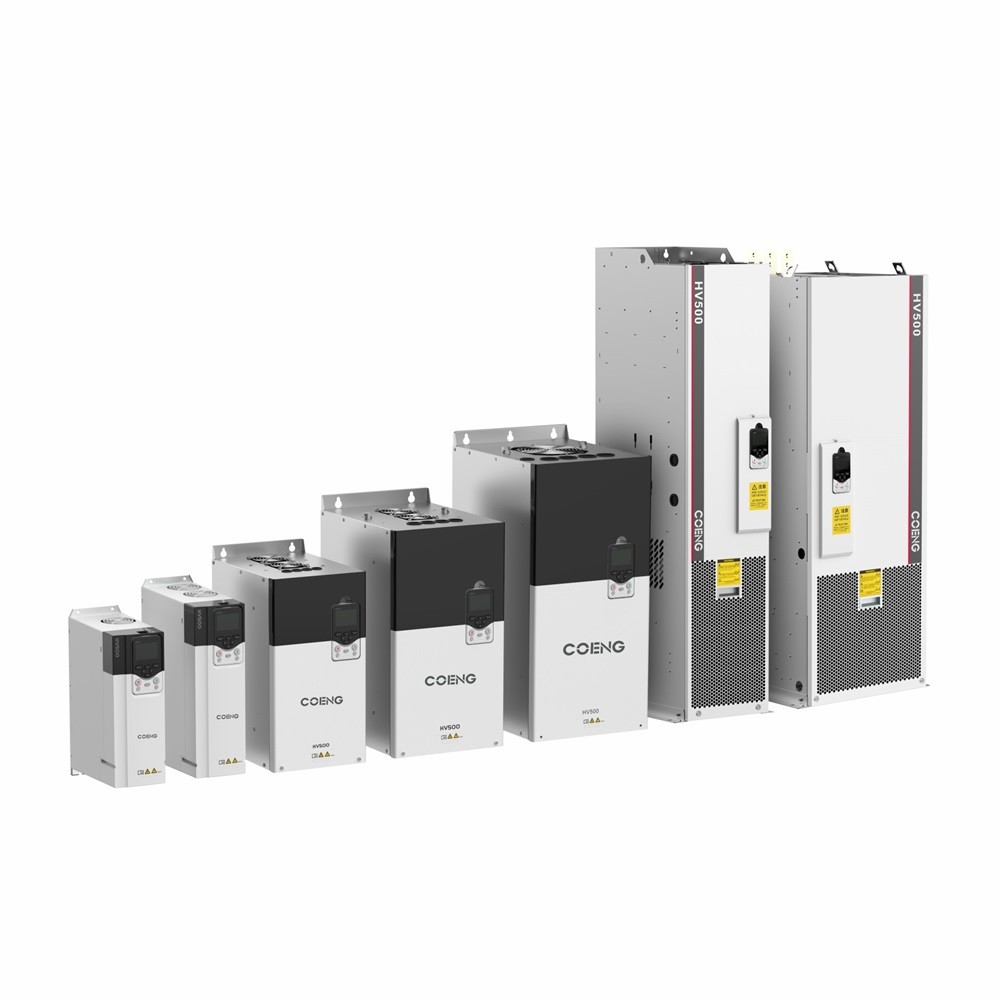

Torque Lifting VFD Frequency Inverter For 16-Speed Steps 60Hz
| Place of Origin | China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | HV500-11 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20000sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Torque Lifting | 0.0％~30.0％ | Multiple Speed-Steps Operation | 16-Speed Steps Operation Through Control Terminals |
|---|---|---|---|
| Input Frequency | 50Hz/60Hz±5% | Acceleration And Deceleration Curve | Straight, S Curve |
| Oem | Yes | Motor Type | Asynchronous Motor, Synchronous Motor |
| Range Of Speed Regulation | 1:10 V/F, 1:100 OLVC, 1:1000 CLVC | Input Uin | 200V (-15%) ~240V (+10%) 3Phase , 380V (-15%) ~480V (+10%) 3Phase, 500V (-15%) ~690V (+10%) 3Phase |
| Highlight | Torque Lifting VFD Frequency Inverter,Frequency Inverter for 16-Speed Steps,60Hz Frequency Inverter |
||
Product Description
Torque Lifting VFD Frequency Inverter for 16-Speed Steps Operation Through Control Terminals
Torque Lifting VFD Frequency Inverter Product Description:
With the HD2000 engineering VFD setting the standard for control performance, the HV500 is the ideal option for medium/high-end industrial and single-drive applications.
Boasting products concepts of universality, user-friendliness, and durability, this high-performance VFD has earned a reputation in industries ranging from metallurgy and papermaking to mining and shore power.
Having proven itself in the most demanding environments, the HV500 excels in lifting equipment, chemical, textile, and energy storage industries, among others.
Torque Lifting VFD Frequency Inverter Features:
- Product Name: VFD Frequency Inverter
- Range of speed regulation: 1:10 V/F, 1:100 OLVC, 1:1000 CLVC
- Torque Response: <5ms, Vector Control
- Input Frequency: 50Hz/60Hz±5%
- Control Method: V/F, OLVC (Open-Loop Vector Control), CLVC (Close-Loop Vector Control)
- Input Frequency Accuracy: Digital: 0.01Hz, Analog: 0.01Hz
- Variable frequency Inverter
- Single and multi drive variable frequency system
- High Performance VFD
Torque Lifting VFD Frequency Inverter Technical Parameters:
|
Control and Performance |
Value |
|---|---|
|
Motor Compatibility |
Asynchronous and Synchronous motors |
|
Control Methods |
V/F, Open-Loop Vector Control (OLVC), |
|
|
Close-Loop Vector Control (CLVC) |
|
Speed Regulation Range |
V/F: 1:10, OLVC: 1:100, CLVC: 1:1000 |
|
Start Torque |
VF: ≤100%, OLVC: ≤150%, CLVC: ≤180% |
|
Torque Precision |
≤5% |
|
Torque Pulsation |
≤5% |
|
OLVC Speed Regulation Precision |
≤0.2% |
|
CLVC Speed Regulation Precision |
≤0.01% |
|
Torque Response |
<5ms |
|
Dynamic Speed Reduction (OLVC) |
<0.5%*s |
|
Dynamic Speed Reduction (CLVC) |
<0.3%*s |
|
Acceleration and Deceleration Time Range |
0.0s to 3200.0s or 0.0min to 3200.0min |
|
Torque Lifting Range |
0.0% to 30.0% |
|
Maximum Heavy Load |
150% for 1min/5min |
|
Maximum Light Load |
110% for 1min/5min |
|
V/F Curve Options |
Multiple options available |
|
Input Frequency Accuracy |
0.01Hz for digital and analog inputs |
Torque Lifting VFD Frequency Inverter Applications:
The HV500 VFD is a reliable and efficient Variable Frequency Converter that is widely used in various industrial sectors, such as textile, chemical, mining, metallurgy, and many others. The product is designed to control the speed of AC motors in order to achieve optimal performance and energy efficiency.
The COENG HV500 VFD is suitable for various application occasions and scenarios. It can be used to control pumps, fans, compressors, conveyors, and other types of machinery that require precise speed control. The product is also ideal for applications that require torque lifting between 0.0％ to 30.0％.
The HV500 VFD has a speed regulation precision of OLVC 0.2% and CLVC 0.01%, which ensures accurate and stable speed control. The product offers three different control methods, including V/F, OLVC (Open-Loop Vector Control), and CLVC (Close-Loop Vector Control), which makes it flexible and versatile for different applications.
The output frequency range of the HV500 VFD is 0Hz~500Hz, which is suitable for a wide range of motor speed control requirements. The product has a minimum order quantity of 1, and the packaging details include a wooden case for safe transportation. The delivery time is between 10-30 working days, and the payment terms include L/C and T/T. Additionally, the HV500 VFD has an OEM option available for customers who require customized products.
In conclusion, the COENG HV500 VFD is a reliable and efficient Variable Frequency Drive that meets the needs of various industrial applications. With its superior quality, flexible control methods, and accurate speed control, the HV500 VFD is an excellent investment for any business that requires motor control solutions.
Torque Lifting VFD Frequency Inverter Support and Services:
- Expert technical assistance from experienced engineers
- Inverter start-up and commissioning services
- Troubleshooting and diagnostics support
- Repair and maintenance services
- Training and education programs for customers and employees
- Software and firmware updates to ensure product performance and compatibility with new technologies
