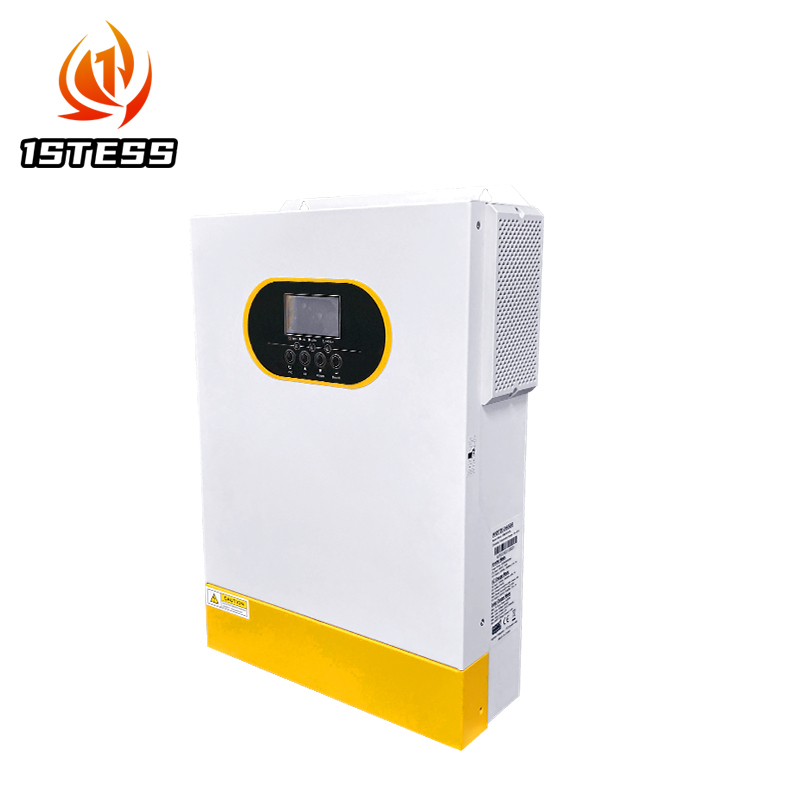

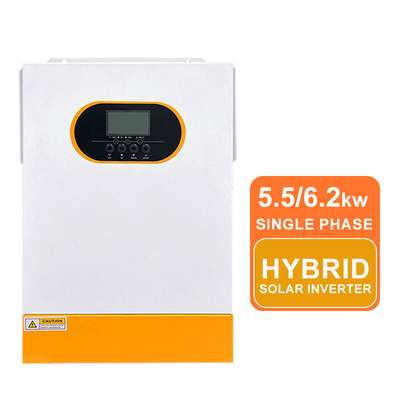

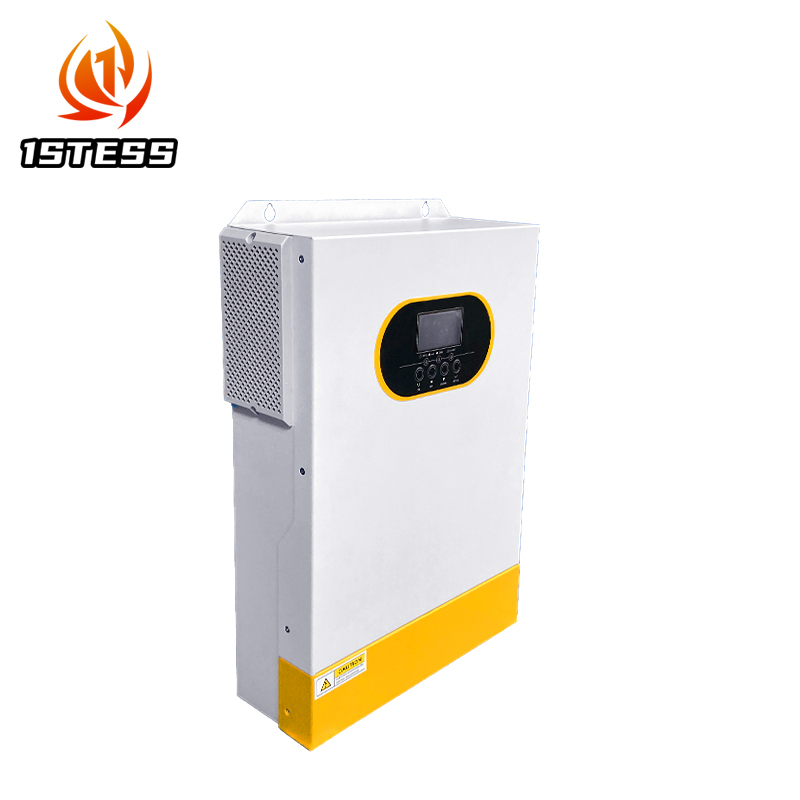

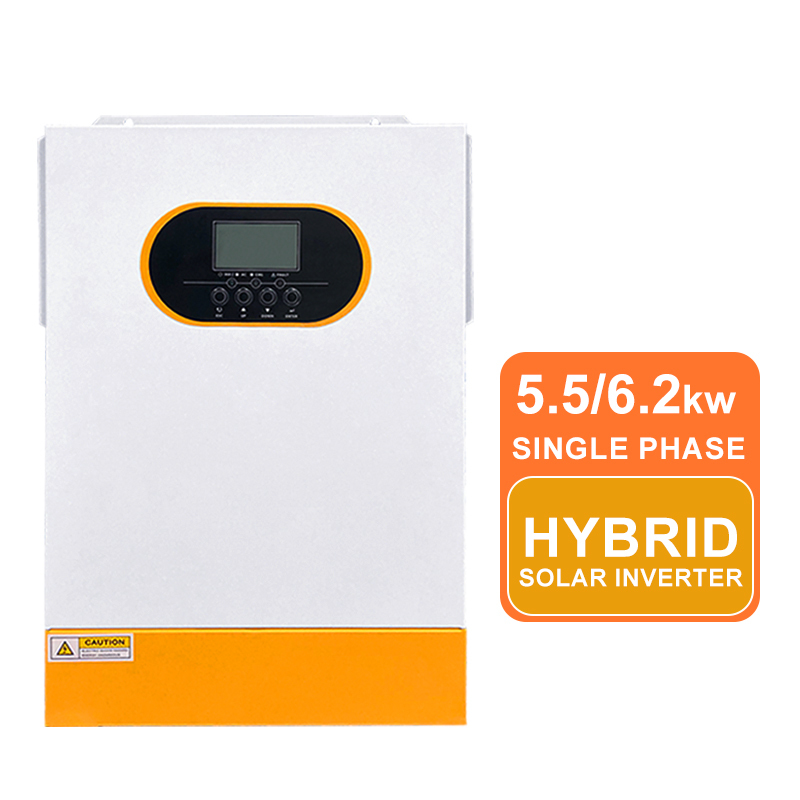

5.5kW 48V Hybrid Solar Inverter Pure Sine Wave WiFi Optional
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | COENG |
| Certification | CE, IEC |
| Model Number | EM (PV60-500VDC) 6200 48L |
| Minimum Order Quantity | 1 |
| Packaging Details | Carton, pallet |
| Delivery Time | 10-30working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 20000piece/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 438*295*105mm | Battery Voltage | 24V/48V |
|---|---|---|---|
| Input Voltage | 230vac | OEM | Accept OEM |
| Inverter Type | Hybrid Solar Inverter | Output Type | Single, Pure Sine Wave |
| Gross Weight | 9kg | ||
| Highlight | 5.5kW hybrid solar inverter,48V pure sine wave inverter,WiFi solar inverter with warranty |
||
Product Description
Product Features.
1. BLithium battery activation function by PV or Utility
2. Compatible work with lifepo4 battery via Rs485
3. PVInput 500Vdc Max
4. Built-in MPPT60A/100A/120A
5. Detachable dust coverforharsh environment
6. Wifi remote monitoring optional
7.Support multiple output priority:UTL,SOL,SBU,SUB
8.EQ function to optimize battery performance and extend lifecycle
|
|
Key Product Selling Points
-
Lithium Battery Compatibility & Activation
-
Activates deeply discharged lithium batteries via PV (all models) or utility power (EM2500+).
-
RS485 communication for seamless integration with LiFePO₄ batteries.
-
EQ function optimizes battery lifespan.
-
-
Flexible Operation Modes
-
No-Battery Mode: Directly powers loads from PV/solar, reducing dependency on batteries.
-
Multiple Output Priorities: Configurable modes (UTL/Utility, SOL/Solar, SBU/Solar-Battery-Utility, SUB/Solar-Utility-Battery).
-
-
High Efficiency & Reliability
-
96% peak efficiency (PV to AC).
-
Pure sine wave output (compatible with sensitive electronics).
-
Overload protection (140% load for 5s, 110–140% for 10s).
-
-
Robust Solar Charging
-
Wide PV Voltage Range: 60–500V DC (suits diverse panel configurations).
-
High MPPT Current: Up to 120A (EM6200), supporting large solar arrays.
-
Max PV Power: 6.5kW (EM6200).
-
-
Grid Resilience
-
Ultra-fast transfer time (10ms for computers, 20ms for appliances).
-
Wide AC input range (90–280V) for unstable grids.
-
-
Durability & Connectivity
-
Detachable dust cover for harsh environments.
-

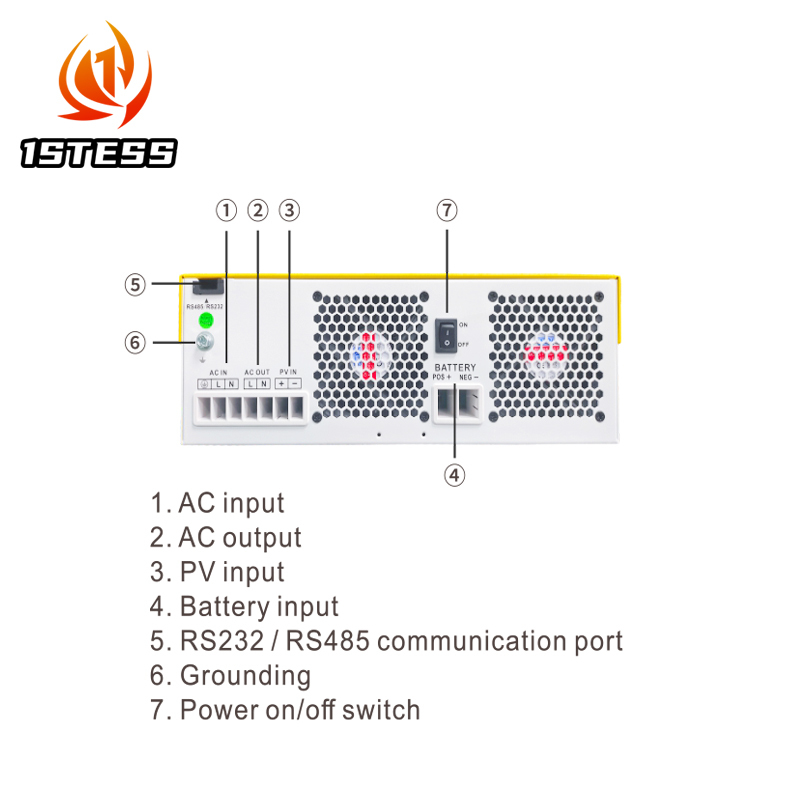

Optional WiFi monitoring and RS232/RS485 ports for remote management.
-
-
Universal Compatibility
-
50/60Hz auto-sensing, 220–230V output, and global voltage tolerance.
-
Target Regions/Countries
1. Off-Grid/Rural Areas:
-
Africa (e.g., Nigeria, Kenya, South Africa): Unstable grids, high solar potential.
-
Southeast Asia (e.g., Philippines, Indonesia, Vietnam): Remote islands/farming communities.
-
South America (e.g., Peru, Brazil): Amazon regions with limited grid access.
2. High Solar-Irradiation Regions:
-
Middle East (Saudi Arabia, UAE): High PV efficiency with 500V input.
-
Australia/Outback: Large solar farms benefiting from MPPT 120A.
3. Areas with Frequent Power Outages:
-
South Asia (India, Pakistan, Bangladesh): Fast transfer time (10ms) protects electronics.
-
Caribbean Islands (e.g., Haiti, Dominican Republic): Hurricane-prone zones needing backup.
4. Lithium Battery-Adopting Markets:
-
Europe (Germany, Netherlands): Advanced LiFePO₄ compatibility.
-
North America (USA/Canada off-grid homes): EQ function extends battery life.
5. Harsh Environments:
-
Desert Climates (Middle East, Australia): Dust-proof design.
-
Tropical Zones (Southeast Asia, Central America): 95% humidity tolerance.
Why This Product Stands Out
-
Cost Savings: No-battery mode reduces upfront investment.
-
Future-Proof: Supports lithium batteries (growing global trend).
-
Versatility: Handles solar, grid, and batteries in one system.
-
Low Maintenance: Detachable dust cover + high-temperature operation (up to 50°C).
